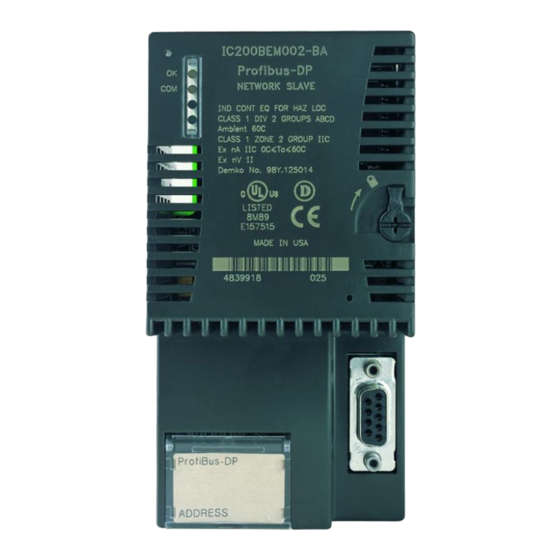

- Page 1 IMPORTANT PRODUCT INFORMATION GFK-1538H Nov 2019 PACSystems VersaMax PROFIBUS NETWORK SLAVE MODULE (IC200BEM002)
- Page 2 It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for trained personnel familiar with the Emerson products referenced herein.
-
Page 3: Product Description
GFK-1538H Nov 2019 Product Description Product Version IC200BEM002-PA Firmware version: 1.00 Firmware upgrades: The Network Slave Module (NSM) firmware resides in FLASH memory. This firmware may be upgraded with future versions via serial download from an appropriate personal computer connected to the serial port of the headend device. - Page 4 GFK-1538H Nov 2019 3. Connect the communications bus to the connector on the front of the Network Slave Module. (Refer to the heading Bus Installation Guidelines for detailed bus installation instructions.) 4. Remove the connector cover on the right-hand side of the Communications Carrier. Do not discard this cover; you will need to install it on the last carrier.
-
Page 5: Bus Length
GFK-1538H Nov 2019 Bus Installation Guidelines The proper cable for a Profibus network is a shielded twisted pair cable. Profibus cable is sold as "Profibus Network Cable". The twisted pair cable consists of a Green and a Red wire. Below are some of the cable characteristics of Profibus cable. - Page 6 GFK-1538H Nov 2019 Bus Connectors and Termination The Network Slave Module provides the Profibus standard female 9-pin D subminiature connectors. Cable connectors are available from most fieldbus parts distributors as "Profibus 9-pin D connectors". These connectors provide termination resistors and a switch on the connector to enable/disable termination. Connectors with and without termination are also available.
-
Page 7: Product Revision History
Product Revision History Revision Date Description Following Emerson’s acquisition of this product, changes have been made to apply appropriate branding and registration of the product with required certification agencies. IC200BEM002-PA NOV 2019 No changes to material, process, form, fit or functionality. - Page 8 Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice.
