The 7206 VXR NPE-400 Router
Figure 3
Refer to
Table 2
LED
ENABLED
BOOT
ERROR
All of these physical interfaces are separated into the logical interfaces from FIPS as described in
Table 3.
Cisco 7206 VXR Router with ISA Security Policy
6

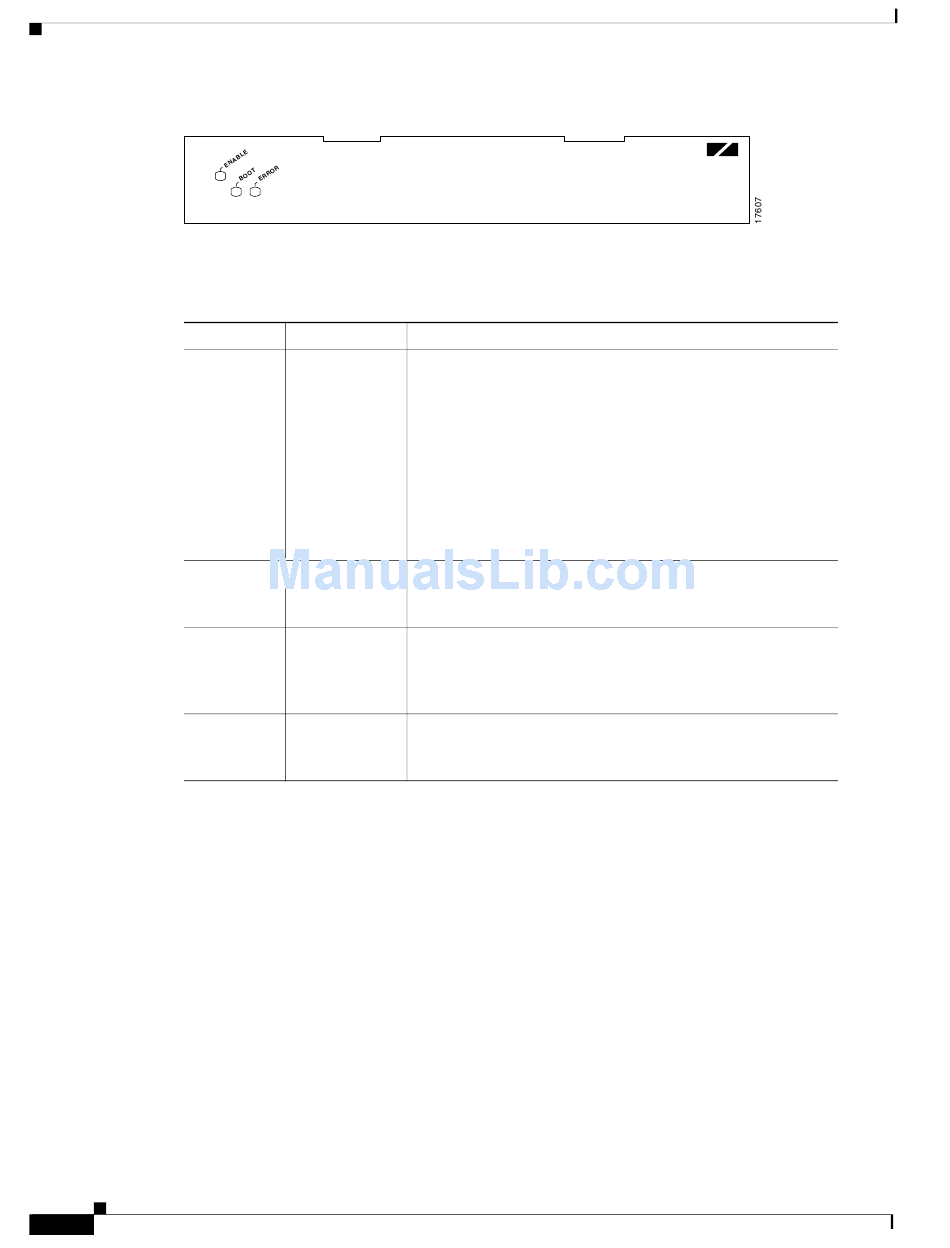

LEDs for ISA Crypto Card
Table 2 for further description of the ISA LEDs
ISA LEDs and Descriptions
Indication Description
Green Indicates the ISA is powered up. After system initialization,
the enabled LED goes on to indicate that power is received
and that the ISA is enabled for operation. All the following
conditions must be met before the enabled LED goes on:
•
•
If either of these conditions is not met, or if the router
initialization fails, the enabled LED does not go on.
Amber Indicates the ISA is booting. This amber LED remains on
while the ISA is in the boot process or when a packet is being
encrypted or decrypted.
Pulse Amber Indicates the ISA is operating. After successfully booting, the
boot LED pulses in a "heartbeat" pattern to indicate that the
ISA is operating. As crypto traffic increases, the nominal
level of this LED increases in proportion to the traffic level.
Amber Indicates an error has occurred. This amber LED goes on to
indicate that an error was found in either the encryption
function or the compression function. It is normally off.
The ISA is correctly connected to the backplane and
receiving power.
The system bus recognizes the ISA.
ENCRYPT/COMP
SA-ISA
