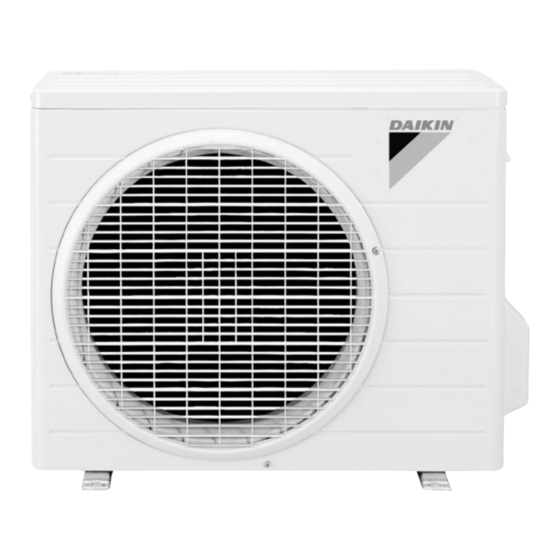

- Page 1 Si011414E REMOVAL PROCEDURE S E R V I C E M A N U A L 3.5 kW Class Outdoor Unit Non-Inverter Pair Type...
- Page 2 Service Manual Removal Procedure Outdoor Unit Cooling Only RNE35LV1 RNE35MV1 RNE35MV14 RNE35MV1V9...
-
Page 3: Table Of Contents
Si011414E Table of Contents 1. Outer Panels ...................2 2. Outdoor Fan / Fan Motor.................4 3. Electrical Components / Partition Plate...........6 4. Sound Blanket..................9 5. Capillary Tube ..................10 6. Compressor...................12 Note: The illustrations may be slightly different depending on the model. Removal Procedure... -
Page 4: Outer Panels
Outer Panels Si011414E 1. Outer Panels Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the screw of the stop valve cover. Slide the stop valve cover downward and remove it. - Page 5 Si011414E Outer Panels Step Procedure Points Unfasten the 2 left side hooks, and then the 2 right side hooks. Remove the front panel. Front panel (R21346) Press the 2 projections Rear side from the rear side and rotate the discharge grille to the left to Hook unfasten the 6 hooks.
-
Page 6: Outdoor Fan / Fan Motor
Outdoor Fan / Fan Motor Si011414E 2. Outdoor Fan / Fan Motor Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the nut and Nut size: M6 remove the outdoor fan. - Page 7 Si011414E Outdoor Fan / Fan Motor Step Procedure Points Remove the screw and When reassembling, fit the 2 Fan motor fixing frame remove the fan motor lower hooks into the bottom fixing frame. frame. (R10460) (R21350) Unfasten the 2 hooks Fan motor lead wire on the fan motor fixing frame and release the...
-
Page 8: Electrical Components / Partition Plate
Electrical Components / Partition Plate Si011414E 3. Electrical Components / Partition Plate Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the screw of the wire fixture. Unfasten the hook and remove the wire fixture. - Page 9 Si011414E Electrical Components / Partition Plate Step Procedure Points Slide the right side When reassembling, make panel upward to sure to fit the rear hook. Hook unfasten the 2 hooks. Hook Remove the right side panel. (R21358) Hook (R21356) Pull out the 2 terminals To compressor (C): blue To capacitor (C): black (back-blue, back-black)
- Page 10 Electrical Components / Partition Plate Si011414E Step Procedure Points Loosen the 2 screws of the capacitor fixing band. Capacitor Remove the capacitor. Capacitor fixing band (R21361) Remove the 2 screws When reassembling, fit the and lift up the partition partition plate to the hook at plate to remove it.
-
Page 11: Sound Blanket
Si011414E Sound Blanket 4. Sound Blanket Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Untie the 2 strings and pull out the sound blanket. Sound blanket (R21364) Since the piping ports on the sound blanket are torn... -
Page 12: Capillary Tube
Capillary Tube Si011414E 5. Capillary Tube Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine. - Page 13 Si011414E Capillary Tube Step Procedure Points Disconnect the R (red) C (blue) compressor lead wires and remove the gasket. S (yellow) Gasket (R21367) Remove the sheets of Capillary tube putty. Putty Heat up the 2 brazed parts and remove the capillary tube.
-
Page 14: Compressor
Compressor Si011414E 6. Compressor Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine. - Page 15 Si011414E Compressor Step Procedure Points Disconnect the R (red) C (blue) compressor lead wires and remove the gasket. S (yellow) Gasket (R21367) Remove all sheets of the putty. Putty (R21369) Heat up the brazed part of the discharge side pipe and disconnect it. Brazed part Heat up the brazed part of discharge...
- Page 16 Revision History Month / Year Version Revised contents 03 / 2015 Si011414E First edition...
- Page 17 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
