TABLE OF CONTENTS
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 4
5 Wiring Connection Diagram ---------------------------------- 9
6 Schematic Diagram ---------------------------------------------10
7 Exploded View and Replacement Parts List -----------11
Model No.
INDONESIA
PAGE
© Panasonic Electric Works (Thailand) Co., Ltd.
2011. All rights reserved. Unauthorized copying and
distribution is a violation of law.

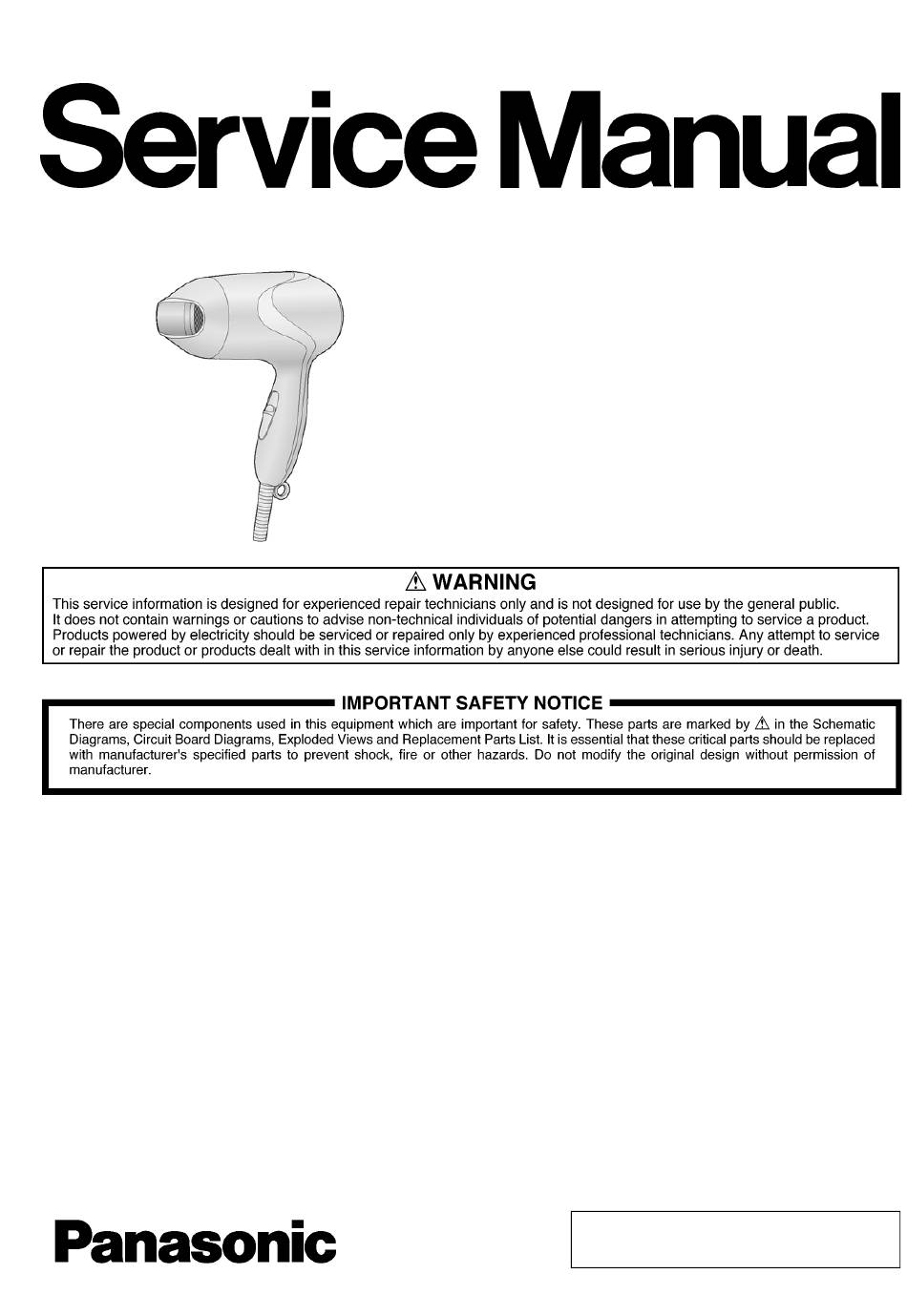

Order Number PEWT1107A23CE
Hair Dryer
EH-ND12
EH-ND13
PAGE
Advertisement
Related Manuals for Panasonic EH-ND12
Summary of Contents for Panasonic EH-ND12
-
Page 1: Table Of Contents
4 Disassembly and Assembly Instructions ---------------- 4 5 Wiring Connection Diagram ---------------------------------- 9 6 Schematic Diagram ---------------------------------------------10 7 Exploded View and Replacement Parts List -----------11 © Panasonic Electric Works (Thailand) Co., Ltd. 2011. All rights reserved. Unauthorized copying and distribution is a violation of law. -
Page 2: Warning
1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long. -
Page 3: Troubleshooting Guide
3 Troubleshooting Guide Refer to WIRING CONNECTION DIAGRAM. -
Page 4: Disassembly And Assembly Instructions
4 Disassembly and Assembly Instructions 4.1. Disassembly instruction 1. Remove 1 torque screw from Housing B by using torque head driver as shown in Figure 1. 2. Remove 3 hooks of Housing B from Housing A by using flared tip screw driver as shown in Figure 2. 3. - Page 5 4.2. Assembly instruction CAUTION: When soldering lead wires on the main switch, location and orientation of lead wires must be as shown in Fig- ure 3. 1. Assemble Heater B/K into slots of Motor B/K as shown in Figure 4. 2.
- Page 6 3. Insert the Lead wires between the guide post of Air flow regulator, and align Heater insulator slot and lead wires as shown in Figure 6. 4. Put Air flow ass'y B/K into Housing B and aligning all lead wires as shown in Figure 7.
- Page 7 5. Set Air outlet Grill to Housing A by aligning slot of Air outlet grill and Housing A as shown in Figure 8. 6. Assemble Air inlet grill into Housing B by aligning mark of Air inlet grill and mark of Housing B as shown in Figure 9. 7.
- Page 8 8. Fasten 1 torque screw as shown in Figure 11.
-
Page 9: Wiring Connection Diagram
5 Wiring Connection Diagram... -
Page 10: Schematic Diagram
6 Schematic Diagram... -
Page 11: Exploded View And Replacement Parts List
7 Exploded View and Replacement Parts List Model No. : EH-ND12 Exploded View for EH-ND12... - Page 12 Model No. : EH-ND12 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks EH-ND12 EHND12SNZPW SET NOZZLE EHND12HSAPW HOUSING A EHND12AOGW AIR OUTLET GRILL EHND12MH4B2W MOTOR HEATER BLOCK 1 B2-PLUG,INDONESIA EHND12HSBP4W HOUSING B EHND12AIGPW AIR INLET GRILL...
