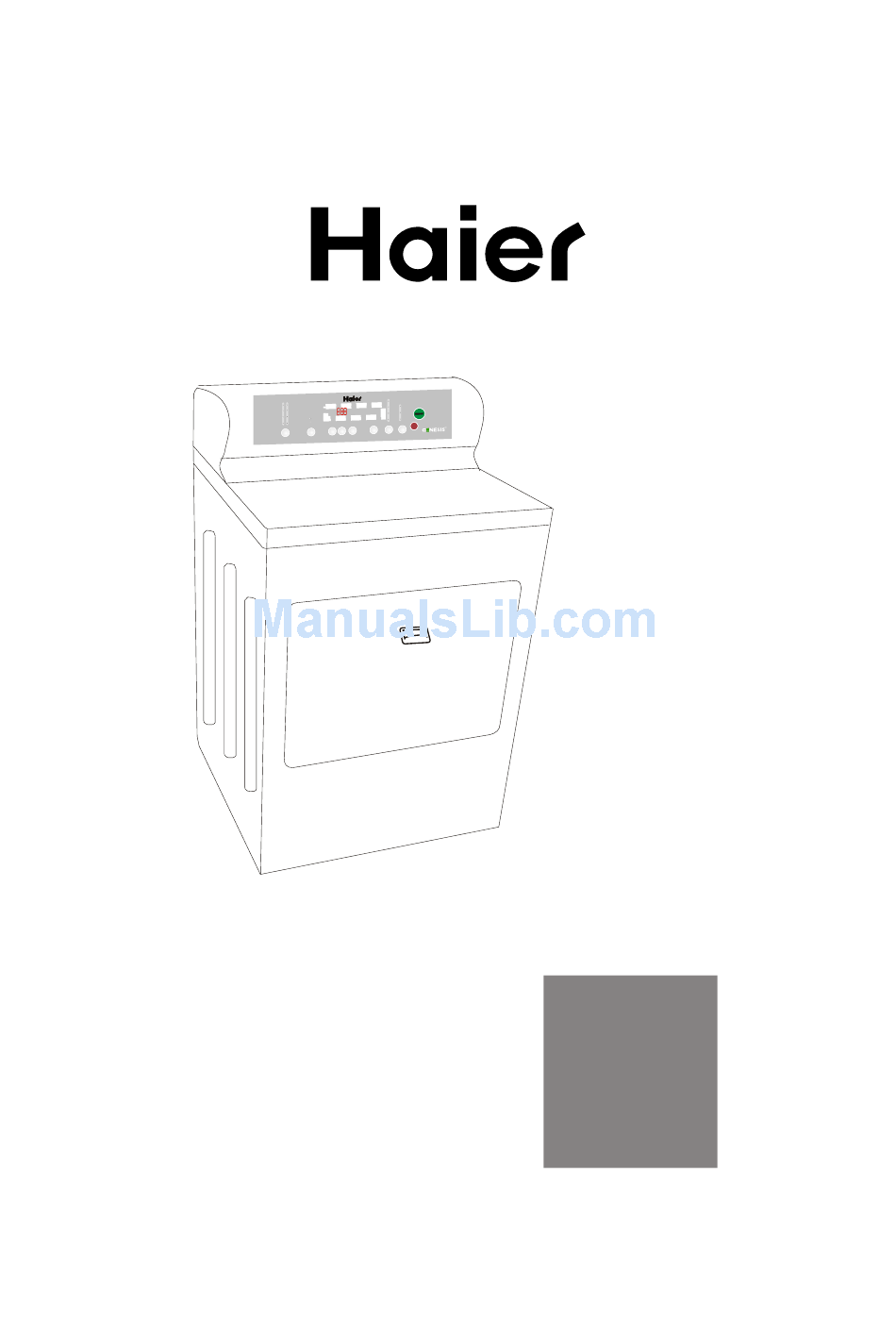

Time Time Time Time Saver Cycles Cycles Cycles Delicate Cycles Towels/Cotton User Manual- Electric Dryer Electric Dryer Power Louder Loud On/Off Start Start Louder Soft Softer Start Softer Pause Pause Pause Wrinkle Care Cycle Signal Signal Model # HLF103Q HLF103Q...
Unpacking Your Dryer ... Exhaust System Connections ... 16 Requirements and Instructions... 16 Materials ... 17 Location of Your Dryer ... 19 Installation in Mobile Home ... 20 Electrical Connections ... 21 Requirements and Instructions ..21 3-Wire Cord Connections... 22 4-Wire Cord Connections...
Press this button once to start the dry process. Press this button once again to pause the activity during the dry cycle. Off Button: (2) Press the button to turn the dryer OFF. Signal Button: (3) Used to select buzzing volume or turn off the buzzer.
Page 7
Sensor Dry Level Button: (5) Used to set drying time of auto-programs. If no auto-program is selected, pressing the button is inactive and will get alarms. Wrinkle Saver Button: (6) This convenient feature lets you delay the start of the dry cycle between 3 to 24 hours.
Dark and light colored clothes shall be separately dried. Fabrics prone to falling lint and those prone to adhering lint shall be separately dried. Clothes prone to falling lint shall be turned inside out before putting into the dryer. Make sure buttons and ornaments on the clothes are high temperature resistant and won't damage drum surface.
Cycles 1. Press any button except "Off" button to power on Turn on the power switch, the computer board beeps once and the dryer transfers from off status to the initial operating status (Normal program); If no "Start/Pause" button is pressed in 5 min after powering on, it automatically cuts off power and returns to off status;...
Page 10
Various button initial status for "Normal program" Cycle Signal Softer Wrinkle Care Cycles Normal Indicate current program remaining time Nixie display High Temp More Dry sensor Dry Level Auto-program Timed/Cycles 2. Press "Auto-Dry Cycles" button to select a suitable full automatic cycle The Normal program will be automatically selected after powering on.
Page 11
6. Press "Wrinkle Saver"button to select a suitable reserved drying program After powering on, the dryer delay start drying program automatically sets as disabled. When you desire a drying cycle ends at a delay time, press "Wrinkle Saver" button to set wrinkle saver drying program.
Timed Dry cycle Super Capacity Super Capacity Normal Casual Heavy Delicate More Dry Cool down High Cotton Touch Up Cycle completed Medium Timed Dry Timed Dry Extend trumble Less Dry Rack Dry Rack Dry Bulky Items Custom Air Only(No Heat) Dryness Level Temp...
All dryers come with a lint filter that needs to be cleaned before or after every use (read Care and CleaningGuide Section). Leveling Legs: Your dryer has four leveling legs which are located in the front and rear corners of your dryer. After installingyour dryer in its final position, you can level your dryer.
Location of Your Dryer Do Not Install Your Dryer: In an area exposed to dripping water or outside weather conditions. In an area where it will come in contact with curtains, thick carpet, or anything that will obstruct the flow of combustion and ventilation air.
Metal ducting must be 4 inches (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred. If dryer is exhausted through the floor and area beneath the mobile home is enclosed, the exhaust system must terminate outside the enclosure with the termination securely fastened to the mobile home structure.
Page 28
IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact Haier Customer Satisfaction Center 1-877-337-3639. DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE 120/240V, 60Hz Made in China What The World Comes Home To...
