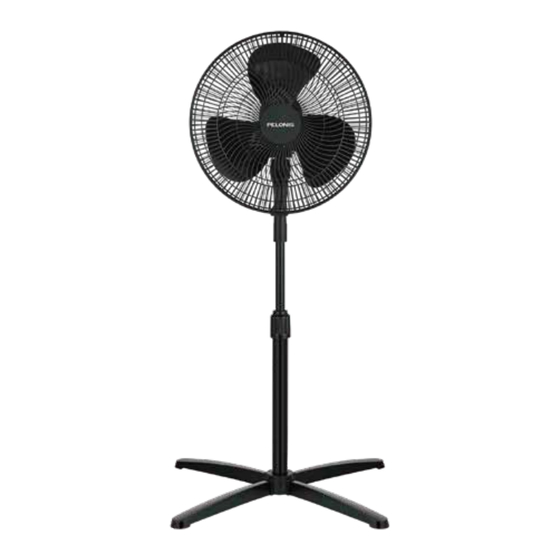

PEDESTAL FAN
PFS40M2ABB
Rated voltage: 120V
Rated power: 32W
Frequency: 60Hz
Warning Notice: Before using
this product, please read this
manual carefully and keep it for
future reference. For additional
support, please call customer
service at 866-646-4332.
The design and specifications are
subject to change without prior
notice for product improvement.
Consult with your dealer or
the manufacturer for details.
USER MANUAL
PFS40M2ABB
pelonis.com
en

Advertisement

Table of Contents
loading

Related Manuals for Pelonis PFS40M2ABB

Summary of Contents for Pelonis PFS40M2ABB

  • Page 1 USER MANUAL PEDESTAL FAN PFS40M2ABB Rated voltage: 120V Rated power: 32W Frequency: 60Hz Warning Notice: Before using this product, please read this manual carefully and keep it for future reference. For additional support, please call customer service at 866-646-4332. The design and specifications are subject to change without prior notice for product improvement.

  • Page 2: Table Of Contents

    Owner’s Manual SAFETY PRECAUTIONS ................3 IMPORTANT INSTRUCTIONS ..............3 RULES FOR SAFE OPERATION .............. 4 PART NAMES ....................ASSEMBLY OF STAND & EXTENSION POLE ........FRONT AND REAR GRILLE INSTALLATION ........OPERATING INSTRUCTIONS ..............USER SERVICING INSTRUCTIONS ............CLEANING ....................

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk is shown by the following indications. This symbol indicates a hazardous situation which, if not WARNING avoided, could result in death or serious injury.

  • Page 4: Rules For Safe Operation

    WARNING 5. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. 6.

  • Page 5: Part Names

    PART NAMES Tighten Loosen Description Front grille Fasten Fan blade Plastic nut Rear grille Motor shaft Motor housing Spinner Internal Pole Extension Pole Height adjustment ring Stand Cross base connector NOTICE: All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

  • Page 6: Assembly Of Stand & Extension Pole

    ASSEMBLY OF STAND & EXTENSION POLE Fig.1 Fig.2 Fig.3 Observation hole Stand Height adjustment ring Cross base connector Pole assembly Cross base connector Fig.4 Fig.5 Fig.6 Head unit Screw installation hole Thumb screw Loosen Tighten Mounting hole Internal pole 1. Insert the pole assembly into the cross base connector from top to bottom, ensure it is installed in place (use the observation hole to determine if the pole assembly is fully inserted into the cross base connector).(Fig.1)

  • Page 7: Front And Rear Grille Installation

    FRONT AND REAR GRILLE INSTALLATION Fig.7 Fig.8 Fig.9 Grill buckle Buckle Grill line Buckle Grill line 1. Align the front grille buckle with the top line of the rear grille from top to bottom, after aligning, the grilles should look like the corresponding schematic.(Fig.7) 2.

  • Page 8: User Servicing Instructions

    USER SERVICING INSTRUCTIONS 1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. 2. Open fuse cover. Slide open fuse access cover ,that is on top of the plug, towards blades. 3.

  • Page 9: Service And Support

    SERVICE AND SUPPORT In the event of a warranty claim or if service is required for this product, please contact us at the following: Toll Free: 1-866-646-4332 Email us at: customerservice@supportuscenter.com Midea America Corp. Parsippany, NJ 07054 For your records, staple your sales receipt to this manual and record the following: DATE OF PURCHASE: _______________________________________ PLACE OF PURCHASE: ______________________________________...

  • Page 10: Year Limited Warranty

    1 YEAR LIMITED WARRANTY This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase.
