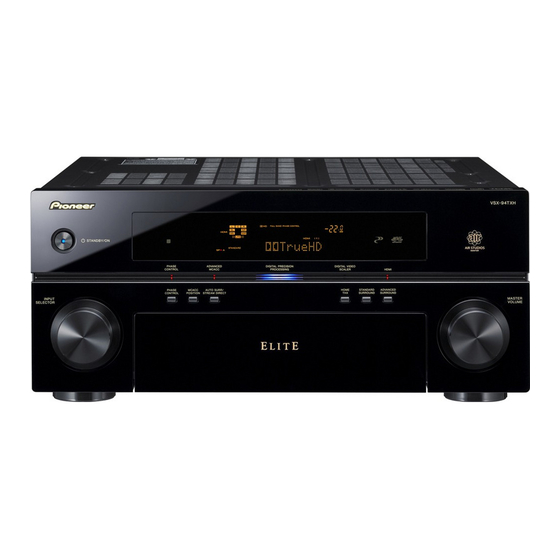

Pioneer VSX-92TXH Instructions Manual
  1. Manuals
  2. Brands
  3. Pioneer Manuals
  4. Receiver
  5. ELITE VSX-92TXH
  6. Instructions manual

Pioneer VSX-92TXH Instructions Manual

Elite a/v receiver firmware update instructions for hdmi, dsp, event, and main microcomputers, dsp1 & dsp2 flash rom
Hide thumbs Also See for VSX-92TXH:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Pioneer Elite A/V Receiver Firmware Update Instructions for
HDMI, DSP, EVENT, and MAIN Microcomputers,
A. Applicable models:
VSX-92TXH & VSX-94TXH
B. Required tools and equipment:
•
PC with RS-232 serial port (9 pins) and Windows 98, 98SE, 2000 or XP
•
RS-232 cable (Cross/Serial cable DB9 Female
This cable can be purchased from www.cablewholesale.com,
•
Software program for updating "UFU.exe". It is in the *.zip file from Pioneer's ASC website.
•
Firmware upgrade files with "mot" extension. They are in the *.zip file from Pioneer's ASC website.
•
These Instructions. This is also in the *.zip file from Pioneer's ASC website.
•
DVD/CD Player with Digital Audio Coaxial or Optical output.
Note: Use only players with MTK system (DV-270, 370, 373, 575K, 280, 380, 383, etc. ), Mitsubishi system
(DV-59AVi, 868AVi, S969AVi, 668AVi, etc. ) or Fujitsu system (DV-343, 444, 545, etc.)
DO NOT use DVD player based on ST system (DV-353, 454, 250, 400, 555K, 260, 363, 464, 466, 563, etc.)
because these players can't send the correct data to the receiver. Refer to the "DVD Firmware Matrix by
Model" on Pioneer's ASC website for a complete list..
•
Coaxial Digital Audio or Optical Digital Audio cable.
•
DSP Flash Rom Firmware disc – Contact Field Service Operations at 800-930-6909 for availability.
Note: Must order this part from Field Service Operations.
This disc can be created using any CD burning software and following the instructions for creating a Music
CD (not data CD) with the file *.wav included in the *.zip file from Pioneer's ASC website.
DSP1 & DSP2 FLASH ROM
1
DB9 Female) - Pioneer Part Number RS232-DB9/DB9
Part Number 10D1-20410
Pioneer Electronics Service, Inc
SE Dept, QA Division
Rev date: 07/02/2008

Advertisement

loading

Related Manuals for Pioneer VSX-92TXH

Summary of Contents for Pioneer VSX-92TXH

  • Page 1 Note: Must order this part from Field Service Operations. This disc can be created using any CD burning software and following the instructions for creating a Music CD (not data CD) with the file *.wav included in the *.zip file from Pioneer’s ASC website. Pioneer Electronics Service, Inc...

  • Page 2: Firmware Upgrade Procedures

    Note: This will set the Volume to minimum (“---db” on the display) and Multi-Zone to OFF. This is a required step for the following procedures and should not need to be done again until finished with the update(s). 2. Connect the PC to the unit. Pioneer Electronics Service, Inc SE Dept, QA Division Rev date: 07/02/2008...
  • Page 3 4. Within 4 seconds press the “ENTER” (21) key and “HDMI DL [GO ON]” is displayed. Open the UFU.exe program and select “Full” in “Mode Select” box. Click on the “File Selection” button. 6. Select the latest HDMI u-com firmware file (Example: 07MID_hdmi_flash_1006.mot). Check Pioneer’s ASC website for the latest firmware files.

  • Page 4: Dsp Microcomputer

    4. Within 4 seconds press the “ENTER” (21) key and “DSPM DL [GO ON]” is displayed. Open the UFU.exe program and select “Full” in “Mode Select” box. Click on the “File Selection” button. 6. Select the latest DSPM u-com firmware file (Example: 07MID_DSP_1004.mot). Check Pioneer’s ASC website for the latest firmware files.
  • Page 5 4. Within 4 seconds press the “ENTER” (21) key and “EVNT DL [GO ON]” is displayed. Open the UFU.exe program and select “Full” in “Mode Select” box. Click on the “File Selection” button. 6. Select the latest EVENT u-com firmware file (Example: 07MID_event_1002_.mot). Check Pioneer’s ASC website for the latest firmware files.
  • Page 6 4. Within 4 seconds press the “ENTER” (21) key and “MAIN DL [GO ON]” is displayed. Open the UFU.exe program and select “Full” in “Mode Select” box. Click on the “File Selection” button. 6. Select the latest MAIN u-com firmware file (Example: 07MID_main_1006(071011).mot). Check Pioneer’s ASC website for the latest firmware files.
  • Page 7 II. DSP1 & DSP2 FLASH ROM Note: When using Pioneer DVD players, only certain models can be used. They are models based on the MTK system (DV-270, 280, etc), Mitsubishi system (DV59AVI, etc), or Fujitsu system (DV-343, 444, etc). DO NOT use Players based on the ST system (DV353, 563, etc) because these players can’t send the correct data to the receiver.
  • Page 8 5. When finished, the unit will be automatically reset and turn back on in normal mode. 6. Disconnect the AC power cord for 10 seconds and then reconnect it. 7. Finished. Pioneer Electronics Service, Inc SE Dept, QA Division Rev date: 07/02/2008...
