- Page 1 ASR10 TECHNICAL MANUAL [SECOND EDITION]...

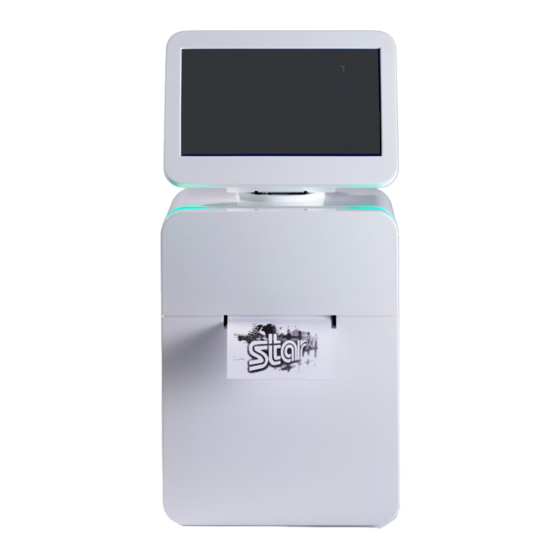

- Page 2 Getting started This manual describes the thermal printer ASR10. It is designed for use as a reference for periodic inspections and maintenance procedures to be executed by service personnel. It is not intended for the general user. Users of this manual should have a basic knowledge and understanding of the English language.
-
Page 3: Table Of Contents
CHAPTER 1 PARTS REPLACEMENT This chapter explains disassembly and reassembly of the printer. Note the following precautions during disassembly and reassembly. 1. Disconnect the printer power cord plug from the wall outlet before servicing it. 2. Always wear safety gloves to prevent an injury as well as to prevent rust developing on the device. 3. -
Page 4: Turning The Power Off
① Tap the Shutdown button on the home screen. Home Screen 1.0.0 05:19:20 Configuere Barcode Reader Signage Control Web Printing Survey Application Name Application Name Application Name Admin Shutdown button ② Select [Shutdown] from the displayed confirmation screen to turn off the AsuraCPRNT power. Power Restart Shutdown Cancel – 2 –... -
Page 5: Cutter Cover / Front Panel / Rear Cover
1 . Cutter Cover / Front Panel / Rear Cover Required jigs and tools: Electric screwdriver (Driver bit 2) (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Front Panel 1 Bend the front panel slightly towards you to easily remove section A. (3) Removal •... -
Page 6: Cutter Unit
3 . Cutter Unit Required jigs and tools: Electric screwdriver (Driver bit 2) (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Remove the cutter cover to the procedure described in item 1. (3) Remove the board cover unit to the procedure de- scribed in item 2. -
Page 7: Head
4 . Head Required jigs and tools: Electric screwdriver (Driver bit 2) (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Remove the cutter unit to the procedure described in item 3. (3) Removal • Head cable 1 • Head unit 2 •... -
Page 8: Tilt Cover / Swivel Cover
5 . Tilt Cover / Swivel Cover (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Move the tilt cover 1 down as indicated by the arrows in the illustration on the left so that the two tabs (in the red circles) pop out. -
Page 9: Lcd
6 . LCD Required jigs and tools: Electric screwdriver (Driver bit 2) (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Remove the rear cover to the procedure described in item 1. (3) Remove the board cover unit to the procedure de- scribed in item 2. -
Page 10: Front Cover Unit
7 . Front Cover Unit Required jigs and tools: Electric screwdriver (Driver bit 2) (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Remove the each cover and the front panel to the pro- cedure described in item 1. (3) Remove the board cover unit to the procedure de- scribed in item 2. -
Page 11: Inner Cover / Lens / Led Pcb
8 . Inner Cover / Lens / LED PCB Required jigs and tools: Electric screwdriver (Driver bit 2) (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Remove the front cover unit to the procedure described in item 7. (3) Removal • Two connectors 1 •... -
Page 12: Case Unit
9 . Case Unit Required jigs and tools: Electric screwdriver (Driver bit 2) (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Remove the inner cover, lens and the fLED PCBs to the procedure described in item 8. (3) Removal • Four screws 1 [ Tightening torque : 0.8±0.2 N . -
Page 13: Stationary Knife
11 . Stationary Knife Required jigs and tools: Electric screwdriver (Driver bit 2) Electric screwdriver (Driver bit 1) E-ring holder 4.0 E-ring dispenser 4.0 E-ring holder 3.0 E-ring dispenser 3.0 (1) Turn off the printer and unplug it from the elec- trical outlet. (2) Remove the front cover unit to the procedure de- scribed in item 7. (3) Removal • Screw 1 [Tightening torque : 0.5±0.1 N . -
Page 14: Gears / Cover Open Switch
12 . Gears / Cover Open Switch Required jigs and tools: Screwdriver for small torque application ( Driver bit 0 ) E-ring holder 3.0 E-ring dispenser 3.0 (1) Turn off the printer and unplug it from the electri- cal outlet. (2) Remove case unit to the procedure described in items 9. (3) Removal • Stop ring 1 •... - Page 15 CHAPTER 2 MAINTENANCE AND LUBRICATION 1 . Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 1-1 .
- Page 16 1 . Maintenance To keep this printer in its original operating condition for a long time, and to prevent problems before they occur, be sure to carry out proper maintenance according to the following items. Maintenance checks for this printer is divided into the two areas of “routine maintenance” that the person using the printer carries out during normal use and “periodic maintenance”...
- Page 17 • Platen Rubber Roller Use a soft, dry cloth to wipe off the dirt from the rubber roller. Clean the entire rubber roller by rotating it. • Paper Holder Clean the paper holder of debris, dust, paper particles, and other objects that may have accumulated. •...
- Page 18 2 . Lubrication Lubrication is extremely important for preserving the original performance of the printer over a long period of time. 2-1 . Type of oil The type of oil used has a major influence on the performance and durability of the printer.You should pay particular attention to the cold temperature properties of the oil.
- Page 19 Fig.2-2. Lubricated Area – 17 –...
- Page 20 CHAPTER 3 PARTS LIST HOW TO USE PARTS LIST (1) DRWG . NO . This column shows the drawing number of the illustration. (2) REVISED EDITION MARK This column shows a revision number. Part that have been added in the revised edition are indicated with “#”. Part that have been abolished in the revised edition are indicated with “*”.
-
Page 21: Printer Assembly
Printer Assembly 1-1 . Disassembly Drawing (1/2) <MSR & BCR> 19-2 19-1 19-3 – 19 –... - Page 22 Disassembly Drawing (2/2) – 20 –...
-
Page 23: Parts List
1-2 . Parts List Printer Assembly DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK 37647060 CPU MODULE UNIT 30781960 BULK ADAPTER PS60A-24B1L 30085390 MODEL NAME SEAL 30071600 BRAND SEAL 09990452 LCD YXM070TLW06 04991298 FASTENER T40I 00930803 SCREW TAT 3-8 PT 00930809 SCREW TAT 3-8 BT 00820304... -
Page 24: Printer Mechanism
Printer Mechanism 2-1 . Disassembly Drawing – 22 –... -
Page 25: Parts List
2-2 . Parts List Printer Mechanism DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK 37649000 HEAD UNIT 37643010 PAPER GUIDE UNIT 37477200 NEAR-END DETECTOR UNIT TSP65 37472010 PAPER GUIDE UNIT B TSP65 37981440 CUTTER UNIT S-P T65II 37467111 COVER OPEN SWITCH UNIT TSP1 37462070 MOTOR UNIT... -
Page 26: Sub-Assembly
3 . Sub-Assembly 3-1 . Head Unit DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK 37649700 HEAD CABLE ASSY 32041570 HEAD HOLDER 30992061 DISCHARGE BRUSH 30905230 THERMAL HEAD KRB728TAO4STR 01903030 SCREW TR 3-4 FL NOTE : Parts of the shaded area can not be ordered. – 24 –... -
Page 27: Block Diagram
4 . Block Diagram ASR10 PCB Main Unit Main Logic Board Cover Open Sensor Connector PCB Near End Sensor Unit Tack CN19 Solderin Connector PCB Jam Sensor Unit Tack CN10 Connector Solderin PCB Paper End Sensor Unit Tack (Black Mark Sensor) Connector Solderin Solenoid Coil... - Page 28 URL: http://www.starmicronics.com/support/...
