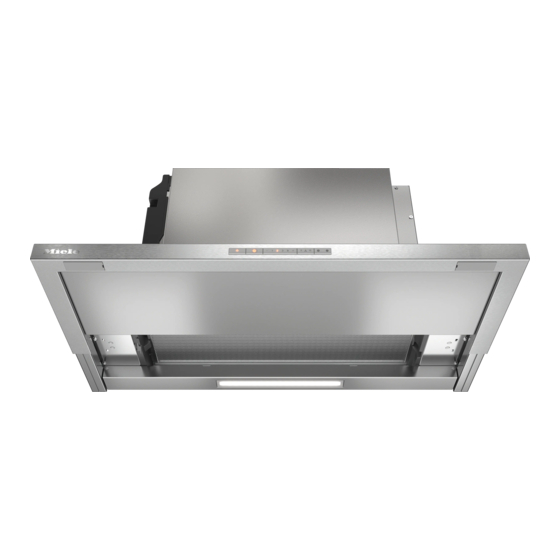

- Page 1 Operating and Installation Instructions Ventilation Hood To prevent accidents and damage to the appliance, you must read these instructions before installing the appliance and using it for the first time. en-US M.-Nr. 11 928 121...
-
Page 2: Table Of Contents
Description of functions ................... 16 Before using for the first time ................17 Selecting extraction mode or recirculation mode..........17 Setting up Miele@home ..................17 Connecting via the app .................. 18 Connecting via WPS ..................19 Signing out of WiFi (reset to factory settings) ..........20 Operation...................... - Page 3 Contents Appliance warranty and product registration ............33 Installation......................34 Before installation....................34 Installation recommendations ................34 Installation materials.................... 34 Installation materials for recirculation mode........... 35 Appliance dimensions ..................36 Distance between cooktop and ventilation hood (S)........... 39 Air venting ......................40 Non-return flap ....................
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage. Read all instructions before installing or using the appliance for the first time. Only use the appliance for its intended purpose. Keep these operating instructions in a safe place and pass them on to any future user. - Page 5 IMPORTANT SAFETY INSTRUCTIONS Safety with children Children must be kept away from the ventilation hood unless they are constantly supervised. Children must not be allowed to clean or service the hood. Please supervise children in the vicinity of the hood and do not let them play with it.
- Page 6 Installation, repair and maintenance work should be performed by a Miele authorized service technician in accordance with national and local safety regulations and the provided installation instructions. Contact Miele’s Technical Service Department for examination, repair or adjustment.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS Do not use a power bar or extension cord to connect the ventilation hood to electricity. These are a fire hazard and do not guarantee the required level of appliance safety. To ensure safe operation, only use the ventilation hood after it has been properly installed.
- Page 8 IMPORTANT SAFETY INSTRUCTIONS Correct use WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE FIRE: - a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers may ignite. Heat oils slowly on low or medium settings. - b) Always turn the hood on when cooking at a high heat.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS The ventilation hood may become damaged if exposed to excessive heat from a gas cooktop. - When using the ventilation hood over a gas cooktop, ensure that any burners in use are always covered by cookware. Turn burners off when removing the cookware, even if doing so for just a short time.
- Page 10 IMPORTANT SAFETY INSTRUCTIONS Proper installation WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: - a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Page 11 When installing the exhaust duct, only use pipes or tubes made of non-flammable material. These can be obtained from your Miele dealer or from Miele Technical Service. Always observe local building code requirements when selecting duct material. Exhaust air should not be vented into a chimney or vent flue which is otherwise in use and should not be channeled into ducting which ventilates rooms with fuel-burning installations.
- Page 12 IMPORTANT SAFETY INSTRUCTIONS Accessories and parts Use only genuine original Miele parts. If parts or accessories from other manufacturers are used, the warranty may become void. Defective components should be replaced by Miele original parts only. Only with these parts can safety of the appliance be assured as intended by the manufacturer.
-
Page 13: Caring For The Environment
Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed. -
Page 14: Guide To The Ventilation Hood
Guide to the ventilation hood... - Page 15 Guide to the ventilation hood a Vent collar b Controls c Charcoal filters Optional accessories for recirculation mode d Grease filter e Pull-out canopy f Overhead lighting g Control for switching the lighting on and off and for dimming the lighting h Control for switching the blower on and off i Controls for setting the blower power j Control for the delayed shutdown function...
-
Page 16: Description Of Functions
Description of functions The following functions are available on Recirculation mode your ventilation hood, depending on the (only with conversion kit and charcoal model: filters as optional accessories, see “Technical data”) Extraction mode The air is drawn in and cleaned first by Air entering through the intake is the grease filter and then by charcoal cleaned by the grease filters and... -
Page 17: Before Using For The First Time
The charcoal filter symbol and one of You can connect to the household WiFi the blower power level indicators will network via the Miele app or via WPS. flash. Press and hold the control until the B indicator starts to flash. -
Page 18: Connecting Via The App
Connecting via the app Start signing the appliance on in the The Miele app can be used to connect app. Follow the signing in to your network. instructions. Install the Miele app on your mobile If requested to activate WiFi on the device. -
Page 19: Connecting Via Wps
Before using for the first time Switch the ventilation hood off. Connecting via WPS Your WiFi router must support WPS (WiFi Protected Setup). Press and hold the control. Switch the ventilation hood off. Press the lighting control at the ... -
Page 20: Signing Out Of Wifi (Reset To Factory Settings)
WPS to your The ventilation hood will be ready for router quickly enough. Repeat the steps disconnection in the next 2 minutes. above. Tip: If your WiFi router does not support WPS, please connect via the Miele app. - Page 21 Before using for the first time Touch the control. 2 will light up constantly, 3 will flash on and off. After a few seconds, 2 and 3 will flash on and off. The connection has now been disconnected. ...
-
Page 22: Operation
Operation Turning on the fan Selecting the delayed shutdown time Switch the fan on as soon as you start cooking. This is to ensure that vapors It is advisable to run the blower for a are captured right from the start. few minutes after cooking has finished. -
Page 23: Dimming/Switching The Cooktop Lighting On/Off
Operation Dimming/switching the Safety shut-off cooktop lighting on/off If power management has been deactivated, the ventilation hood will You can turn the cooktop lighting on switch itself off automatically after and off by pulling out the canopy and 12 hours if it has been left on (blower pushing it in again or by pressing the and overhead lighting). -
Page 24: Energy-Saving Tips
Energy-saving tips This hood operates in a very efficient and energy-saving manner. The following will help you to save even more energy when using it: - Ensure that there is sufficient ventilation in the kitchen when cooking. If there is insufficient air flow during extraction mode, the hood cannot operate efficiently, causing increased operating noise levels. -
Page 25: Changing Settings
Changing settings Switch off the blower and the lighting. Adjusting the grease filter filter saturation indicator Press the delayed shutdown control and the filter saturation The filter saturation indicator can be set control at the same time. to suit the customer’s cooking habits. The grease filter symbol ... -
Page 26: Adjusting Or Deactivating The Filter Saturation Indicator For The Charcoal Filter
Changing settings Adjusting or deactivating the Deactivating power filter saturation indicator for management the charcoal filter Keep in mind that this may increase energy consumption. Charcoal filters are needed for recirculation mode. Activating/deactivating power The filter saturation indicator can be set management to suit the customer’s cooking habits. -
Page 27: Cleaning And Care
Unsuitable cleaning agents can treating them with a stainless steel care damage the surfaces and control product (available from Miele). elements. Do not use any cleaning agents Important information for the containing soda, acid, chloride, or controls solvent. -
Page 28: Filter Saturation Indicator
Cleaning and care Filter saturation indicator The number of elapsed operating hours remains stored in memory when The ventilation hood registers the length the ventilation hood is turned off or if of time it has been operated. there is a power outage. Filter saturation indicators show when the filters need to be cleaned or Grease filter... - Page 29 Ensure the spray arm is not obstructed. Use a commonly available household dishwashing detergent. In a Miele dishwasher use the “Normal” program. Depending on the detergent used, cleaning the filter in a dishwasher may Push the grease filter on the right-...
-
Page 30: Replacing The Grease Filter
Grease filters are available to order via prevent the risk of these catching fire. Miele Customer Service (see end of these operating instructions for contact details) or from your Miele dealer. Reinsert the grease filter. -
Page 31: Odorfree Charcoal Filter
Remove the grease filter from the ventilation hood. Charcoal filters are available to order via the Miele website or from your Miele Remove the charcoal filter packaging. dealer. The charcoal filters are listed under “Technical data”... -
Page 32: Resetting The Filter Saturation Indicator For The Charcoal Filters
Cleaning and care When to change the OdorFree Charcoal Filter Replace the charcoal filters when they no longer absorb kitchen odors effectively, and at least every 6 months. The filter saturation indicator reminds you to regularly replace the charcoal filters by illuminating the charcoal filter symbol . -
Page 33: Customer Service
In the event of a fault which you cannot remedy yourself, please contact your Miele dealer or Miele Customer Service. You can book a Miele Service Call online at www.miele.com/service. Contact information for Miele Customer Service can be found at the end of this document. -
Page 34: Installation
*INSTALLATION* Installation Before installation Installation materials Before installation, it is important to read the information contained in this chapter and in the “IMPORTANT 1 non-return flap SAFETY INSTRUCTIONS” chapter. for fitting into the exhaust socket on the motor unit (not needed for Information is subject to change. -
Page 35: Installation Materials For Recirculation Mode
*INSTALLATION* Installation 4 M4 x 8 mm screws DML 2000 installation kit for installing a hinged front panel to match kitchen cabinetry (not supplied; available as an optional accessory) 5 (9)* screws, 4 x 15 mm Installation materials for recirculation mode You need the following optional accessories for recirculation mode. 4 screws, 4 x 30 mm 8 (12)* screws, 4 x 15 mm DKFS 31-x installation kit... -
Page 36: Appliance Dimensions
*INSTALLATION* Installation Appliance dimensions Diagram 1: DAS 4720 in a 23 ⁵/₈" (600 mm) wide cabinet. The drawing is not to scale... - Page 37 *INSTALLATION* Installation Diagram 2: DAS 4720 in a 30" (762 mm) wide cabinet DAS 4920 in a 35 ⁷/₁₆" (900 mm) wide cabinet The drawing is not to scale See diagram 1 for side view.
- Page 38 *INSTALLATION* Installation Diagram 3: DAS 4920 in a 23 ⁵/₈" (600 mm) wide cabinet or in a 35 ⁷/₁₆" (900 mm) wide cabinet with side compartments The drawing is not to scale See diagram 1 for side view. Footnotes for diagrams 1 to 3: a Vented or recirculation with DUU 150 conversion kit b DML 2000 bracket (accessory) for installing a front panel * In this installation situation, the deflector plate is flush with the front edge of the...
-
Page 39: Distance Between Cooktop And Ventilation Hood (S)
Please also observe the information contained in the “IMPORTANT SAFETY INSTRUCTIONS” section. Minimum distance S Cooking appliance Miele Non-Miele appliance appliance Electric Cooktops 24" (610 mm) Electric Barbeques and Fryers 26"... -
Page 40: Air Venting
(see If the exhaust is ducted through an “Appliance dimensions”). This applies outside wall, a Miele wall vent or roof in particular when using flat ducting. vent (available as an optional - The ducting should be as short and accessory) is recommended. -
Page 41: Condensate
*INSTALLATION* Installation Condensate Miele will not accept warranty claims for any functional defects or damage If the ducting is to run through cool caused by inadequate ducting. rooms or ceiling space, for example, the significant variations in temperature Reducing Collar between the different areas can cause condensate to form. -
Page 42: Electrical Connection
CSA C22.1-12, appliance to your power supply, Canadian Electrical Code, Part I. please consult a licensed electrician or call Miele’s Technical Service Department. WARNING: THIS APPLIANCE MUST BE GROUNDED... -
Page 43: Technical Data
Technical data Fan motor 350 W Overhead lighting 3 W Total connected load 353 W Supply voltage, frequency 120 V AC, 60 Hz Fuse rating 15 A Power cord length 2.5 ft (0.75 m) Weight DAS 4720 35.3 lbs (16 kg) DAS 4920 37.5 lbs (17 kg) WiFi module Frequency range 2.400–2.4835 GHz Maximum transmission power <... - Page 47 Customer Service. U.S.A. Canada Miele, Inc. Importer Miele Limited National Headquarters 9 Independence Way Headquarters and Miele Centre Princeton, NJ 08540 161 Four Valley Drive www.mieleusa.com Vaughan, ON L4K 4V8 www.miele.ca Customer Support Phone: 888-99-MIELE (64353) Customer Care Centre info@mieleusa.com...
- Page 48 DAS 4720, DAS 4920 en-US M.-Nr. 11 928 121 / 00...
