HP Proliant ML1 10
Generation 4 Server
Installation Sheet
Read instructions completely before beginning installation procedure.
Part number: 419978-001
First edition: September 2006
Configuring the server
1.
Connect all peripherals:
Keyboard
Mouse
Monitor
NOTE:
Refer to the HP ProLiant ML110 Generation 4
Server Support CD contents for additional information and
updates not provided in this installation sheet.
2.
Determine the server BIOS version:
a. Power up the server.
b. Press the Esc key at the HP logo screen, and then press the
Pause key to halt screen movement.
c.
Note the server BIOS version.
d. Verify the server BIOS version against the latest BIOS
version listed for this server on the HP website:
http://www.hp.com
e. If you do not have the latest BIOS, update the BIOS now.
Refer to the HP ProLiant ML110 Generation 4 Server
Maintenance and Service Guide available on the HP
website: http://www.hp.com
Default boot priority
By default, the server searches for boot devices in the following
order:
1.
CD-ROM/DVD-ROM
2.
Removable Devices
3.
Hard Drive
4.
Embedded NIC
Identifying server components
Front panel components
1
Optical drive
Optical drive manual eject hole
2
3
Optical drive eject button
Optical drive activity indicator
4
5
Half-height common bay
Power button
6
7
Power LED indicator
8
Drive activity indicator
9
Front USB 2.0 ports
10
Hard drive EMI shield
11
Hard drive EMI shield screw
12
Optical drive spare screws
13
Hard drive spare screws
Advertisement
Related Manuals for HP ProLiant ML110
Summary of Contents for HP ProLiant ML110
-

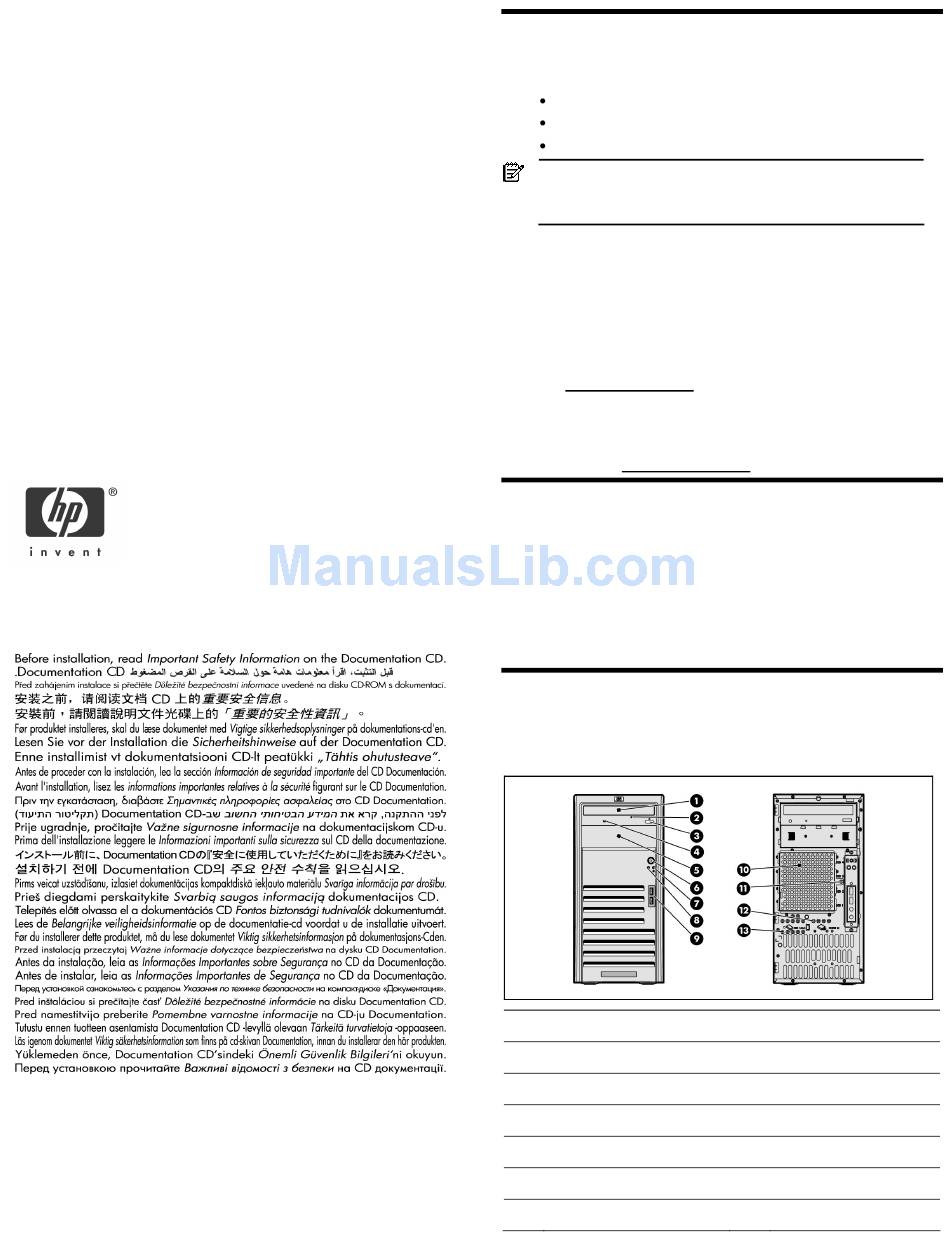

Page 1: Configuring The Server
