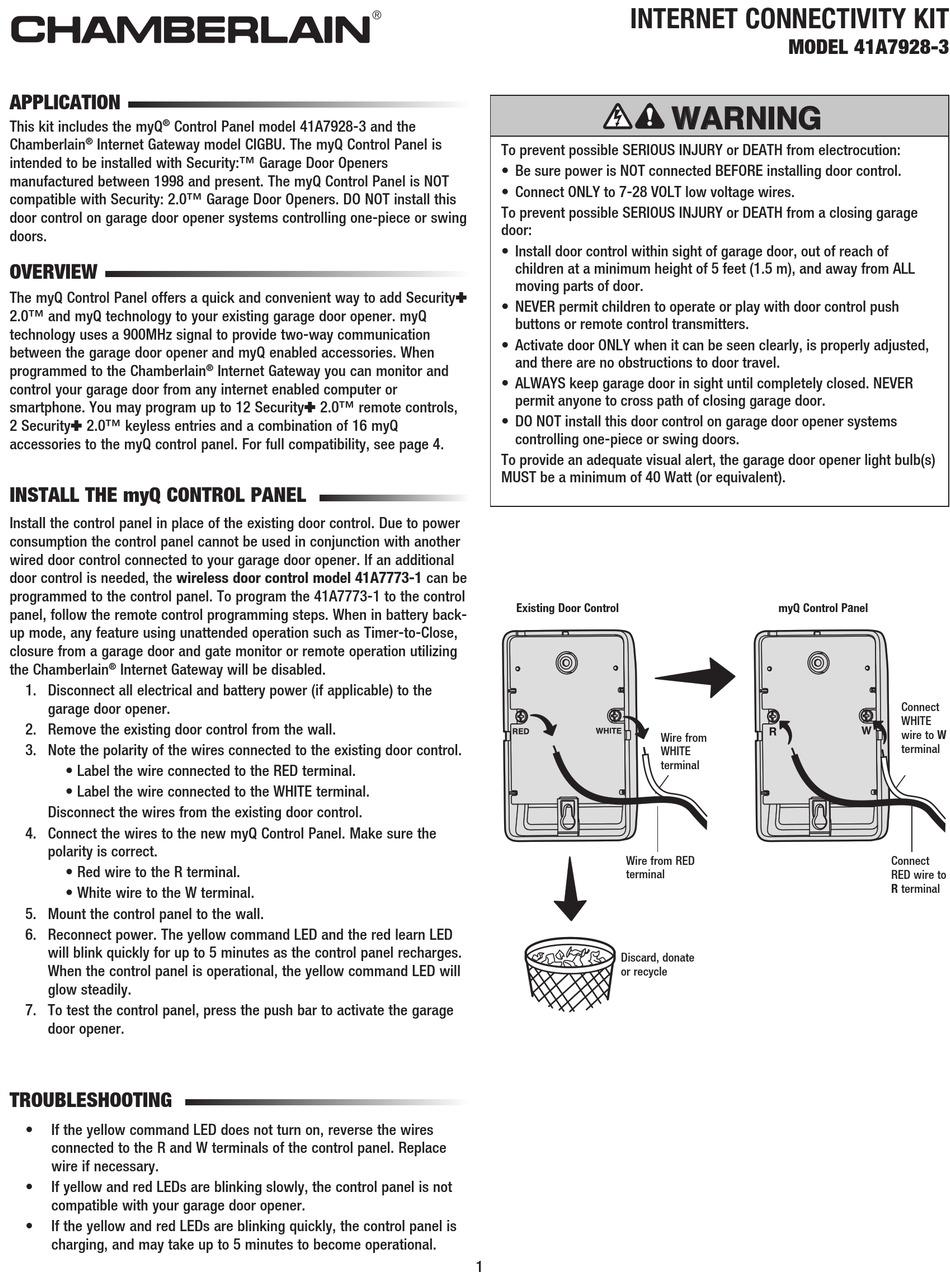

Chamberlain 41A7928-3 Manual

APPLICATION
This kit includes the myQ Control Panel model 41A7928-3 and the
®
Chamberlain Internet Gateway model CIGBU. The myQ Control Panel is
®
intended to be installed with Security:™ Garage Door Openers
manufactured between 1998 and present. The myQ Control Panel is NOT
compatible with Security: 2.0™ Garage Door Openers. DO NOT install this
door control on garage door opener systems controlling one-piece or swing
doors.
OVERVIEW
The myQ Control Panel offers a quick and convenient way to add Security:
2.0™ and myQ technology to your existing garage door opener. myQ
technology uses a 900MHz signal to provide two-way communication
between the garage door opener and myQ enabled accessories. When
programmed to the Chamberlain
control your garage door from any internet enabled computer or
smartphone. You may program up to 12 Security: 2.0™ remote controls,
2 Security: 2.0™ keyless entries and a combination of 16 myQ
accessories to the myQ control panel. For full compatibility, see page 4.
INSTALL THE myQ CONTROL PANEL
Install the control panel in place of the existing door control. Due to power
consumption the control panel cannot be used in conjunction with another
wired door control connected to your garage door opener. If an additional
door control is needed, the wireless door control model 41A7773-1 can be
programmed to the control panel. To program the 41A7773-1 to the control
panel, follow the remote control programming steps. When in battery back-
up mode, any feature using unattended operation such as Timer-to-Close,
closure from a garage door and gate monitor or remote operation utilizing
the Chamberlain Internet Gateway will be disabled.
®
1. Disconnect all electrical and battery power (if applicable) to the
garage door opener.
2. Remove the existing door control from the wall.
3. Note the polarity of the wires connected to the existing door control.
• Label the wire connected to the RED terminal.
• Label the wire connected to the WHITE terminal.
Disconnect the wires from the existing door control.
4. Connect the wires to the new myQ Control Panel. Make sure the
polarity is correct.
• Red wire to the R terminal.
• White wire to the W terminal.
5. Mount the control panel to the wall.
6. Reconnect power. The yellow command LED and the red learn LED
will blink quickly for up to 5 minutes as the control panel recharges.
When the control panel is operational, the yellow command LED will
glow steadily.
7. To test the control panel, press the push bar to activate the garage
door opener.
TROUBLESHOOTING
• If the yellow command LED does not turn on, reverse the wires
connected to the R and W terminals of the control panel. Replace
wire if necessary.
• If yellow and red LEDs are blinking slowly, the control panel is not
compatible with your garage door opener.
• If the yellow and red LEDs are blinking quickly, the control panel is
charging, and may take up to 5 minutes to become operational.
FRENCH WARNINGS AT 5
Internet Gateway you can monitor and
®
SPANISH WARNINGS AT 5
INTERNET CONNECTIVITY KIT
WARNING
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing door control.
CAUTION
• Connect ONLY to 7-28 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage
door:
• Install door control within sight of garage door, out of reach of
children at a minimum height of 5 feet (1.5 m), and away from ALL
moving parts of door.
• NEVER permit children to operate or play with door control push
buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly adjusted,
and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER
permit anyone to cross path of closing garage door.
• DO NOT install this door control on garage door opener systems
AVERTISSEMENT
controlling one-piece or swing doors.
To provide an adequate visual alert, the garage door opener light bulb(s)
MUST be a minimum of 40 Watt (or equivalent).
AVERTISSEMENT
AVERTISSEMENT
Existing Door Control
ATTENTION
Wire from RED
terminal
ADVERTENCIA
Discard, donate
or recycle
ADVERTENCIA
ADVERTENCIA
PRECAUCIÓN
1
WARNING
MODEL 41A7928-3
WARNING
myQ Control Panel
Wire from
WHITE
terminal
Connect
WHITE
wire to W
terminal
Connect
RED wire to
R terminal
