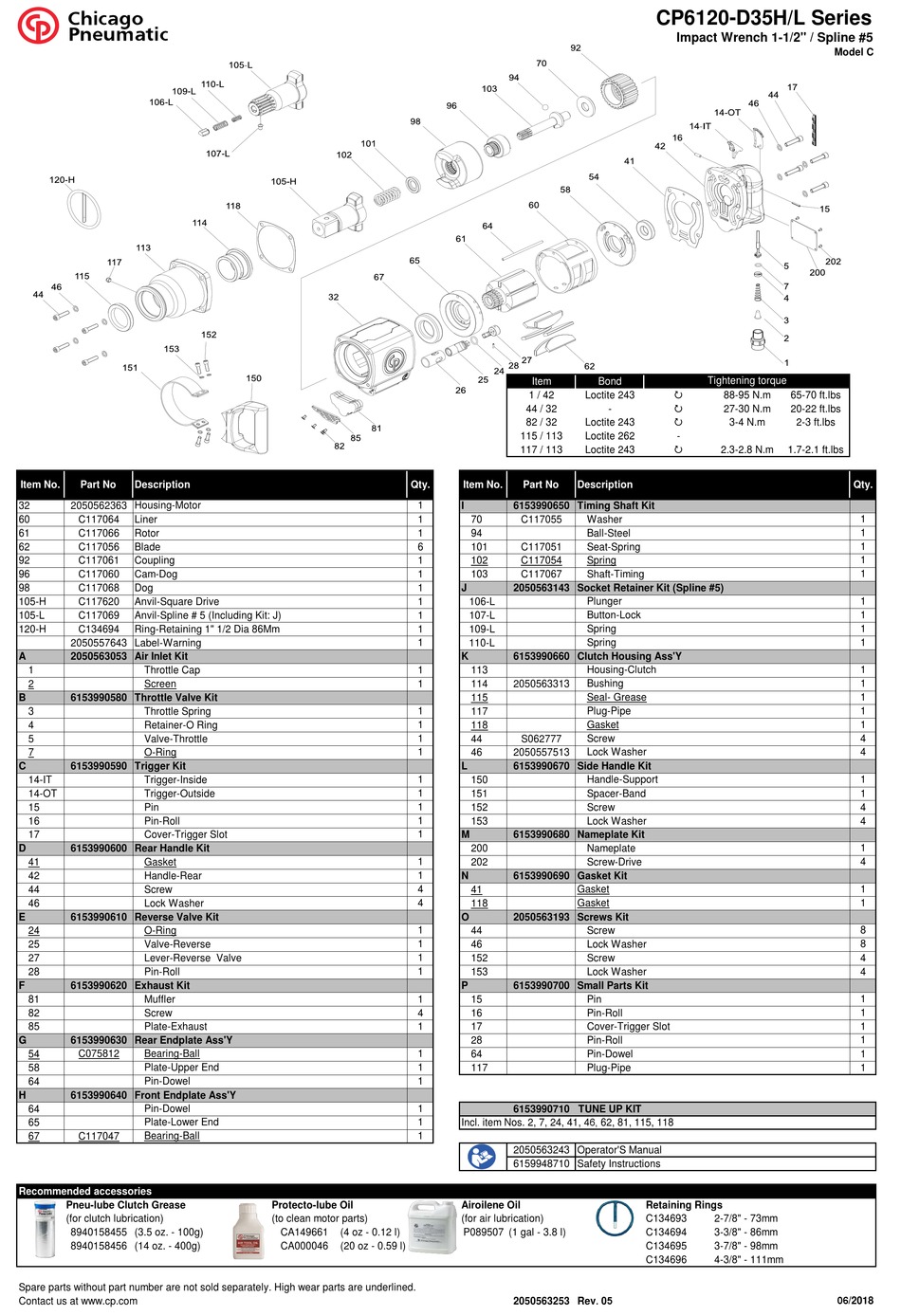

Chicago Pneumatic CP6120-D35H Series Replacement Instructions

Item No. Part No Description
2050562363 Housing-Motor
32
60 C117064 Liner
61 C117066 Rotor
62 C117056 Blade
92 C117061 Coupling
96 C117060 Cam-Dog
98 C117068 Dog
105-H C117620 Anvil-Square Drive
105-L C117069 Anvil-Spline # 5 (Including Kit: J)
120-H C134694 Ring-Retaining 1" 1/2 Dia 86Mm
2050557643 Label-Warning
A 2050563053 Air Inlet Kit
1 Throttle Cap
2 Screen
B 6153990580 Throttle Valve Kit
3 Throttle Spring
4 Retainer-O Ring
5 Valve-Throttle
7 O-Ring
C 6153990590 Trigger Kit
14-IT Trigger-Inside
14-OT Trigger-Outside
15 Pin
16 Pin-Roll
17 Cover-Trigger Slot
D 6153990600 Rear Handle Kit
41 Gasket
42 Handle-Rear
44 Screw
46 Lock Washer
E 6153990610 Reverse Valve Kit
24 O-Ring
25 Valve-Reverse
27 Lever-Reverse Valve
28 Pin-Roll
F 6153990620 Exhaust Kit
81 Muffler
82 Screw
85 Plate-Exhaust
G 6153990630 Rear Endplate Ass'Y
C075812 Bearing-Ball
54
58 Plate-Upper End
Pin-Dowel
64
H 6153990640 Front Endplate Ass'Y
Pin-Dowel
64
65 Plate-Lower End
Bearing-Ball
67 C117047
Recommended accessories
Pneu-lube Clutch Grease
(for clutch lubrication)
8940158455 (3.5 oz. - 100g)
8940158456 (14 oz. - 400g)
Spare parts without part number are not sold separately. High wear parts are underlined.
Contact us at www.cp.com
Qty.
1
1
1
6
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
4
1
1
1
1
1
4
1
1
1
1
1
1
1
Protecto-lube Oil
(to clean motor parts)
CA149661 (4 oz - 0.12 l)
CA000046 (20 oz - 0.59 l)
Item Bond
1 / 42 Loctite 243
44 / 32 -
82 / 32 Loctite 243
115 / 113 Loctite 262
117 / 113 Loctite 243
Item No. Part No Description
I 6153990650 Timing Shaft Kit
70 C117055 Washer
94 Ball-Steel
101 C117051 Seat-Spring
102 C117054 Spring
103 C117067 Shaft-Timing
J 2050563143 Socket Retainer Kit (Spline #5)
106-L Plunger
Button-Lock
107-L
109-L Spring
Spring
110-L
K 6153990660 Clutch Housing Ass'Y
113 Housing-Clutch
114 2050563313 Bushing
115 Seal- Grease
117 Plug-Pipe
118 Gasket
Screw
44 S062777
46 2050557513 Lock Washer
L 6153990670 Side Handle Kit
150 Handle-Support
151 Spacer-Band
152 Screw
153 Lock Washer
M 6153990680 Nameplate Kit
200 Nameplate
202 Screw-Drive
N 6153990690 Gasket Kit
41 Gasket
Gasket
118
O 2050563193 Screws Kit
44 Screw
46 Lock Washer
152 Screw
153 Lock Washer
P 6153990700 Small Parts Kit
15 Pin
16 Pin-Roll
17 Cover-Trigger Slot
28 Pin-Roll
64 Pin-Dowel
117 Plug-Pipe
6153990710 TUNE UP KIT
Incl. item Nos. 2, 7, 24, 41, 46, 62, 81, 115, 118
2050563243 Operator'S Manual
6159948710 Safety Instructions
Airoilene Oil
(for air lubrication)
P089507 (1 gal - 3.8 l)
2050563253 Rev. 05
CP6120-D35H/L Series
Impact Wrench 1-1/2" / Spline #5
Tightening torque
P
88-95 N.m 65-70 ft.lbs
P
27-30 N.m 20-22 ft.lbs
P
3-4 N.m 2-3 ft.lbs
-
P
2.3-2.8 N.m 1.7-2.1 ft.lbs
Retaining Rings
C134693 2-7/8" - 73mm
C134694 3-3/8" - 86mm
C134695 3-7/8" - 98mm
C134696 4-3/8" - 111mm
Model C
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
4
1
1
4
4
1
4
1
1
8
8
4
4
1
1
1
1
1
1
06/2018
