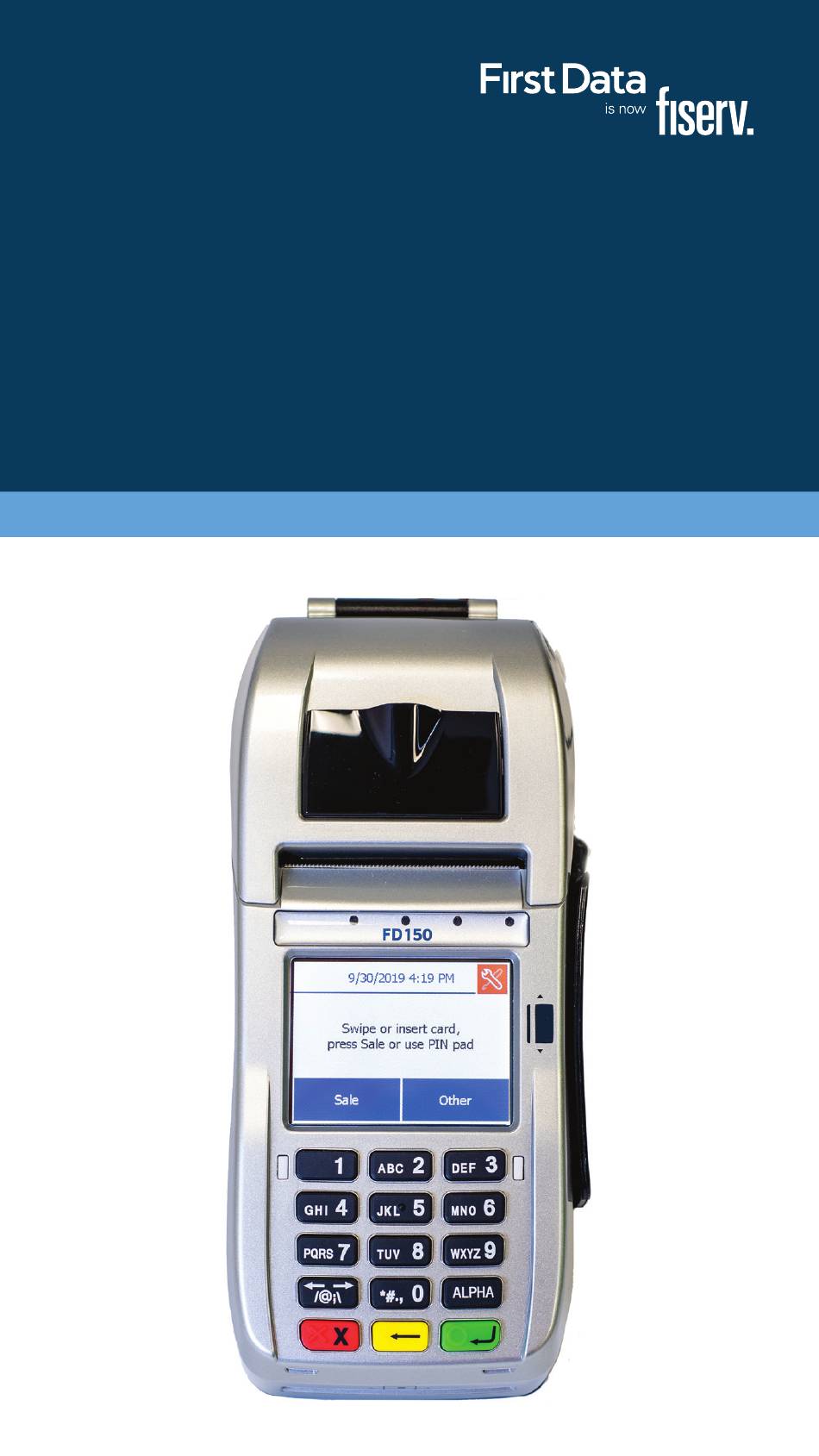

- Page 1 First Data FD150 Terminal Quick set-up guide...
-
Page 2: What's In The Box
Thanks for choosing a First Data Terminal. First Data Terminals are some of the fastest, most secure point-of-sale terminals available. Installation is quick and easy. Simply follow the instructions and begin accepting card transactions today. What’s in the box? • First Data FD150 Terminal •... -
Page 3: Let's Get Started
Let’s get started Typical set-up time: 10 –15 minutes Where to put the FD150 Terminal Place the terminal on a desk or tabletop. Avoid areas with direct sunlight, objects that radiate heat, excessive dust and other electrical devices that can cause excessive voltage. -
Page 4: Get Connected
If you have another device to connect to the terminal, such as the RP10 PIN Pad or MagTek MiniMICR Check Reader, you can now connect them to either the USB or RS-232 port. Please see the device-specific installation instructions. First Data FD150 terminal... -
Page 5: Plug In The Power
Turn the plug so that cord is directed toward the back of the terminal. The power supply should be the last item connected to the unit. Plug the adapter into a surge protector (strongly recommended) or a standard 120V electrical outlet. First Data FD150 terminal... - Page 6 Warning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. First Data FD150 terminal...
-
Page 7: Using The Magnetic Stripe Reader
Find the card reader slot at the front of the FD150 and insert the card completely so the microprocessor chip is no longer visible and the front of the card is facing up. The card must remain inserted throughout the entire transaction. -
Page 8: Using The Contactless Reader
C press [ALPHA] three times then [2]. Using the touchscreen In addition to the keypad, the FD150 also includes an easy to use touchscreen with a simplified menu. Many functions can be selected using the touchscreen for added convenience. - Page 9 Connection to party lines is subject to state tariffs. First Data hardware services 1169 Canton Road, Marietta, GA 30066 (800) 827-8297 A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA.
