Summary of Contents for Fehom PD08F

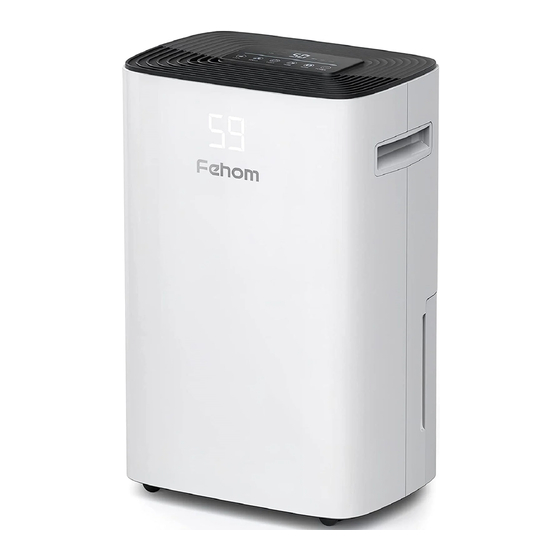

- Page 1 Home Dehumidifier Please read the manual carefully before using the product PD08F USER MANUAL www.fehom.com...
- Page 3 REQUESTING CUSTOMER SERVICE If there are any problems of the product, please contact Fehom Customer Service at support@fehom.com with your Purchase Order ID. We’ll help...
- Page 4 BEFORE FIRST USE: To protect the product from any internal damages, please keep the product in the upright position throughout its journey. Please take out the product and leave it standing in the upright position for 24 HOURS before plugging it in.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Precautions for Use ............01 Parts Description ...............02 Operation Instructions ............03 Cleaning and Maintenance..........12 Specifications..............13 Troubleshooting ..............14 Special Notes ..............17 Warranty and Contact Us ..........18 Statement The graphics and functions provided in this manual maybe not the same as the actual product. The model shown in this manual is only for reference. -
Page 6: Precautions For Use
PRECAUTIONS FOR USE Safety notes: For your safety, please read this manual carefully and keep it for future reference. This product is for home use only. Please install and use the product according to the operations in this manual. ● Before cleaning the dehumidifier, please turn off... -
Page 7: Parts Description
PARTS DESCRIPTION FRONT BACK... -
Page 8: Operation Instructions
OPERATION INSTRUCTIONS 1. Control Panel To enable or disable the child-lock function. Full Bucket Icon To indicate the water bucket is full. - Page 9 OPERATION INSTRUCTIONS 2.Setting Humidity Setting The humidity level can be set within the range of 30% RH to 80% RH in 5% increments. ● When the machine starts to work, it will automatically detect and show the room " button to set the humidity humidity first.
- Page 10 OPERATION INSTRUCTIONS Press this button to control the fan speed. By pressing it, you can choose either High or Low speed. Higher speed results in quicker moisture removal. So when you want to reduce the humidity quickly, please choose the High speed; If you have reduced the humidity or prefer quieter operation, please choose the Low speed.
- Page 11 OPERATION INSTRUCTIONS 3. Display Status Description ● When the device is currently powered on, when turning it off only the POWER" will light up indicating device is in "Standby" status. ● Setting light " " : If the timer is setup properly, the indicator will light up.
- Page 12 Repair or replace the humidity sensor. If the malfunctions still exist, please don't hesitate to contact Fehom Customer Service at support@fehom.com for help. Notice: Before turning on the machine, please be sure to have opened the air outlet.
- Page 13 OPERATION INSTRUCTIONS 6. Empty the Tank or Bucket There are two ways to remove collected water. Using the Bucket When the water tank is full, the full tank alert indicator will light up and the dehumidifier will automatically shutdown until the tank is emptied and placed back to the machine.
- Page 14 OPERATION INSTRUCTIONS Note: Do not remove the float in the water tank. Otherwise, the sensor maybe unable to identify the water level in the tank properly, thus causing water leakage. If the water tank is dirty, please use cold or warm water to clean it. Do not use any detergents, steel wools, chemically-treated dust clothes, gasoline, benzene, thinners or other solvents.
- Page 15 OPERATION INSTRUCTIONS 7. Continuous Drainage To continuously drain, please unplug the machine from the power source first. Then take out the water tank and open the drain cover. Now insert the drain hose into the continuous drain port and place the water tank back to its original place.
- Page 16 OPERATION INSTRUCTIONS 8. Smart Functions Auto Restart If the dehumidifier shuts off unexpectedly due to power outage while it is running or in standby mode, the dehumidifier will restart with the previous unction setting (working mode, set humidity, fan speed and etc.) automatically when the power resumes.
-
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE Please turn off the dehumidifier and unplug it from the power source before cleaning. A-Cleaning the Dehumidifier Body Please use a soft and slightly damp cloth to clean the humidifier body. B- Cleaning the Filter 1. Pull out the filter. 2. -
Page 18: Specifications
SPECIFICATIONS Model PD08F Power Source 120V～60Hz Rated Power (95°F,90%RH) 400W Rated Current (95°F,90%RH) 3.6A Moisture Removal (65°F,60%RH) 15 Pints/Day Moisture Removal (80°F,60%RH) 23 Pints/Day 40 Pints/Day Moisture Removal (86°F,80%RH) Moisture Removal (95°F,90%RH) 50 Pints/Day Input Power (65°F,60%RH) 216W Input Current (65°F,60%RH) 2.0A... -
Page 19: Troubleshooting
Check the information below for troubleshooting the common problems you may encounter in the future. These abnormal conditions that are not faults caused by manufacturing process or material defects. If the malfunctions still exist, please feel free to contact Fehom customer service for help. Troubleshooting... - Page 20 TROUBLESHOOTING The room temperature is too low or the ambient temperature is below 41℉(5℃) (The machine will not work or it dehumidifies very slowly in low temperature). Clean up the dirt on the air inlet and outlet. Please check to see if the filter package is removed and it is installed properly.
- Page 21 Move the float and make sure The float of the water tank has it can swing freely. sunk. Notice: If the dehumidifier still does not work properly as expected, please unplug the machine from the power source and contact Fehom customer service at support@fehom.com. P.16...
-
Page 22: Special Notes
SPECIAL NOTES Do not insert any thin rods or When using the machine, When using the machine, please hard items into the machine to keep it away from any heating please do not put it on a soft prevent malfunctions and or uneven ground to prevent furnaces, electric kettles and dangers. -
Page 23: Warranty And Contact Us
Warranty Fehom offers a 12-month warranty to all of our products together with the original proof of purchase when a defect occured, including those newly purchased and unused, from Fehom or through an authorized reseller, wholly or substantially, or as a result of faulty manufacturing parts, or workmanship during the Warranty Period. - Page 24 @Fehom @Fehom @Fehom www.fehom.com @Fehom We are expecting to see our products fulfill your life and hear your voice. Your satisfaction means a lot to us. Please tag us if you share a snap on your social media. www.fehom.com...
