Conettix Cellular Communicators

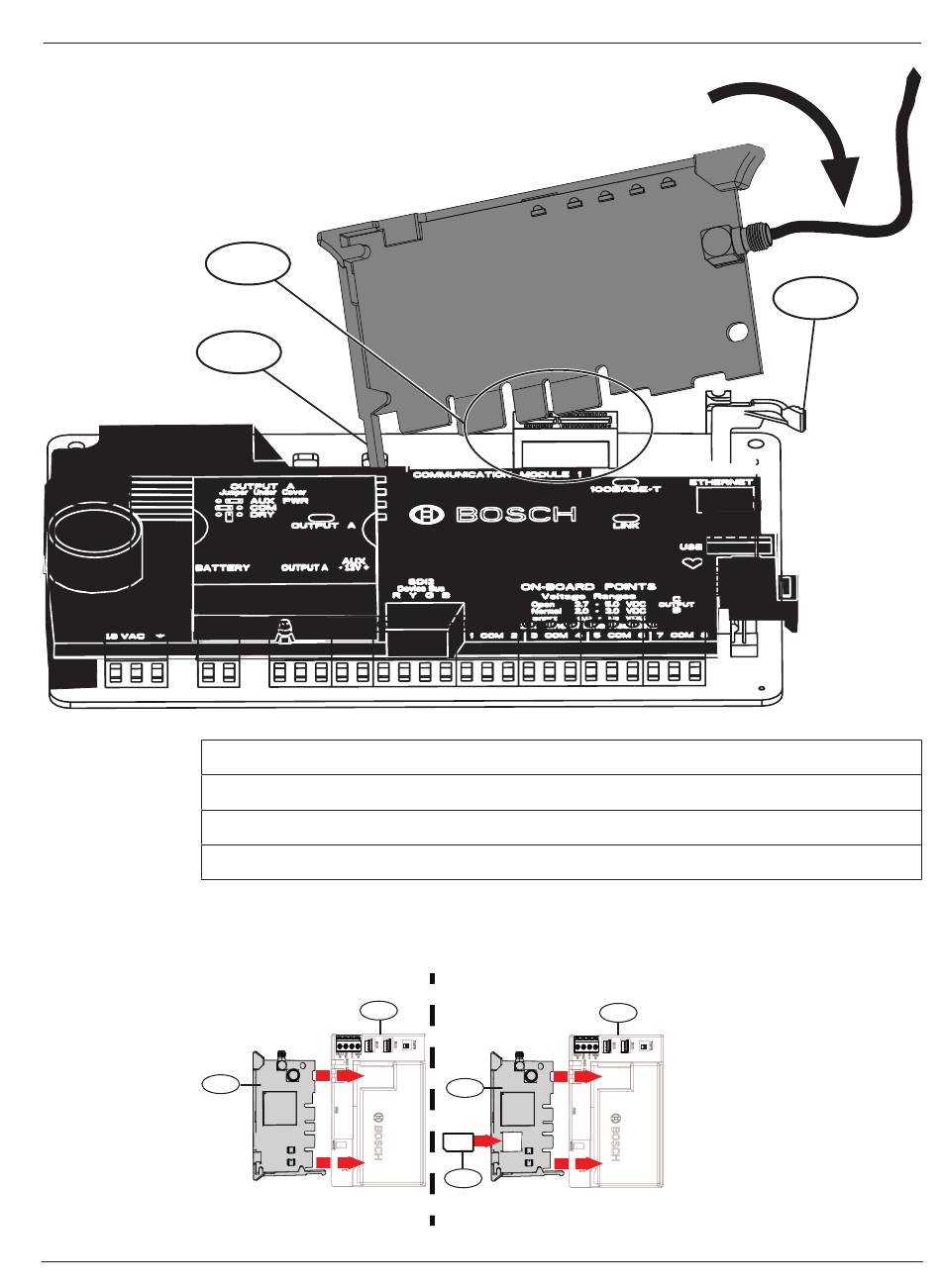

Figure 3.5: Communicator installation (B6512 control panel shown)
Callout - Description
1 - Support leg inserted into the compatible device support holes
2 - PCB metal contacts resting on the on-board connector
3 - Plug-in communicator retention clip
Plug-in communicator interface installation
1.
2.
2
Figure 3.6: Communicator installation (B450 shown)
Bosch Security Systems B.V.
2
1
Insert the communicator into the slot of the plug-in communicator interface.
Push in until you feel it "click" into place.
3
2
1
Installation Manual
Installation | en
3
2020.02 | 04 | F.01U.345.070
11
3
