Repair
Cooling system
Special tools
Special tool
Tab. 47: Special tools
Consumables and equipment
– Vaseline
– Rags
– Cleaner
Overview

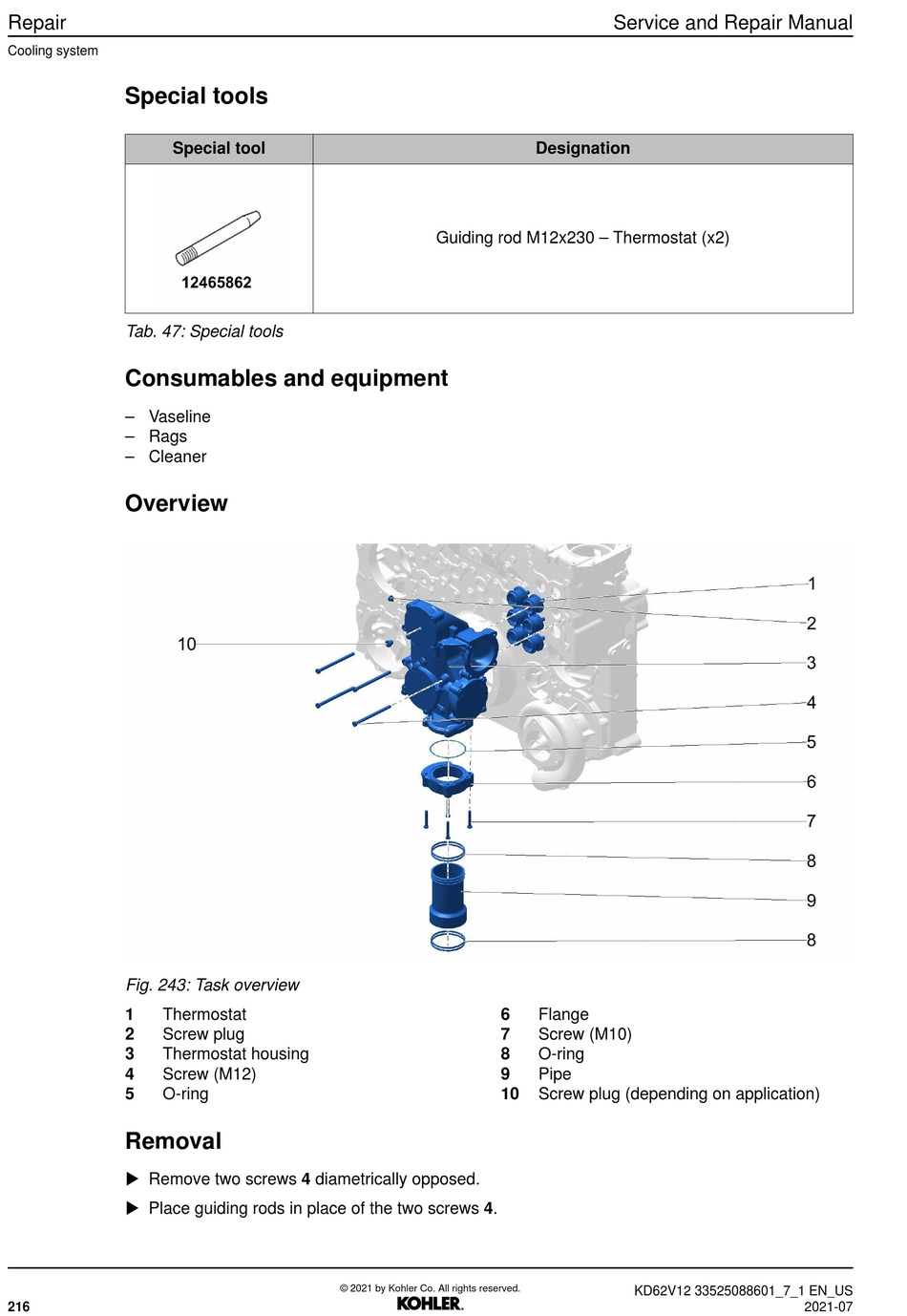

Fig. 243: Task overview
1 Thermostat
2 Screw plug
3 Thermostat housing
4 Screw (M12)
5 O-ring
Removal
u Remove two screws 4 diametrically opposed.
u Place guiding rods in place of the two screws 4.
216
Guiding rod M12x230 – Thermostat (x2)
6
7
8
9
10
© 2021 by Kohler Co. All rights reserved.
Service and Repair Manual
Designation
Flange

Screw (M10)

O-ring
Pipe
Screw plug (depending on application)
KD62V12 33525088601_7_1 EN_US
2021-07
