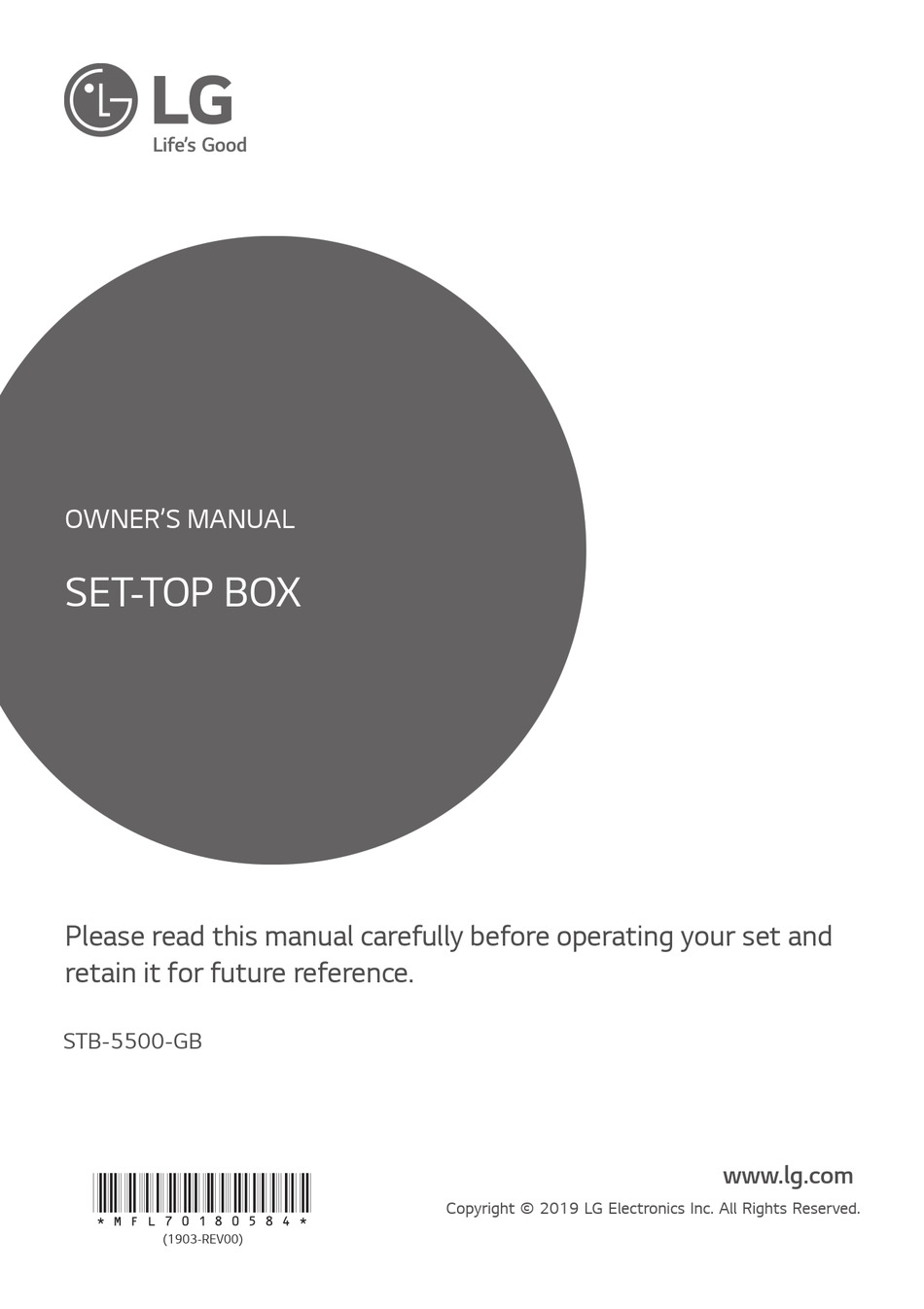

- Page 1 OWNER’S MANUAL SET-TOP BOX Please read this manual carefully before operating your set and retain it for future reference. STB-5500-GB www.lg.com *MFL70180584* Copyright © 2019 LG Electronics Inc. All Rights Reserved. (1903-REV00)
- Page 2 Warning! Safety instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 • Install the product where no radio wave occurs. • Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. •...
- Page 4 • Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. - The product can be deformed or fire can break out due to overheating inside the product. • Install the product on a flat and stable place that has no risk of dropping the product. - If the product is dropped, you may be injured or the product may be broken.
- Page 5 Otherwise, this may result in fire or electric shock. • Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.
-
Page 6: Assembling And Preparing
Assembling and preparing Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. •... -
Page 7: Separate Purchase
Set-Top Box Owner’s manual Power Cord / AC-DC Adapter (Depending on model) HDMI Cable TLM Cable A/V Adapter Cable Dual Lock ™ (4 EA) Screw (M6 x L18) (1 EA) Spacer (1 EA) IR Receiver (1 EA) Rubber (6 EA) Separate purchase Separate purchase items can be changed or modified for quality improvement without any notification. -
Page 8: Parts And Components
Parts and components Front Panel Power Indicator Rear Panel... - Page 9 How to use rubber (optional) (Image shown may differ from your product.) Fix the rubber to the Set-Top Box and use it when you want to. 1 Attach the rubber to the bottom of the product as shown in the image. 2 Press firmly the whole part of Rubber to ensure firm fastening.
-
Page 10: How To Use Dual Lock
How to use Dual Lock (optional) (Image shown may differ from your product.) Fix the Set-Top Box to the TV and use it when you want to. 1 Attach the Dual Lock ™ in pairs first. Press firmly the whole part of Dual Lock ™... -
Page 11: Making Connections
Making connections Antenna connection Connect the Set-Top Box to a wall antenna socket with an RF You can connect various external devices to the product. For cable (75 Ω). more information on external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. -
Page 12: Satellite Dish Connection
Adapter connection Satellite dish connection Connect the Set-Top Box to a satellite dish to a satellite socket with a satellite RF cable (75 Ω). Power Cord POWER 13/18V 700mA Max Satellite IN Satellite Dish AC-DC Adapter • Please be sure to connect the Set-Top Box to the AC-DC power adapter before connecting the Set-Top Box’s power plug to a wall power outlet. -
Page 13: Other Connections
Other connections Connect your Set-Top Box to external devices. For the best picture and audio quality, Connect the external device using an HDMI cable as shown. Some separate cable is not provided. • Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the Set-Top Box. - Page 14 Rear TV / Monitor RS-232C IN HDMI IN DVI IN ETHERNET HDMI Cable TLM Cable 13/18V 700mA Max DISPLAY ANTENNA/ SERVICE AV IN IR IN POWER CONTROL AUDIO OUT CABLE IN Satellite IN A/V Adapter Cable GND IR +3.5 V DIGITAL External IR receiver AUDIO IN...
-
Page 15: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 16: Maintenance
Maintenance Cleaning your Set-Top Box Clean your Set-Top Box regularly to keep the best performance and to extend the product lifespan. To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. -
Page 17: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. MODEL STB-5500-GB Dimensions (W x H x D) (mm) 233 x 29.8 x 180.5 Weight (kg) 0.76 Power requirement 19 V 2.7 A Manufacturer: APD... - Page 18 Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % (Depending on country) Digital TV Analogue TV PAL B/B, PAL B/G, PAL D/K, PAL-I DVB-T/T2¹...
- Page 19 HDMI-DTV Supported Mode HDMI-PC Supported Mode (Only HDMI IN 1 and HDMI IN 2) (Only HDMI IN 1 and HDMI IN 2) • PC audio not supported. Horizontal Vertical Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical Resolution Frequency (kHz) Frequency (Hz) 31.47 59.94 720 x 480...
-
Page 20: Photo Format
Photo Format File Format Format Resolution Minimum: 64 (W) x 64 (H) .jpeg, .jpg, .jpe JPEG Maximum Normal Type : 15,360 (W) x 8,640 (H) / Progressive Type: 1,920 (W) x 1,440 (H) Minimum: 64 (W) x 64 (H) .png Maximum: 5,760 (W) x 5,760 (H) Minimum: 64 (W) x 64 (H) .bmp... - Page 21 Video Codec Extension Codec Video VC-1 Advanced Profile (WMVA excluded), VC-1 Simple and Main Profiles .asf .wmv Audio WMA Standard (WMA v1/WMA Speech excluded) Video XViD(except 3 warp-point GMC), H.264/AVC, Motion Jpeg, MPEG-4 .avi MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM, Audio .mp4 Video...
- Page 22 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. • ...
- Page 24 Record the model number and serial number of the Set-Top Box. Refer to the label on the cover and quote this information to your dealer when requiring any service. MODEL SERIAL NO.
