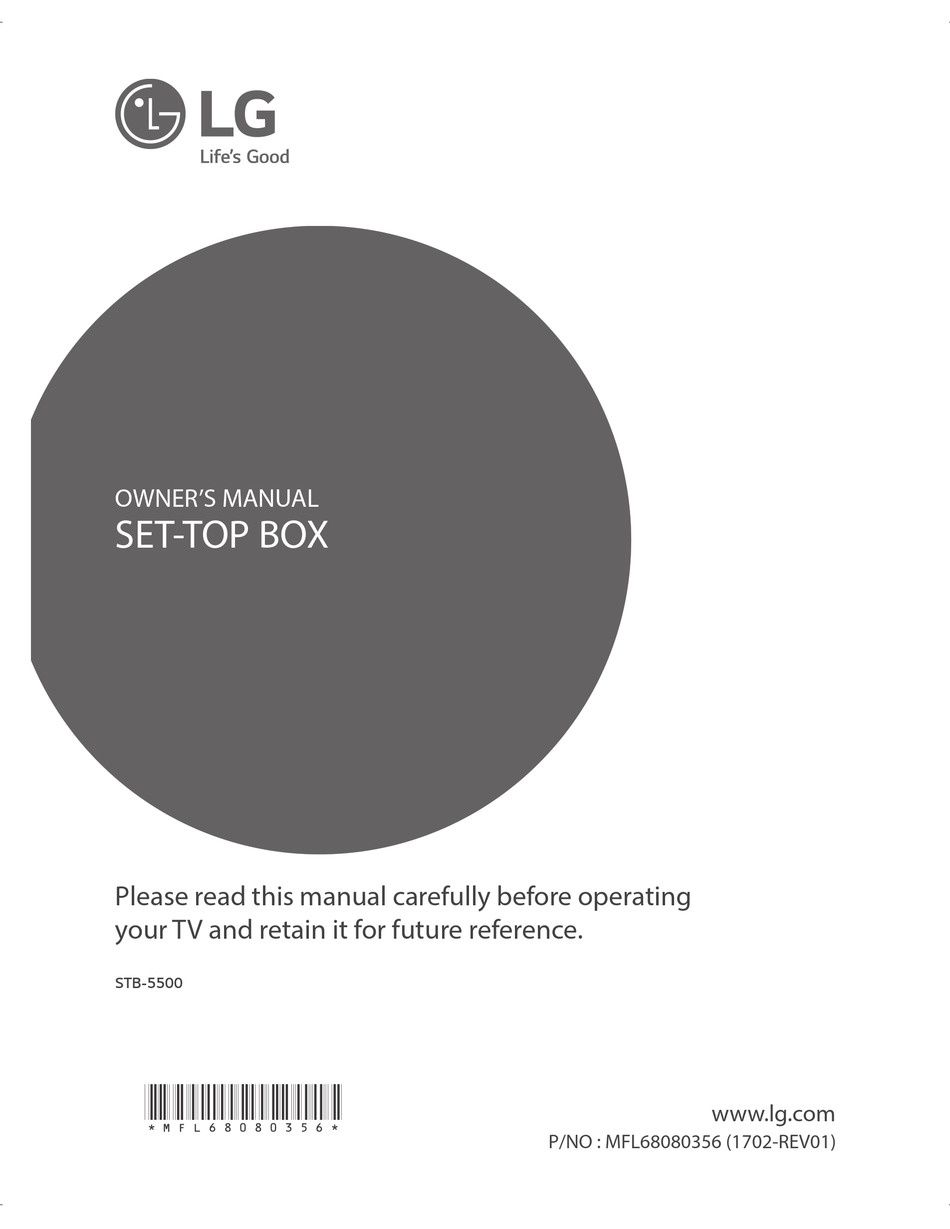

- Page 1 OWNER’S MANUAL SET-TOP BOX Please read this manual carefully before operating your TV and retain it for future reference. STB-5500 *MFL68080356* www.lg.com P/NO : MFL68080356 (1702-REV01)
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. • Protect the power cord from being walked on or pinched particularly at plugs, convenience CAUTION receptacles, and the point where they exit from RISK OF ELECTRIC SHOCK the apparatus. - Page 3 • Do not attempt to modify this product in any device, and have the cord replaced with an exact way without written authorization from LG replacement part by an authorized servicer. Electronics. Unauthorized modification could •...
- Page 4 This may damage the product and cause it to fall. • Use only an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product deformation.
-
Page 5: Assembling And Preparing
ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. Set-Top Box Owner’s Manual Power Cord / AC-DC Adapter... -
Page 6: Parts And Components
Parts and Components Front Panel USB IN 2 EXTERNAL MPI CONTROL HDMI IN 1 HDMI IN 2 USB IN 1 MPI/MTI TELEVISION CONTROL Back Panel RS-232C TELEVISION AUDIO LINE OUT CONTROL POWER EXTERNAL ANTENNA/ HDMI OUT IR IN CABLE IN OPTICAL AV IN SERVICE... -
Page 7: How To Use Dual Lock™ (Optional)
How to Use Dual Lock™ (Optional) (Image shown may differ from your product.) Fix the Set-Top Box to the TV and use it when you want to. 1 Attach the Dual Lock™ in pairs first. Press firmly the whole part of Dual Lock™ to ensure firm fastening of the protruding parts with each other. -
Page 8: Optional Extras
4 After removing the protection paper from the Dual Lock™, stick Set-Top Box to the TV. Insert and tighten the screw on the hole with the spacer attached. (When tightening the screws, be sure not to over tighten them to avoid deformation of the spacer.) M6 x L18 1 EA •... -
Page 9: Making Connections
MAKING CONNECTIONS • Image shown may differ from your product. You can connect various external devices to the product. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. -
Page 10: Other Connections
Other Connections Connect your Set-Top Box to external devices. For the best picture and audio quality, connect digital devices using an HDMI cable. • Image shown may differ from your product. • A separate cable is not provided. Front SI Box MPI/MTI USB IN 2 EXTERNAL... - Page 11 Back Speaker Digital Audio System TV / Monitor SPEAKER DIGITAL AUDIO IN HDMI IN DVI IN LEFT RIGHT RS-232C OPTICAL AUDIO ANTENNA/ EXTERNAL TELEVISION DIGITAL LINE OUT AV IN IR IN CABLE IN POWER CONTROL SERVICE AUDIO OUT Power Outlet ETHERNET RS-232C IN VIDEO...
-
Page 12: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to... -
Page 13: Maintenance
The software may be updated for improvement in performance. The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult LG Electronics and update new software versions according to the guidance provided by LG Electronics. -
Page 14: Specifications
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 % MODELS STB-5500-UA 233 x 29.8 x 180.5 (mm) Dimensions (W x H x D) 9.1 x 1.1 x 7.1 (inches) Weight 0.76 kg (1.6 lbs) - Page 15 HDMI (PC) supported mode HDMI (DTV) supported mode (For HDMI IN 1 and HDMI IN 2) (For HDMI IN 1 and HDMI IN 2) Horizontal Vertical Horizontal Vertical Resolution Resolution Frequency (kHz) Frequency (Hz) Frequency (kHz) Frequency (Hz) 640 x 350 31.46 70.09 31.46...
-
Page 16: Supported Video Formats
Supported Video Formats Supported Audio Formats • File type: .mp3 • .asf, .wmv [Bit rate] 32 Kbps ~ 320 Kbps [Video] VC-1 Advanced Profile (except for WMVA), [Sample freq.] 16 kHz ~ 48 kHz VC-1 Simple and Main Profiles • File type: .wav [Audio] WMA Standard (except for WMA v1 / [Sample freq.] 8 kHz ~ 48 kHz WMA Speech) -
Page 17: Limited Warranty
LG, in either its original packaging or packaging affording an equal degree of protection, to LG or an LG authorized service center. LG does not warrant or guarantee that there will be no risk or loss of program data during Product repair or replacement. Under some circumstances, you may be asked to provide credit card information for advanced shipment or cost of unreturned loaner product. - Page 18 (Causes beyond LG’s control include, but are not limited to, lightning strike, power surges, power outages, or water damage.); • Damage or failure caused by service performed by someone other than an LG technician or an LG authorized service technician;...
-
Page 19: Fcc Notice
FCC NOTICE FCC Radio Frequency Interference (For USA) Requirements (for UNII devices) This equipment has been tested and found to High power radars are allocated as primary users comply with the limits for a Class B digital device, of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. pursuant to Part 15 of the FCC Rules. -
Page 20: Note To Cable/Tv Installer
(For Canada) [For product having the wireless function using 5 GHz frequency bands] • The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; •... - Page 24 The model and serial numbers of the product are LG Customer Information Center located on the back and on one side of the product. For inquires or comments, visit www.lg.com or call; Record them below should you ever need service. MODEL...
