TABLE OF CONTENTS TABLE OF CONTENTS Important Safety Instructions Refrigerator Care and Cleaning 16-17 Requirements for Ground Connection Refrigerator Cleaning Outside Inside Parts and Features Door Lining & Gaskets Plastic Parts (Covers and Panel) Back Cover Refrigerator Installation 5-11 Replacing Refrigerator Lights Power Interruptions When Going on Vacation Installation...
IMPORTANT SAFETY INSTRUCTIONS SAFETY MESSAGES This manual contains several important safety notices. Always read and obey all of the following safety messages. This is the safety alert symbol. This symbol is a warning to potential dangers that could cause death, injury or damage to you, others or the product.
RECOMMENDED GROUNDING METHOD If the power cord is damaged, it must be replaced by Your refrigerator must always be plugged to its own our service center or qualified LG technician to avoid outlet which is adequately grounded. The energy current any risk.
PARTS AND FEATURES Use this page to become more familiar with the parts and features of your refrigerator. Page references are included or your convenience. NOTE: This guide covers several models. The refrigerator you have purchased may have some or all of the items listed below.
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION INSTALLATION WARNING 1. Avoid placing the unit near heat sources, direct sunlight, or humidity. EXCESSIVE WEIGHT HAZARD 2. To avoid vibration, the unit should be leveled. If needed, Use the assistance of two or more persons to move or adjust the leveling screws to compensate for an install the refrigerator.
REFRIGERATOR INSTALLATION HOW TO REMOVE AND INSTALL THE REFRIGERATOR DOORS If entrance is less than 35 inches wide, the refrigerator’s door will need to be removed. IMPORTANT: Before starting, turn off and unplug the refrigerator. Remove all food and the racks from the doors. TOOLS YOU MIGHT NEED OR USE 1/4 in ( 6 mm) 3/8 in ( 10 mm)
Page 9
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION Fig. 9 Fig. 6 To replace doors, begin with refrigerator door and then follow with freezer door. 4. Replacing Freezer Door Set the freezer door onto the Middle Hinge pin (Figure 10). 3. Replacing Refrigerator Door Place upper hinge in the top of the freezer door and line up the hinge with the holes in top of refrigerator.
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION HOW TO REVERSE AND INSTALL THE REFRIGERATOR DOORS NOTE: Door reversal must be done by an authorized installer or service person. You may find it more convenient to have the doors converted from the left opening type (factory installed) to the right opening type.
Page 11
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION 2. Reversing and Reinst alling Refrigerator Door Using a ¼” socket wr ench, loosen and remove Hinge Pin fr om the Middle Hinge Bracket. Remove washer undernea th the middle hinge and set aside. NOTE: At this point the door will be loose.
Page 12
REFRIGERATOR INSTALLATION Flip the Middle Hinge Bracket, (flange will now be on top) position it on left side of the refrigerator and reattach Door with two bolts and a Phillips screwdriver. Place the Closer/ refrigerator door down over the pin on the bottom hinge. Stop Place the washer between the refrigerator door and Hinge...
REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION REFRIGERATOR INSTALLATION CLOSING THE DOORS AND LEVELING To avoid vibration, the unit must be leveled. If necessary, adjust the leveling legs to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing.
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR ENSURING PROPER AIR CIRCULATION ADJUSTING THE CONTROLS In order to obtain stable temperature, the air must flow Your refrigerator has two controls that allow you to between the freezer and refrigerator sections. As shown regulate the temperature the freezer and refrigerator in the illustration below, the cold air enters through compartments.
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR ADJUSTING CONTROL SETTINGS FOOD STORAGE GUIDE Give the refrigerator time to cool down completely before ITEMS HOW TO STORE adding food. It is best to wait 24 hours before adding Storing Fresh Food Wrap or store food in the food to the refrigerator.
USING YOUR REFRIGERATOR USING YOUR REFRIGERATOR Do not use: Adjusting Shelves Bread Remove shelves from the shipping position and replace Plas o safe f storing. shelves in the position you want. Containers seals. stic. To remove a shelf: Tilt up the back of the shelf in the Thin wr ot wat roof.
USING YOUR REFRIGERATOR ICE TRAY Pour potable water to the indicated level in the picture. Do not overfill with water or ice cubes will be difficult to remove. For quick freezer, adjust the freezer dial to 3. Do not bend the ice tray, dping so may result in damage to the tray.
REFRIGERATOR CARE AND CLEANING NOTE: Back Cover should only be WARNING removed by a qualified technician. EXPLOSION HAZARD In order to get an efficient performance of your refrigerator, BACK clean the back cover of it at least COVER twice a year. REPLACING REFRIGERATOR LIGHTS Do not use flammable cleaners.
Follow the instructions below to use the audible diagnosis N OTE method. • Launch the LG ThinQ application and select the Smart • The application is subject to change for Diagnosis feature in the menu. Follow the instructions for appliance improvement purposes without audible diagnosis provided in the LG ThinQ application.
Page 20
TROUBLESHOOTING GUIDE TROUBLESHOOTING GUIDE UNDERSTANDING SOUNDS YOU MAY HEAR Your new refrigerator may make sounds that your old one did not make. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds you may hear and what may be causing them.
TROUBLESHOOTING GUIDE TROUBLESHOOTING GUIDE Problem Possible Causes Solutions The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage (refer to Electrical & Grounding Requirements). An LED light has malfunctioned. Before proceeding to replace LED, unplug the refrigerator or turn off power at the circuit Lights do not breaker or fuse box.
Page 22
TROUBLESHOOTING GUIDE TROUBLESHOOTING GUIDE Problem Possible Causes Solutions The refrigerator is not level. See the Leveling and Door Alignment section. Food packages are blocking the Rearrange food containers to clear door and door open. door shelves. The ice bin, crisper cover, pans, Push bins all the way in and put crisper cover, shelves, door bins or baskets are pans, shelves and baskets into their correct...
Page 23
TROUBLESHOOTING GUIDE TROUBLESHOOTING GUIDE Problem Possible Causes Solutions The air vents are blocked. Cold air circulates Locate air vents by using your hand to sense from the freezer to the fresh food section airflow and move all packages that block and back again through air vents in the wall vents and restrict airflow.
Page 24

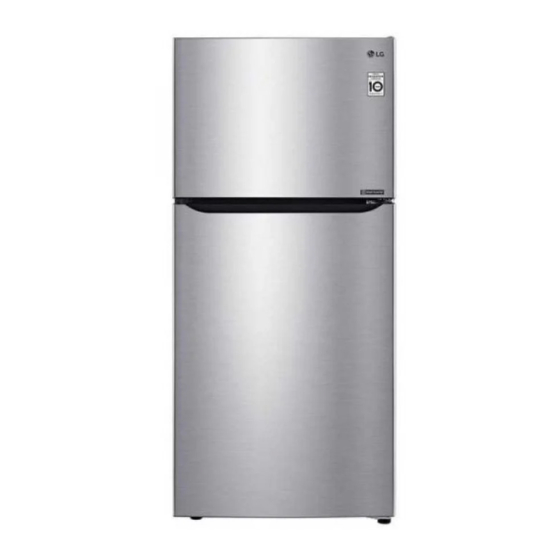

Place food with a high water content toward too close to the cold air discharge vent. the front of the refrigerator. SPECIFICATIONS MODELS: LT24CBBVLN / LT24CBBWLN / LT24CBBVLH / LT24CBBWLH / LT20CBBVIN / LT20CBBWIN ENGLISH PRODUCT FICHE Trade Mark LG Electronics...
