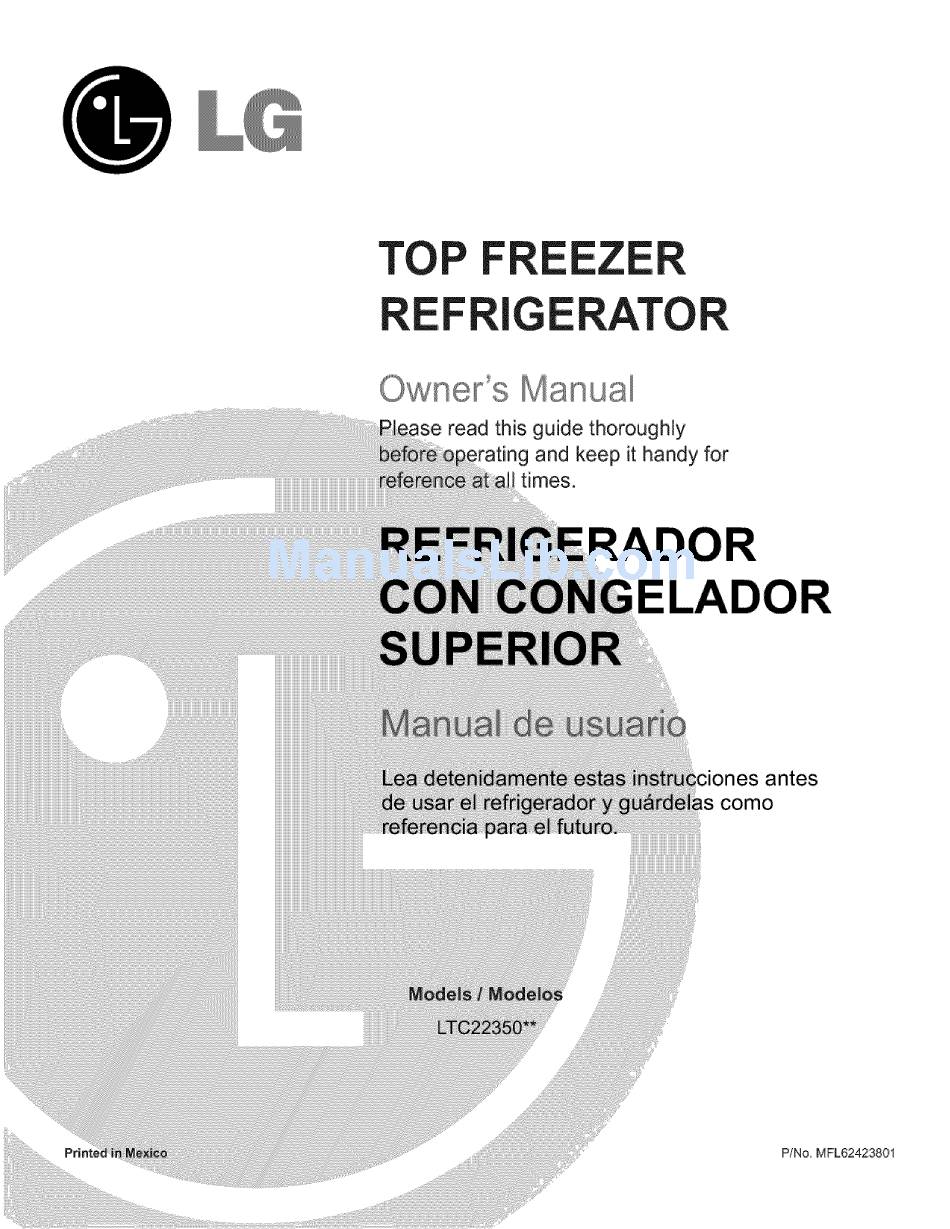

LG LTC22350ST Owner's Manual

Top freezer refrigerator
Hide thumbs Also See for LTC22350ST:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
TOP
F
F
GE
1"OR
0 w ner °s Manuai
_seread this guide thoroughly
and keep it handy for
times.
DOR
ELADOR
como
i
P/No, MFL6242:3801

Advertisement

Table of Contents
loading

Related Manuals for LG LTC22350ST

Summary of Contents for LG LTC22350ST

  • Page 1 1"OR 0 w ner °s Manuai _seread this guide thoroughly and keep it handy for times. ELADOR como P/No, MFL6242:3801...
  • Page 2 English Version Crisper Humidity Control Door Racks Warranty Card Door Bin Safety Instructions Grounding Requirements Dairy Corner/Can Dispenser Parts and Features Vitabox 23-24 Refrigerator Installation Care and Cleaning General Cleaning Tips Unpacking Your Refrigerator Installation Outside Base Grille Inside Walls Door Liner and Gaskets Removing, Reversing and Replacing...

  • Page 3: Customer Assistance

    LIMITED WAR AN United States of America LG Electronics will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use during the warran_ period listed below from the date of original purchase.
  • Page 4 Estados Unidos de America LG Electronics reparara o en su defecto reemplazar_ sin cargo, el producto defectuoso en material o mano de obra bajo uso normal durante el periodo de garantia que se menciona a continuacibn desde la fecha original de...
  • Page 5 This guide contains many important safety' messages. Always read and obey all safety messages. This is the safety' alert symbol It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product, All safety messages will be preceded by the safety' alert symbol and the hazard signal word DANGER, WARNING or CAUTION.
  • Page 6 BEFORE YOU THROW AWAY Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still YOUR OLD REFRIGERATOR dangerous...even if they will sit for "just a few days." If OR FREEZER you are getting rid d your old refrigerator, please follow the instructions at right to help prevent a_idents.
  • Page 7 Usethissection to become morefamiliar w iththeparts andfeatures. Pagereferences a reincluded f oryour convenience. NOTE:This guide covers several different models,The refrigerator you have purchased may have some or all of the items listed below.The locations of the features shown _low may not match your model, Freezer Door Bin Ice Bin* Dairy Comer...
  • Page 8 Usethissection to become morefamiliar w iththeparts andfeatures. Pagereferences a reincluded f oryour convenience. NOTE:This guide covers several different models,The refrigerator you have purchased may have some or all of the items listed below.The locations of the features shown _low may not match your model, Freezer Door Bin CustomCube Ice maker Dairy Comer...

  • Page 9: Unpacking Your Refrigerator

    3. Install this appliance in an area where the temperature is between 55°F (13°C) and 110°F (43°C.) If the temperature around the appliance is too low or high, Excessive Weight Hazard cooling ability may lessen. Use two or more people to move and install refrigerator_ NEXT Failure to do so can result in back or other injury.

  • Page 10: Refrigerator Door

    REMOVING,REVERSING (OPTIONAL) AN D REMOVE REFRIGERATOR DOOR REPLACING REFRIGERATOR DOORS * Loosen and remove the 2 bolts and the phillips You may find it more convenient to have the doors headscrew to remove the Middle Hinge Bracket from converted from the left-opening type (factory installed) refrigerator housing Set parts aside, to the right-opening type,, Directions refer to the right...

  • Page 11: Replace Refrigerator Door

    REPLACE REFRIGERATOR DOOR Place Upper Hinge's Pin in the top d freezer door and line up the Upper Hinge with holes in top of Place Hinge Pin of Middle Hinge Bracket inside refrigerator. Use the 3 bolts to replace Hinge (Fig. 10). Hinge Pin Insert on top of door (Fig, 7), Hold door in place and line up the Middle Hinge Bracket with the holes in refrigerator housing.

  • Page 12: Reverse Freezer Door

    REVERSE FREEZER DOOR * Move the Hinge Pin insert Bracket to the other side of the door, keeping the same orientation, and move • Gently pry off the Top Hinge Cover with a flat head the Hinge Pin insert into the hole on the ieft side screwdriver and remove (see Fig.13).
  • Page 13 REVERSE AND REATTACH REFRIGERATOR * REMOVE base grill, Using a 1/&-inchsocket wrench, loosen and remove See BASE GRILL INSTRUCTIONS. Hinge Pin from the Middle Hinge Pin Bracket * Remove the washer from the Bottom Hinge Pin (Fig.22), Remove washer underneath the middle hinge and set aside •...
  • Page 14 • At this point, remove the Decorative Bolt on bottom on • Take out the Hinge Pin insert and move the Bracket to refrigerator housing from the left side of refrigerator the other side of the door, keeping the same orientation (Fig.
  • Page 15 • Following illustration, flip the Middle Hinge Bracket (Flange * Tighten bolts. Force*fit Top Hinge Cover over Top will now be on top) and position on left side of refrigerator Hinge. and re-attach with two bolts and a Phillips screw. (Fig. 32). •...

  • Page 16: Leveling And Door Closing

    DOOR ALIGNMENT LEVELING AND DOOR CLOSING If the space between your doors is uneven, follow the To avoid vibration, the unit must be leveled, if necessary, instructions below to align the doors: adjust the Leveling Legs to compensate for unevenness of the floor.

  • Page 17: Ensuring Proper Air Circulation

    ENSURING PROPER AIR CIRCULATION SETTING THE CONTROLS In order to ensure proper temperatures, air must flow • Your refrigerator has two controls to set the temperatures between the refrigerator and freezer sections. As shown one in the refrigerator compartment, and other in the in the illustration below, cool air enters through the bottom freezer _mpartment.

  • Page 18: Adjusting Control Settings

    ADJUSTING CONTROL SETTINGS FOOD STORAGE GUIDE Storing Fresh Food - Give the refrigerator time to cool down completely before Wrap or store food in the refrigerator in airtight and adding food It is best to wait 24 hours before you put moisture-proof matedal unless otherwise noted.

  • Page 19: Frozen Food

    STORING FROZEN FOOD NOTE: For further information about preparing food for freezing or food storage times, check a freezer guide or reliable cookbook. Successful freezing depends on the correct packaging. Your freezer will not quick-freeze any large quantity d When you close and seal the package, it must not allow fo_.

  • Page 20: Refrigerator Shelves

    REFRIGERATOR SH ELVES Slide Out Shelves (On Some Models) You can slide some glass shelves in and out of your The shelves in your refrigerator are adjustable to meet refrigerator as follows. your individual storage needs. This units are all glass shelves.

  • Page 21: Snack Corner

    SNACK CORNER (On Some Models) To remove the glass: While holding the snack corner with one hand, pull it 1. Lift up the glass after inserting a screwdriver under the forward slightly. Lift slightly and pull it out. crisper cover: 2.

  • Page 22: Door Racks

    DOOR RACKS VITABOX (On Some Models) The door racks may be removed for easier cleaning. Provides vitamins, to fruits and vegetables, to conserver fresh for long time. Snap-On Door Racks To remove the racks: 1. Remove all items in the door racks. 2, Push the rack away from the inside wail of the d_r and lift up the d_r rack (B).

  • Page 23: Inside Walls

    PLASTIC PARTS (covers and panels) Do not use paper towels, window sprays, abrasive cleansers or flammable fluids. These can scratch or damage the material. CONDENSER COILS Remove base grille. (See the base grille section ) Explosion Hazard Use a vacuum cleaner with an extended attachment to clean condenser coils.

  • Page 24: Power Interruptions

    POWER INTERRU PTIONS WH EN YOU GO ON VACATION if the electricity' in your house goes off, calJ the power If you choose to leave the refrigerator on while you company and ask how long it will be off.. are away, follow these steps to prepare your refrigerator 1.

  • Page 25: Normal Sounds You May Hear

    On some models NOTE: if the cube size is smaller or larger than you expected, you can regulate the size with the cube size button, (Normally caused by variations in water pressure,) Personal injury Hazard Every time you press the cube size bu_on, the indicator Avoid contact with the moving parts of the ejector light go up.

  • Page 26: Installation Instructions

    Two 1/4" outer diameter BEFORE YOU BEGIN compression nuts and 2 ferrules (sleeves) to This water line installation is not warranted by the connect the _pper tubing to refrigerator or icemaker manufacturer: the shutoff valve and the Follow these instructions carefully to minimize the risk d refrigerator water valve.
  • Page 27 INSTALLATION INSTRUCTIONS 7, CONNECT THE TUBING TO THE VALVE (CONTINUED) Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and FASTEN THE SHUT OFF VALVE connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve.

  • Page 28: Plug In The Refrigerator

    9. CONNECT THE TUBING TO THE 11.PLUG IN THE REFRIGERATOR Arrange the coil of tubing so NOTES: that it does not vibrate against the back of the refrigerator or Before making the connection to the refrigerator, be against the wall. Push the sure the refrigerator power cord is not plugged into refrigerator back to the wall.

  • Page 29: Sounds You May Hear

    The defrost timer will click when the automatic defrost UNDERSTANDING SOUNDS YOU MAY HEAR cycle begins and ends The thermostat controi (or refrigerator control, depending on the mode]) wi]I also Your new refrigerator may make sounds that your old one dick when cycling on and off.
  • Page 30 COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH Check _.., Then,.. The refrigerator that was replaced was an Modern refrigerators with more storage space require older model. more operating time. The room temperature is hotter than normal The motor will run longer under warm conditions At normal room temperatures, expect your motor to run about 40% to 80% d the time.
  • Page 31 ICE HAS OFF-TASTE OR ODOR Check if... Then,,, The icemaker was recently installed. Discard first few batches of ice to avoid discolored or off-flavored ice. The ice has been stored for too long, Throw away old ice and make new supply, The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food either compartment,...
  • Page 32 AUTOMATIC ICEMAKER DOES NOT WORK Check if,,, Then,,, lcemaker power switch in the O (off) position, Move the switch to the I (on) position, Water supply turned off or not connected. See the Connecting the Water Line section. Freezer compartment t_ warm, Wait 24 hours for the freezer to reach its ideal temperature, Piled up cubes in the storage bin cause the icemaker Level cubes by hand.
  • Page 33 L_ Ei÷@i...
