Intermatic AG48013 Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS • SAVE THESE INSTRUCTIONS
Risk of Fire or Electric Shock
WARNING
• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.
• Intended for indoor or outdoor use.
• Installation and/or wiring must be in accordance with national and local electrical code and/or Canadian Electrical Code requirements.
• Installation and service to be performed by a qualified licensed technician or electrician.
• Suitable for use on a circuit capable of delivering not more than 50,000 rms symmetrical amperes.
• This unit contains no serviceable parts.
AVERTISSEMENT
• L'installation et/ou le câblage doivent être conformes aux exigences du code de l'électricité local en vigueur et/ou du Code canadien de l'électricité.
• L'installation et l'entretien doivent être effectués par un technicien ou électricien qualifié.
• Convient à un circuit capable de fournir PAS plus de 50 000 A efficaces symétriques.
• Cet appareil ne contient aucune pièce réparable.
NOTICE
• Thoroughly read instructions before installing SPD Unit.
• This product does not protect against lightning strikes.
Type 1 installation:
A typical installation of a type 1 SPD will be connected between the secondary of the service transformer and the line side of the service
panel. This installation is intended to be installed without overcurrent protection to the SPD.
1. Determining location:
• Ensure conductor lengths are as short and straight as possible for best performance. Do not coil excess wire. The SPD functions
best if all bends in wires are rounded, ideally to a 4" radius. Hard 90 degree bend will reduce efficiency. Cut all leads to the correct
length. Do not coil excess leads.
• Install appropriate weatherproof fittings if the unit is to be mounted outside.
• Bracket part number AG1BRKT is also available if needed.
2. Connect wires as shown within diagrams. If your application does not match one of the diagrams below consult your supplier.
3. Ensure all mounting and connections are correct and secure. Once energized the green indicator LED will be ON.
Type 2 installation:
A typical installation of a type 2 SPD will be connected to the load side of the service panel and is intended to be installed with overcurrent
protection to the SPD.
1. Determining location:
• Ensure conductor lengths are as short and straight as possible for best performance. Do not coil excess wire. The SPD functions
best if all bends in wires are rounded, ideally to a 4" radius. Hard 90 degree bend
will reduce efficiency. Cut all leads to the correct length. Do not coil excess leads.
• Install appropriate weatherproof fittings if the unit is to be mounted outside.
• Bracket part number AG1BRKT is also available if needed.
2. Connect the green wire from the SPD to the ground bus in the panel.
• Connection may also be made to the neutral/ground bus if panel does not have a separate ground bus.
3. Connect black wire to circuit breaker.
4. Ensure all mounting and electrical connections are correct and securely fastened. Once energized the green indicator LED will be ON.
Maintenance:
• AC Voltage SPD:
• Periodically check SPD to ensure green indicator LED is ON. If green LED is OFF, protection has diminished and the SPD should be
replaced immediately.
Line
480 V
277 V
Line
277 V
Ground

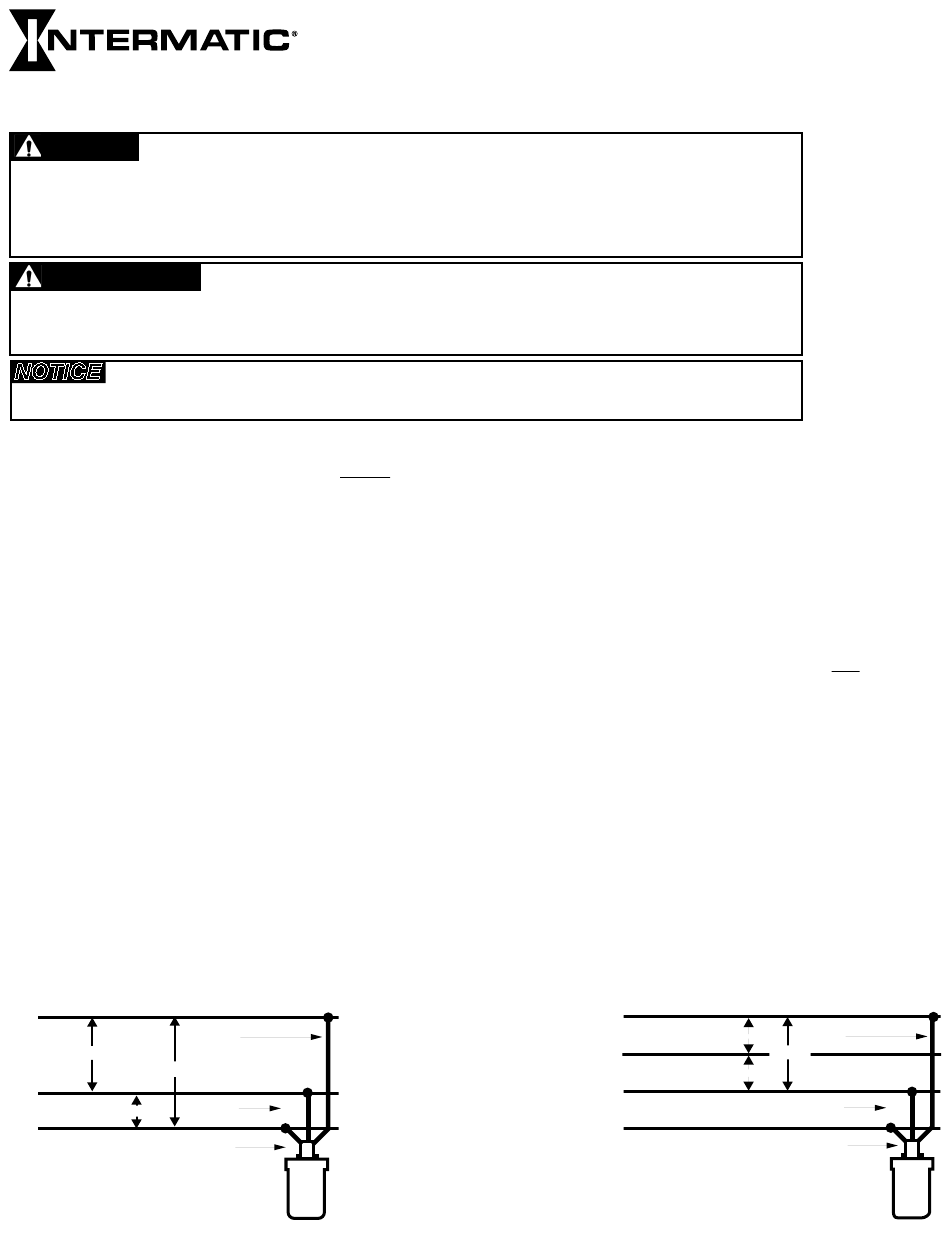

480 VAC Two wire plus Ground
from a three phase panel
Found at connections for individual
pieces of equipment such as motors,
water heaters and parking lot lights.
Type 1 or Type 2 Surge Protection Device (SPD)
Risque d'incendie ou de choc électrique
277/480 VAC SINGLE PHASE
BLACK
WHITE
GREEN
INSTALLATION INSTRUCTIONS
Model AG48013
Line
277 V
Neutral
480 V
277 V
Line
Ground
277/480 VAC Three wire plus Ground
from a three phase panel
Found in lighting and parking lot light
circuits.
BLACK
WHITE
GREEN
