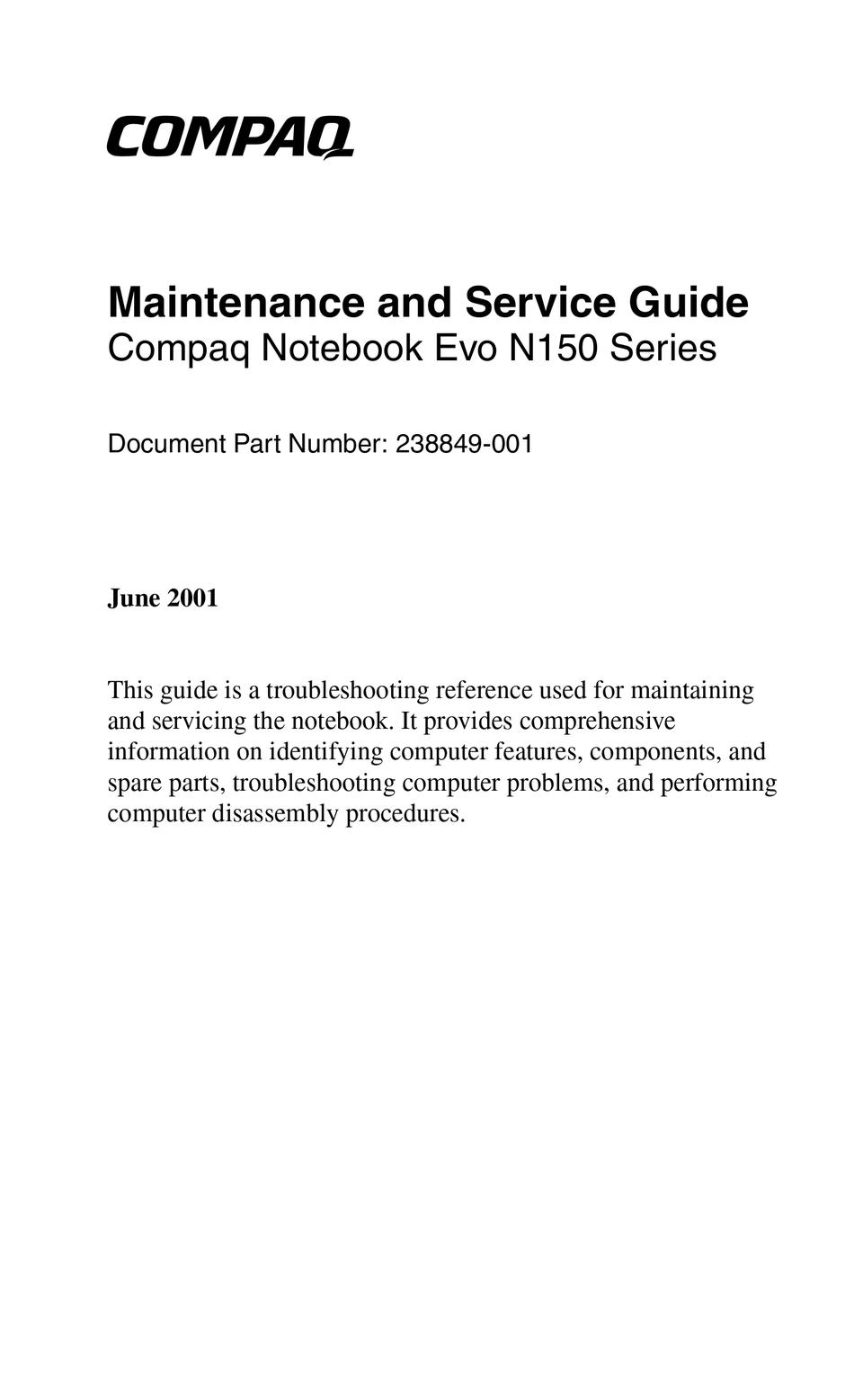

Page 1: Maintenance And Service Guide
Maintenance and Service Guide Compaq Notebook Evo N150 Series Document Part Number: 238849-001 June 2001 This guide is a troubleshooting reference used for maintaining and servicing the notebook. It provides comprehensive information on identifying computer features, components, and spare parts, troubleshooting computer problems, and performing...
Page 2 © 2001 Compaq Computer Corporation Compaq, the Compaq logo, Armada, and Deskpro Registered in U. S. Patent and Trademark Office. Evo is a trademark of Compaq Information Technologies Group, L.P. in the U.S. and other countries. Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft Corporation in the United States and other countries.
Page 3: Table Of Contents
1 Product Description 1.1 Models and Features ......1–1 Models ........1–2 Features .
Page 4 2.15 No Audio, Part 1 ..... . . 2–18 2.16 No Audio, Part 2 ..... . . 2–19 2.17 Non Functioning Device .
Page 5 5.8 EMI Shield ....... . 5–10 5.9 Top Cover....... . . 5–11 5.10 TouchPad .
Page 6: Product Description
1.1 Models and Features The Compaq Notebook Evo N150 Series offer advanced modularity, Intel Pentium III and Intel Celeron processors with 64-bit architecture, industry-leading Accelerated Graphics Port (AGP) implementation, and extensive multimedia support. Figure 1-1. Compaq Notebook Evo N150 Maintenance and Service Guide Product Description 1–1...
Page 7: Models
Optical drive designator Integrated communication Battery cells / type Operating system SKU# All computer models use configuration code JQKZ. 1–2 Table 1-1 Compaq Notebook Evo N150 Options N=Notebook P=Intel Pentium III 800=800 MHz T=TFT 4=14.x-inch 15=15.0 GB V=8X Max DVD-ROM drive...
Page 8 French Canada Germany Greece / Poland Hungary Israel Italy Korea The Netherlands Europe Australia Japan Maintenance and Service Guide Table 1-1 Compaq Notebook Evo N150 470013-663 Norway 470013-735 Portugal 470013-664 Russia 470013-737 Saudi Arabia 470013-662 Slovakia / Slovenia 470013-739 Spain...
Page 9 Australia Belgium Czech Republic Denmark France Germany Hungary Israel Italy Japan Japan French Canada European 1–4 Table 1-1 Compaq Notebook Evo N150 470013-658 The Netherlands 470013-731 Norway 470013-619 Portugal 470013-701 Russia 470013-620 Slovakia / Slovenia 470013-702 Spain 470013-703 Sweden /...
Page 10: Features
Features Processors, varying by computer model: 800-MHz Intel Pentium III Processor with 256-KB integrated cache 700-MHz Intel Celeron Processor with 128-KB integrated cache 64-MB high-performance Synchronous DRAM (SDRAM), expandable to 512 MB Integrated Trident CyberBlade i1 with AGP 2X support 14.1-inch, XVGA, TFT (1024 ×...
Page 11: Clearing A Password
Product Description Connectors for: RJ-11 modem universal serial bus stereo line out/headphone parallel serial external keyboard/mouse RJ-45 network external monitor AC power Stereo speakers providing Compaq PremierSound 16-bit stereo sound 1.2 Clearing a Password If the notebook you are servicing has an unknown password, follow these steps to clear the password.
Page 12: Power Management
4. Replace the RTC battery and reassemble the computer. 5. Connect AC power to the computer. Do not reinsert any battery packs at this time. 6. Turn on the computer. All passwords and all CMOS settings are clear. 1.3 Power Management The computer comes with a collection of power management features that extend battery operating time and conserve power.
Page 13: External Computer Components
Product Description 1.3 External Computer Components The external components on the front and left side of the computer are shown in Figure 1-2 and described in Table 1-2. Figure 1-2. Front and Left Side Components Front and Left Side Panel Components Item Component Security cable slot...
Page 14 Front and Left Side Panel Components (Continued) Item Component Air intake vent RJ-11 jack (internal modem models only) USB connector PC Card slots (2) PC Card eject buttons Stereo line-out/ headphone jack Stereo line-in jack Power light Battery light Hard drive Maintenance and Service Guide Table 1-2 Function...
Page 15 Product Description The computer right side and rear panel components are shown in Figure 1-3 and described in Table 1-3. Figure 1-3. Right Side and Rear Panel Components Right Side and Rear Panel Components Item Component Media Bay Infrared port 1–10 Table 1-3 Function...
Page 16 Right Side and Rear Panel Components (Continued) Item Component Parallel connector Serial connector Keyboard/mouse connector RJ-45 jack (network models only) USB connectors External monitor connector DC power jack Maintenance and Service Guide Table 1-3 Function Connects a parallel device. Connects a serial device. Connects an external keyboard or PS/2-compatible external mouse.
Page 17 Product Description The keyboard components are shown in Figure 1-4 and described in Table 1-4. Figure 1-4. Keyboard Components 1–12 Maintenance and Service Guide...
Page 18 Item Component through function keys Embedded numeric keypad Cursor control keys Windows application Windows logo key Caps lock key Maintenance and Service Guide Table 1-4 Keyboard Components Function Perform preset functions. Converts keys to numeric keypad. Move the cursor around the screen. Displays a menu when using a Microsoft application.
Page 19 Product Description The components on the top of the computer are shown in Figure 1-5 and described in Table 1-5. Figure 1-5. Top Components Item Component Power button Drive light indicator 1–14 Table 1-5 Top Components Function Turns on the computer. To turn off the computer, use the operating system Shut Down command.
Page 20 Item Component Diskette drive light Num lock light Caps lock light Scroll lock light Microphone Easy Access buttons (4) Stereo speakers (2) Right TouchPad button TouchPad Left TouchPad button Maintenance and Service Guide Table 1-5 Top Components (Continued) Function Turns on when the diskette drive in the Media Bay or the optional external diskette drive is accessed.
Page 21 Product Description The external components on the bottom of the computer are shown in Figure 1-6 and described in Table 1-6. Figure 1-6. Bottom Components Component Media Bay release latch Serial number 1–16 Table 1-6 Bottom Components Function Releases the Media Bay device from the connector.
Page 22 Bottom Components (Continued) Component Reset button Memory expansion compartment cover Hard drive Battery security latch Battery release latch Battery compartment Media Bay Maintenance and Service Guide Table 1-6 Function Manually resets the system if a failure occurs. Å WARNING: Resetting the computer will cause unsaved information to be lost.
Page 23: Design Overview
Product Description 1.4 Design Overview This section presents a design overview of key parts and features of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,” to identify replacement parts, and Chapter 5, “Removal and Replacement Procedures,” for disassembly steps. The system board provides the following device connections: Memory expansion board Hard drive...
Page 24: Troubleshooting
Å WARNING: Only authorized technicians trained by Compaq should repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board.
Page 25: Using The Phoenixbios Setup Utility
Troubleshooting Using the PhoenixBIOS Setup Utility The PhoenixBIOS Setup Utility (PSU) is built into the system. You can configure the system BIOS and modify or restore factory default settings, such as date and time, types of disk drives, power management, and password settings. To run PSU, press during system startup.
Page 26: Troubleshooting Flowcharts
Troubleshooting Flowcharts Troubleshooting Flowcharts Overview Section Description Initial troubleshooting No power, part 1 No power, part 2 No power, part 3 No power, part 4 No video, part 1 No video, part 2 Non functioning docking station No operating system (OS) loading 2.10 No OS loading from hard drive, part 1 2.11...
Page 27: Initial Troubleshooting
Troubleshooting 2.1 Initial Troubleshooting Begin Troubleshooting Is there power? Beeps, LEDs, or error Messages? Is there video? (no boot) Is the OS loading? Is there sound? 2–4 Go to Section 2.2, No Power Check LED board, speaker connections. Go to Section 2.6, No Video Go to...
Page 28: No Power, Part 2
2.2 No Power, Part 1 No Power (Power LED is off) Remove from docking station if applicable. Power up on battery power? Power up on AC power? Power up in docking station? 1. Reseat power cables in docking station and at the AC outlet. 2.
Page 29: No Power, Part 3
Troubleshooting 2.3 No Power, Part 2 Continued from Section 2.2, No Power, Part 1 Visually check for debris in battery socket and clean if necessary Power on? Check battery by recharging, moving to another computer, or replacing it. Power on? Done 2–6 Done...
Page 30: No Power, Part 4
2.4 No Power, Part 3 Continued from Section 2.3, No Power, Part 2 Plug directly into AC outlet. Power LED Reseat AC adapter in computer and at power source. Power on? Power outlet active? Replace power cord. Power on? Maintenance and Service Guide Done Done Internal or...
Page 31 Troubleshooting 2.5 No Power, Part 4 Continued from Section 2.4, No Power, Part 3 Open computer. Loose or damaged parts? Close computer and retest. Power on? Done 2–8 Reseat loose components and boards and replace damaged items. Replace the following items, if applicable. Check computer operation after each replacement: 1.
Page 32: No Video, Part 1
2.6 No Video, Part 1 No Video Docking Station Standalone or Docking Station? Standalone Internal or external display*? Internal External Adjust brightness. Video OK? Replace the following one at a time. Test after each replacement: 1. Cable between notebook and computer display (if applicable) Check for bent 2.
Page 33: No Video, Part 2
Troubleshooting 2.7 No Video, Part 2 Continued from Section 2.6, No Video, Part 1 Remove notebook from docking station, if connected. Adjust display brightness. Video OK? Check for notebook properly seated in docking station, bent pins on cable, and for monitor connection.
Page 34: Non Functioning Docking Station
2.8 Non Functioning Docking Station (if applicable) Reseat power cord in docking station and power outlet. Check voltage setting on docking station. Reset monitor cable connector at docking station. Docking station operating? Remove notebook, reseat all internal parts, and replace any damaged items in docking station.
Page 35: No Operating System (Os) Loading
Troubleshooting 2.9 No Operating System (OS) Loading Reseat power cord in docking station and power outlet. Note: Before beginning, always check cable connections, cable ends, and drives for bent or damaged pins. 2–12 No OS loading from Hard drive, go to Section 2.10.
Page 36: No Os Loading From Hard Drive, Part
2.10 No OS Loading from Hard Drive, Part 1 OS not loading from hard drive. Non- system disk message? Reseat external hard drive. OS loading? Boot from Check the setup utility for correct booting order. Boot from hard drive? Done Maintenance and Service Guide Go to Section 2.11,...
Page 37: No Os Loading From Hard Drive, Part 2
Troubleshooting 2.11 No OS Loading from Hard Drive, Part 2 Continued from Section 2.10, No OS Loading from Hard Drive, Part 1 CD or diskette in drive? Remove diskette and reboot. Boot from hard drive? Boot from diskette drive? Access hard drive? Go to...
Page 38: No Os Loading From Hard Drive, Part 1
2.12 No OS Loading from Hard Drive, Part 3 Continued from Section 2.11, No OS Loading from Hard Drive, Part 2. System files on hard drive? Virus on hard drive? Run SCANDISK and check for bad sectors. Can bad sectors be fixed? Fix bad sectors.
Page 39: No Os Loading From Diskette Drive
Troubleshooting 2.13 No OS Loading from Diskette Drive OS not loading from diskette drive. Non- System Disk message? Boot from another device? Diskette drive enabled in the setup utility? Diskette drive boot order. Change boot priority using the setup utility. 2–16 Reseat diskette drive.
Page 40: No Os Loading From Cd- Or Dvd-Rom Drive
2.14 No OS Loading from CD- or DVD-ROM Drive No OS loading from CD- or DVD-ROM drive. Boots from CD or DVD? Reseat drive. Maintenance and Service Guide Disk in drive? Install bootable disk. Done Boots from CD or DVD? Booting Section 2.17, from another...
Page 41: No Audio, Part 1
Troubleshooting 2.15 No Audio, Part 1 No audio. Notebook in docking station (if applicable)? Go to Section 2.16, No Audio, Part 2. 2–18 Turn up audio internally or externally. Undock Replace the following docking station components one at a time as applicable. Check after each change.
Page 42: No Audio, Part 2
2.16 No Audio, Part 2 Continued from Section 2.15, No Audio, Part 1. Audio driver in OS configured? Correct drivers for application? Connect to external speaker. Audio? Maintenance and Service Guide Reload audio drivers. Load drivers and set configuration in OS. Replace audio board and speaker...
Page 43: Non Functioning Device
Troubleshooting 2.17 Non Functioning Device Clear CMOS. Reattach device. Close notebook, plug in power, and reboot. Device boots properly? Done 2–20 functioning device Reseat device. Unplug the Non Functioning device from the notebook, inspect cables and plugs for bent or broken pins or other damage.
Page 44: Non Functioning Keyboard
2.18 Non Functioning Keyboard Keyboard not operating properly. Connect notebook to good external keyboard. External device works? Reseat internal keyboard connector (if applicable). Done Maintenance and Service Guide Replace system board. Replace internal keyboard or cable. Replace system board. Troubleshooting Done 2–21...
Page 45: Non Functioning Pointing Device
Troubleshooting 2.19 Non Functioning Pointing Device Pointing device not operating properly. Connect notebook to good external pointing device. External device works? Reseat internal pointing device connector (if applicable). Done 2–22 Replace system board. Replace internal pointing device or cable. Replace system board.
Page 46: Network Or Modem Connection
2.20 Network or Modem Connection No network or modem connection. Network or modem jack active? Digital line? NIC/modem configured in OS? Disconnect all power from the notebook and open. Reseat NIC/modem if applicable. Maintenance and Service Guide Replace jack or have jack activated.
Page 47: Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a reference for spare part numbers. 3.1 Serial Number Location When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer (Figure 3-1). Figure 3-1.
Page 48: Computer System Major Components
Illustrated Parts Catalog 3.2 Computer System Major Components Figure 3-2. Computer System Major Components 3–2 Maintenance and Service Guide...
Page 49 Computer System Major Components Item Description 14.1-inch, XGA, CTFT display Miscellaneous Plastics Kit Left hinge cover Right hinge cover Keyboard Czech Danish European French French Canadian German Hebrew Hungarian International Italian Japanese Miscellaneous Hardware Kit EMI shield TouchPad bracket Memory expansion compartment cover Top cover Cable Kit Display lid switch board...
Page 50 Illustrated Parts Catalog Computer System Major Components (continued) 3–4 Maintenance and Service Guide...
Page 51 Computer System Major Components (Continued) Item Description Speakers Left speaker Right speaker TouchPad (TouchPad bracket included in Hardware Kit, spare part number 239052-001) Heat sink PC Card assembly Hard drives 15 GB 10 GB System boards (includes 64 MB SDRAM) 800 MHz Intel Pentium III 700 MHz Intel Celeron Disk cell RTC battery...
Page 52 Illustrated Parts Catalog Computer System Major Components (continued) 3–6 Maintenance and Service Guide...
Page 53 Computer System Major Components (Continued) Item Description Mini PCI Communications Boards Type III mini PCI combination 56 Kbps modem/NIC board Type III mini PCI 56 Kbps modem board Media Bay devices Diskette drive 24X Max CD-ROM drive CD-RW drive 8X Max DVD-ROM drive Base enclosure Battery packs 8-cell Lithium ion (Li ion)
Page 54: Miscellaneous Plastics Kit Components
Illustrated Parts Catalog 3.3 Miscellaneous Plastics Kit Components Figure 3-3. Miscellaneous Plastics Kit Components Miscellaneous Plastics Kit Components Item Description Left hinge cover Right hinge cover PC Card doors Computer feet Hard drive bezel 3–8 Table 3-2 Spare Part Number 239039-001 Maintenance and Service Guide...
Page 55: Miscellaneous Hardware Kit Components
3.4 Miscellaneous Hardware Kit Components Figure 3-4. Miscellaneous Hardware Kit Components Miscellaneous Hardware Kit Components Item Description Memory expansion compartment cover TouchPad bracket EMI shield Maintenance and Service Guide Table 3-3 Spare Part Number 239052-001 Illustrated Parts Catalog 3–9...
Page 56: Cable Kit Components
Illustrated Parts Catalog 3.5 Cable Kit Components Figure 3-5. Cable Kit Components Item Description Microphone Display lid switch board Modem connector/cable 3–10 Table 3-4 Cable Kit Components Spare Part Number 239041-001 Maintenance and Service Guide...
Page 57: Mass Storage Devices
3.6 Mass Storage Devices Figure 3-6. Mass Storage Devices Item Description Diskette drive Hard drives 15 GB 10 GB Optical drives 24X Max CD-ROM drive CD-RW drive 8X Max DVD-ROM drive Maintenance and Service Guide Table 3-5 Mass Storage Devices Illustrated Parts Catalog Spare Part Number...
Page 58: Miscellaneous
Illustrated Parts Catalog 3.7 Miscellaneous Miscellaneous Spare Parts (not illustrated) Description Modems Type III mini PCI combination 56 Kbps modem/NIC board Type III mini PCI 56 Kbps modem board Modem adapters Czech German Hungarian Modem cable Modem cable adapters Australian Belgian French RJ-11 P55 adapters...
Page 59 Miscellaneous Spare Parts (not illustrated) (Continued) Description External AC adapter 50W slim AC adapter Logo kit Memory expansion boards 256 MB 128 MB 64 MB Screw kit (Includes the screws and screwlock listed below. Refer to Appendix C, “Screw Listing,” for more information about screw specifications and usage.) M 2.5 ×...
Page 60: Removal And Replacement Preliminaries
Removal and Replacement This chapter provides essential information for proper and safe removal and replacement service. 4.1 Tools Required You will need the following tools to complete the removal and replacement procedures: Magnetic screwdriver Phillips P0 screwdriver 5 mm socket Tool kit (includes connector removal tool, loopback plugs, and case utility tool) 4.2 Service Considerations...
Page 61: Plastic Parts
Removal and Replacement Preliminaries Plastic Parts Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions. Cables and Connectors Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.
Page 62 Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector. Handle drives on surfaces that have at least one inch of shock-proof foam. Avoid dropping drives from any height onto any surface. After removing a hard drive, CD-ROM drive, or a diskette drive, place it into a static-proof bag.
Page 63: Preventing Electrostatic Damage
Removal and Replacement Preliminaries 4.4 Preventing Electrostatic Damage Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases the discharge contains enough power to alter device parameters or melt silicon junctions.
Page 64: Workstation Precautions
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or non conductive foam. Use transporters and conveyers made of antistatic belts and roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials were selected to avoid static charging.
Page 65: Grounding Equipment And Methods
Removal and Replacement Preliminaries 4.7 Grounding Equipment and Methods Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megaohm ±10% resistance in the ground cords.
Page 66 Non-conductive plastic bags, tubes, or boxes Metal tote boxes Electrostatic voltage levels and protective materials Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities. Typical Electrostatic Voltage Levels Event Walking across carpet Walking across vinyl floor Motions of bench worker Removing DIPS from plastic tube Removing DIPS from vinyl tray...
Page 67: Removal And Replacement Procedures
Removal and Replacement Procedures This chapter provides removal and replacement procedures. All screws removed during disassembly are P0 Phillips screws. There are 64 screws and screwlocks in 13 different sizes that must be removed and replaced when servicing the computer. Make special note of each screw size and location during removal and replacement.
Page 68: Serial Number
Removal and Replacement Procedures 5.1 Serial Number Report the computer serial number to Compaq when requesting information or ordering spare parts. The serial number is located on the bottom of the computer (Figure 5-1). Figure 5-1. Serial Number Location 5–2 Maintenance and Service Guide...
Page 69: Disassembly Sequence Chart
5.2 Disassembly Sequence Chart Use the following chart to determine the section number to be referenced when removing computer components. Section Description Preparing the computer for disassembly Computer feet Hinge covers Keyboard Display EMI shield Top cover 5.10 TouchPad 5.11 Speakers 5.12 Microphone...
Page 70: Preparing The Computer For Disassembly
Removal and Replacement Procedures 5.3 Preparing the Computer for Disassembly Perform the following steps before disassembling the computer. Consult the computer Hardware Guide for instructions on the following steps: 1. Turn off the computer. 2. Disconnect the AC Adapter and all external devices. 3.
Page 71: Hinge Covers
5.5 Hinge Covers The hinge covers are included in the Miscellaneous Plastics Kit (spare part number 239039-001). 1. Prepare the computer for disassembly (Section 5.3). 2. Turn the computer top side up with the front facing you. 3. Open the computer. 4.
Page 72: Keyboard
Removal and Replacement Procedures 5.6 Keyboard Keyboard Czech Danish European French French Canadian German Hebrew Hungarian International Italian Japanese 1. Prepare the computer for disassembly (Section 5.3). 2. Remove the hinge covers (Section 5.5). 5–6 Keyboard Cover Spare Part Number Information 239054-221 239054-081 239054-021...
Page 73 3. Remove the two pewter M2.5 × 7.0 screws keyboard to the top cover (Figure 5-4). 4. Lift up the back edge of the keyboard and swing it up and forward 5. Release the zero insertion force (ZIF) connector the keyboard cable is connected and disconnect the keyboard cable Figure 5-4.
Page 74: Display
Removal and Replacement Procedures 5.7 Display 14.1-inch, XGA, CTFT display When the display screws are removed, the display assembly is unsupported. Make sure to provide support for the display assembly when removing the display screws. 1. Prepare the computer for disassembly (Section 5.3). 2.
Page 75 Removal and Replacement Procedures 5. Remove the display. T o ensure proper alignment of the display during replacement, loosely install the screws in the sequence indicated in Figure 5-6. Tighten the screws after all four have been been loosely installed. After tightening the display screws, tuck the display cable into the slot in the base enclosure.
Page 76: Emi Shield
Removal and Replacement Procedures 5.8 EMI Shield The EMI shield is included in the Miscellaneous Hardware Kit (spare part number 239052-001). 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c.
Page 77: Top Cover
5.9 Top Cover Top cover There are 18 screws in three different sizes that must be removed and replaced during replacement of the top cover. Make special note of each screw size and location when removing and replacing screws. 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a.
Page 78 Removal and Replacement Procedures 3. Remove the following screws: Nine pewter M2.5 × 7.0 screws from the recesses in the bottom of the computer Two black M2.5 × 4.5 screws computer One silver M2 × 5.5 screw Three black M2.5 × 4.5 screws computer Figure 5-8.
Page 79 4. Turn the computer top side up with the front facing you. 5. Disconnect the display lid switch board and right 6. Release the ZIF connector connected and disconnect the TouchPad cable Figure 5-9. Disconnecting Top Cover Connectors Maintenance and Service Guide Removal and Replacement Procedures and left speaker cables (Figure 5-9).
Page 80 Removal and Replacement Procedures 7. Remove the two pewter M2.5 × 7.0 screws M2.5 × 4.5 screw enclosure (Figure 5-10). 8. Lift the back edge of the top cover forward. Figure 5-10. Removing the Top Cover 9. Remove the top cover. Reverse the above procedure to install the top cover.
Page 81: Touchpad
5.10 TouchPad TouchPad TouchPad Bracket (included in Miscellaneous Hardware Kit) 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c. Display (Section 5.7) d. EMI shield (Section 5.8) e.
Page 82 Removal and Replacement Procedures 3. Remove the two silver M2.5 × 3.0 screws black M2.5 × 4.0 screws and TouchPad to the top cover (Figure 5-11). Figure 5-11. Removing the TouchPad Screws 5–16 and the three that secure the TouchPad bracket Maintenance and Service Guide...
Page 83 4. Release the ZIF connector attached and disconnect the TouchPad cable 5. Slide the TouchPad bracket top cover. 6. Remove the TouchPad bracket top cover. Figure 5-12. Removing the TouchPad Reverse the above procedure to install the TouchPad. Maintenance and Service Guide Removal and Replacement Procedures to which the TouchPad cable is toward the back of the...
Page 84: Speakers
Removal and Replacement Procedures 5.11 Speakers Speakers 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c. Display (Section 5.7) d. EMI shield (Section 5.8) e. Top cover (Section 5.9) 2.
Page 85 3. Remove the two M2.5 × 4.5 screws cover shield to the top cover (Figure 5-13). 4. Remove the right speaker cable from the clips top cover shield. Figure 5-13. Routing the Speaker Cables Maintenance and Service Guide Removal and Replacement Procedures that secure the top in the 5–19...
Page 86 Removal and Replacement Procedures 5. Remove the eight silver M2 × 5.5 screws speakers to the top cover (Figure 5-14). 6. Remove the speakers from the top cover Figure 5-14. Removing the Speakers Reverse the above procedure to install the speakers. The left and right speakers are not interchangeable.
Page 87: Microphone
5.12 Microphone The microphone is included in the Cable Kit (spare part number 239041-001). 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c. Display (Section 5.7) d.
Page 88 Removal and Replacement Procedures 3. Remove the microphone from the slot the top cover (Figure 5-15). 4. Remove the microphone cable from the top cover slot through which it is routed. 5. Turn the top cover top side up. 6. Remove the microphone cable from the clip rests in the top cover shield.
Page 89: Display Lid Switch Board
5.13 Display Lid Switch Board The display lid switch board is included in the Cable Kit (spare part number 239041-001). 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c.
Page 90: Heat Sink
Removal and Replacement Procedures 5.14 Heat Sink The heat sink assembly includes the fan. The fan should not be removed from the heat sink assembly. Heat sink 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a.
Page 91 2. Disconnect the fan cable (Figure 5-17). 3. Remove the modem cable from the clip in the heat sink 4. Remove the four black M2 × 4.0 screws M2.5 × 7.0 screw enclosure. 5. Remove the heat sink. Figure 5-17. Removing the Heat Sink The fan and heat sink are spared as one assembly.
Page 92: Infrared Board
Removal and Replacement Procedures 5.15 Infrared Board Infrared board 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c. Display (Section 5.7) d. EMI shield (Section 5.8) e.
Page 93 2. Disconnect the infrared board cable (Figure 5-18). 3. Remove the infrared board cable from the metal clip through which it is routed. 4. Remove the black M2 × 4.0 screw board to the base enclosure. 5. Lift the infrared board Figure 5-18.
Page 94: System Board
Removal and Replacement Procedures 5.16 System Board There are 11 screws and screwlocks in five different sizes that must be removed and replaced when replacing the system board. Make special note of each screw size and location when removing and replacing screws. System boards (includes 64 MB SDRAM) 800 MHz Intel Pentium III 700 MHz Intel Celeron...
Page 95 Removal and Replacement Procedures 3. Remove the six 5.0-mm screwlocks from the rear panel of the computer (Figure 5-19). Figure 5-19. Removing the System Board Screwlocks Maintenance and Service Guide 5–29...
Page 96 Removal and Replacement Procedures 4. Position the base enclosure so the front faces you. 5. Remove the following screws, as illustrated in Figure 5-20: two black M2 × 14.5 screws assembly to the base enclosure black M2.5 × 4.5 screw secures the system board to the base enclosure black M2.5 ×...
Page 97 6. Lift up the front edge of the system board and the battery connector (Figure 5-21). Ä CAUTION: When removing the system board, make sure the battery connector base enclosure in which it rests. Failure to follow this caution can result in damage to the battery connector.
Page 98 Removal and Replacement Procedures 7. Slide the system board out of the base enclosure at an angle (Figure 5-22). Figure 5-22. Removing the System Board Reverse the above procedure to install the system board. 5–32 Maintenance and Service Guide...
Page 99: Pc Card Assembly
5.17 PC Card Assembly PC Card assembly 1. Prepare the computer for disassembly (Section 5.3)) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c. Display (Section 5.7) d. EMI shield (Section 5.8) e. Top cover (Section 5.9) Infrared board (Section 5.15) g.
Page 100 Removal and Replacement Procedures 3. Peel back the shielding tape that covers the right PC Card screw 4. Remove the two silver M2 × 5.0 screws PC Card assembly to the system board. 5. Turn the system board top side up with the PC Card slot opening facing you.
Page 101: Mini Pci Board
5.18 Mini PCI Board Mini PCI boards Type III mini PCI combination 56 Kbps modem/NIC board Type III mini PCI 56 Kbps modem board 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b.
Page 102 Removal and Replacement Procedures 3. Disconnect the modem connector/cable from the mini PCI board 4. Set the modem connector/cable aside. 5. Pull away the plastic retention clips on each side of the mini PCI board 6. Lift the edge of the board and slide it out of the mini PCI slot at a 45-degree angle Figure 5-24.
Page 103: Disk Cell Rtc Battery
5.19 Disk Cell RTC Battery Disk cell RTC battery 1. Prepare the computer for disassembly (Section 5.3) and remove the following components: a. Hinge covers (Section 5.5) b. Keyboard (Section 5.6) c. Display (Section 5.7) d. EMI shield (Section 5.8) e.
Page 104 Removal and Replacement Procedures 3. Lift the edge of the RTC battery to disconnect and remove it from its socket (Figure 5-25). Figure 5-25. Removing the Disk Cell RTC Battery Reverse the above procedure to install the disk cell RTC battery. 5–38 Maintenance and Service Guide...
Page 105: Specifications
This chapter provides physical and performance specifications. Dimensions Height Depth Width Weight (with 14.1-inch TFT display and Li ion battery) Standalone (Battery) Power Requirements Nominal operating voltage (Li ion) Nominal operating voltage (6-cell Li ion) AC Adapter Power Requirements Operating voltage Operating current Operating frequency range...
Page 106 Specifications Relative Humidity (non condensing) Operating Nonoperating Altitude (unpressurized) Operating Nonoperating Shock Operating Nonoperating Vibration Operating Nonoperating Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range of temperatures. 6–2 Table 6-1 Computer (Continued) 10 to 90% relative humidity 5 to 95% relative humidity, 101.6°F/38.7°C Maximum wet bulb temperature...
Page 107 Dimensions Height Depth Width Number of colors Contrast ratio Brightness Pixel resolution Pitch Format Configuration Backlight Character display Refresh Total Power Consumption Maintenance and Service Guide Table 6-2 14.1-inch XGA, TFT Display 8.42 in 11.22 in 14.10 in Up to 262K 180:1 >150 nits typical 1024 ×...
Page 108 Specifications User capacity per drive Drive height (with drive frame) Drive width (with drive frame) Interface type Seek times (typical read, including setting) Single track Average Full stroke User addressable sectors Logical configuration Cylinders Heads Sectors per track 6–4 Table 6-3 Hard Drives 15 GB 15.0 GB...
Page 109 Physical configuration Cylinders Heads Sectors per track Bytes per sector Buffer size Disk rotational speed Transfer rate Interface max (Mbytes/sec) Media (Mbits/sec) 1 GB = 1,000,000,000 bytes System capability may differ. Actual drive specifications may differ slightly. Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
Page 110 Specifications Diskette size Light Height Bytes per sector Sectors per track High density Low density Tracks per side High density Low density Read/write heads Average seek times Track-to-track (high/low) Average (high/low) Settling time Latency average 6–6 Table 6-4 Diskette Drive 3.5 inch On system 0.5 in...
Page 111 Applicable disk Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full Stroke Cache buffer Data transfer rate Sustained, 24X Variable Normal PIO Mode 4 (single burst) Startup time Stop time Maintenance and Service Guide Table 6-5 CD-ROM Drive CD-ROM (Mode 1, 2, and 3) CD-XA ready (Mode 2, Form 1 and 2)
Page 112 Specifications Applicable disk Center hole diameter Disk diameter Disk thickness Track pitch Access time Random Full Stroke Audio output level Lineout Headphone Cache buffer Data transfer rate Sustained, 1X DVD rate Sustained, 16X DVD rate Sustained, 4X DVD rate Normal IO Mode 4 (single burst) Startup time Stop time 6–8...
Page 113 Weight Power supply (input) Operating voltage Operating current Operating frequency range Maximum transient Maintenance and Service Guide Table 6-7 AC Adapter 100 to 240 VAC RMS Nominal 1.3 A RMS 50 to 60 Hz Nominal 4/50 kV Specifications 6–9...
Page 114 Specifications Dimensions Lithium ion (Li ion) Height Length Width Weight Cells Nickel Metal Hydride (NiMH) Height Length Width Weight Cells Energy Li ion Voltage Amp-hour capacity Watt-hour capacity NiMH Voltage Amp-hour capacity Watt-hour capacity Environmental requirements Temperature Operating Nonoperating 6–10 Table 6-8 Battery Packs .82 in...
Page 115 Hardware DMA System Function DMA0 Available for audio DMA1 Entertainment audio DMA2 Diskette drive DMA3 ECP parallel port LPT1 DMA4 DMA controller cascading (not available) DMA5 Available for PC Card DMA6 not assigned DMA7 not assigned P C Card controller can use DMA 1, 2, or 5. Maintenance and Service Guide Table 6-9 System DMA...
Page 116 Specifications Hardware IRQ System Function IRQ0 System timer IRQ1 Keyboard controller IRQ2 Cascaded IRQ3 COM2 IRQ4 COM1 IRQ5 Audio (default)* IRQ6 Diskette drive IRQ7 Parallel port IRQ8 Real time clock (RTC) IRQ9 Infrared IRQ10 System use IRQ11 System use IRQ12 Internal point stick or external mouse IRQ13 Coprocessor (not available to any peripheral)
Page 117 I/O Address (hex) 000 - 00F 010 - 01F 020 - 021 022 - 024 025 - 03F 02E - 02F 040 - 05F 044 - 05F 062 - 063 065 - 06F 070 - 071 072 - 07F 080 - 08F 090 - 091 093 - 09F 0A0 - 0A1...
Page 118 Specifications System I/O Addresses (Continued) I/O Address (hex) 0A2 - 0BF 0C0 - 0DF 0E0 - 0EF 0F0 - 0F1 0F2 - 0FF 100 - 16F 170 - 177 178 - 1EF 1F0 - 1F7 1F8 - 200 202 - 21F 220 - 22F 230 - 26D 26E - 26...
Page 119 System I/O Addresses (Continued) I/O Address (hex) 2F0 - 2F7 2F8 - 2FF 300 - 31F 320 - 36F 370 - 377 378 - 37F 380 - 387 388 - 38B 38C - 3AF 3B0 - 3BB 3BC - 3BF 3C0 - 3DF 3E0 - 3E1 3E2 - 3E3...
Page 120 Specifications Size Memory Address 640 K 00000000 - 0009FFFF 128 K 000A0000 - 000BFFFF 48 K 000C0000 - 000CBFFF 160 K 000C8000 - 000E7FFF 64 K 000E8000 - 000FFFFF 15 M 00100000 - 00FFFFFF 58 M 01000000 - 047FFFFF 58 M 04800000 - 07FFFFFF 08000000 - 080FFFFF 08200000 - FFFEFFFF...
Page 121: Connector Pin Assignments
Connector Pin Assignments Signal Audio out Signal Audio in Maintenance and Service Guide Table A-1 Stereo Speaker/Headphone Table A-2 Microphone Signal Ground Signal Ground A–1...
Page 122 Connector Pin Assignments Signal Keyboard/mouse data1 Keyboard/mouse data2 Ground Signal Unused Ring A–2 Table A-3 External Keyboard/Mouse Table A-4 RJ-11 Modem Signal +5 VDC Keyboard/mouse clock1 Keyboard/mouse clock2 Signal Unused Unused Unused Maintenance and Service Guide...
Page 123 Signal Transmit + Transmit - Receive + Unused Signal +5 VDC Data - Maintenance and Service Guide Table A-5 RJ-45 Network Interface Table A-6 Universal Serial Bus Connector Pin Assignments Signal Unused Receive - Unused Unused Signal Data + Ground A–3...
Page 124 Connector Pin Assignments Signal Carrier detect Receive data Transmit data Data terminal ready Signal ground A–4 Table A-7 Serial Signal Data set ready Ready to send Clear to send Ring indicator Maintenance and Service Guide...
Page 125 Signal Red analog Green analog Blue analog Not connected Ground Ground analog Ground analog Ground analog Maintenance and Service Guide Table A-8 External Monitor Signal +5 VDC Ground Monitor detect DDC 2B data Horizontal sync Vertical sync DDC2B clock Connector Pin Assignments A–5...
Page 126 Connector Pin Assignments Signal Strobe* Data bit 0 Data bit 1 Data bit 2 Data bit 3 Data bit 4 Data bit 5 Data bit 6 Data bit 7 *Signal is active low. A–6 Table A-9 Parallel Signal Acknowledge* Busy Paper out Select Auto line feed*...
Page 127: B Power Cord Set Requirements
Power Cord Set Requirements 3-Conductor Power Cord Set The computer’s wide range input feature permits it to operate from any line voltage from 100 to 120 or 220 to 240 volts AC. The power cord set received with the computer meets the requirements for use in the country where the equipment is purchased.
Page 128: Country-Specific Requirements
Power Cord Set Requirements Country-Specific Requirements 3-Conductor Power Cord Set Requirements—By Country Country Australia Austria Belgium Canada Denmark Finland France Germany Italy Japan The Netherlands Norway Sweden Switzerland United Kingdom United States Notes 1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country...
Page 129 2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration. 3. The appliance coupler, flexible cord, and wall plug must bear a “T”...
Page 130: Screw Listing
Screw Listing This appendix provides specification and reference information for the screws used in the computer. All screws listed in this appendix are available in the Miscellaneous Screw Kit, spare part number 239042-001. Maintenance and Service Guide C–1...
Page 131 Screw Listing Where used: 2 screws securing the keyboard to the top cover (documented in Section 5.6) C–2 Table C-1 M2.5 × 7.0 Screw Color Length Pewter 7.0 mm Maintenance and Service Guide Head Thread Width M2.5 4.0 mm...
Page 132 Where used: 9 screws securing the top cover to the base enclosure (documented in Section 5.9) Maintenance and Service Guide Table C-1 M2.5 × 7.0 Screw (Continued) Color Pewter Screw Listing Length Thread 7.0 mm M2.5 Head Width 4.0 mm C–3...
Page 133 Screw Listing Where used: 2 screws securing the top cover to the base enclosure (documented in Section 5.9) C–4 Table C-1 M2.5 × 7.0 Screw (Continued) Color Pewter Length Thread 7.0 mm M2.5 Maintenance and Service Guide Head Width 4.0 mm...
Page 134 Where used: 1 screw securing the heat sink to the system board (documented in Section 5.14) Maintenance and Service Guide Table C-1 M2.5 × 7.0 Screw (Continued) Color Pewter Screw Listing Length Thread 7.0 mm M2.5 Head Width 4.0 mm C–5...
Page 135 Screw Listing Where used: 4 screws securing the display to the base enclosure (documented in Section 5.7) C–6 Table C-2 M2.5 × 8.0 Screw Color Length Silver 8.0 mm Maintenance and Service Guide Head Thread Width M2.5 5.0 mm...
Page 136 Where used: 1 screw in the battery bay securing the top cover to the base enclosure (documented in Section 5.9) Maintenance and Service Guide Table C-3 M2 × 5.5 Screw Color Length Silver 5.5 mm Screw Listing Head Thread Width 4.0 mm C–7...
Page 137 Screw Listing Where used: 2 screws securing the hard drive to the base enclosure (Refer to the Hardware Guide shipped with the computer for installation information.) 5 screws securing the top cover to the base enclosure (documented in Section 5.9) C–8 Table C-4 M2.5 ×...
Page 138 Where used: 1 screw securing the top cover to the base enclosure (documented in Section 5.9) Maintenance and Service Guide Table C-4 M2.5 × 4.5 Screw (Continued) Color Black Screw Listing Length Thread 4.5 mm M2.5 Head Width 4.0 mm C–9...
Page 139 Screw Listing Where used: 1 screw near the USB connector securing the system board to the base enclosure (documented in Section 5.16) C–10 Table C-4 M2.5 × 4.5 Screw (Continued) Color Black Length Thread 4.5 mm M2.5 Maintenance and Service Guide Head Width 4.0 mm...
Page 140 Where used: 2 screws securing the top cover shield to the top cover; must be removed in order to remove the right speaker (documented in Section 5.11) Maintenance and Service Guide Table C-4 M2.5 × 4.5 Screw (Continued) Color Black Screw Listing Length Thread...
Page 141 Screw Listing Where used: 1 screw securing the EMI shield to the base enclosure (documented in Section 5.8) C–12 Table C-5 M2 × 12.5 Color Length Black 12.5 mm Maintenance and Service Guide Head Thread Width 4.5 mm...
Page 142 Where used: 3 screws securing the TouchPad bracket to the top cover (documented in Section 5.10) Maintenance and Service Guide Table C-6 M2.5 × 4.0 Screw Color Length Black 4.0 mm Screw Listing Head Thread Width M2.5 4.0 mm C–13...
Page 143 Screw Listing Where used: 1 screw securing the modem connector/cable to the base enclosure (documented in Section 5.16) C–14 Table C-6 M2.5 × 4.0 Screw (Continued) Color Black Length Thread 4.0 mm M2.5 Maintenance and Service Guide Head Width 4.0 mm...
Page 144 Where used: 2 screws securing the TouchPad bracket to the top cover (documented in Section 5.10) Maintenance and Service Guide Table C-7 M2.5 × 3.0 Screw Color Length Silver 3.0 mm Screw Listing Head Thread Width 2.5 mm 3.0 mm C–15...
Page 145 Screw Listing Where used: 8 screws securing the speakers to the top cover (documented in Section 5.11) C–16 Table C-8 M2 × 6.0 Screw Color Length Silver 6.0 mm Maintenance and Service Guide Head Thread Width 3.0 mm...
Page 146 Where used: 1 screw securing the display lid switch board to the top cover (documented in Section 5.13) Maintenance and Service Guide Table C-9 M1 × 4.0 Screw Color Length Silver 4.0 mm Screw Listing Head Thread Width 3.0 mm C–17...
Page 147 Screw Listing Where used: 2 screws securing the memory expansion compartment cover to the base enclosure (Refer to the Hardware Guide shipped with the computer for memory installation information.) C–18 Table C-10 M2 × 4.0 Screw Color Length Black 4.0 mm Maintenance and Service Guide Head Thread...
Page 148 Where used: 4 screws securing the heat sink to the system board (documented in Section 5.14) 1 screw securing the infrared board to the base enclosure (documented in Section 5.15) 1 screw near the display connector securing the system board to the base enclosure (documented in Section 5.16) Maintenance and Service Guide Table C-10...
Page 149 Screw Listing Where used: 2 screws securing the system board to the base enclosure (documented in Section 5.16) C–20 Table C-11 M2 × 14.5 Screw Color Length Black 14.5 mm Maintenance and Service Guide Head Thread Width 3.0 mm...
Page 150 Where used: 2 screws securing the PC Card assembly to the system board (documented in Section 5.17) Maintenance and Service Guide Table C-12 M2 × 5.0 Screw Color Length Silver 5.0 mm Screw Listing Head Thread Width 2.0 mm 4.0 mm C–21...
Page 151 Screw Listing Where used: 6 screwlocks securing the system board to the base enclosure (documented in Section 5.16) C–22 Table C-13 5.0 mm Screwlock Color Length Silver 9.0 mm Maintenance and Service Guide Head Socket Width 5.0 mm...
Page 152 AC adapter spare part numbers 3–13 specifications 6–9 base enclosure illustrated 3–6 spare part number 3–7 battery compartment 1–17 light 1–9 pack illustrated 3–6 spare part number 3–7 release latch 1–17 security switch 1–17 specifications 6–10 Cable Kit components 3–10 illustrated 3–2 spare part number 3–3 3–10...
Page 153 Index connector pin assignments external monitor connector A–5 headphone jack A–1 microphone jack A–1 modem jack A–2 network interface jack A–3 parallel connector A–6 RJ-11 jack A–2 RJ-45 jack A–3 serial connector A–4 speaker jack A–1 universal serial bus (USB) connector A–3 connectors 4–2 cursor control keys 1–13...
Page 154 hard drive bezel, illustrated 3–8 illustrated 1–9 3–11 spare part number 3–5 3–11 specifications 6–4 headphone jack illustrated 1–9 pin assignments A–1 heat sink illustrated 3–4 removal 5–24 spare part number 3–5 5–24 hinge cover illustrated 3–8 removal 5–5 I/O address specifications 6–13 illustrated parts catalog 3–1 infrared board...
Page 155 Index Miscellaneous Plastics Kit components 3–8 illustrated 3–2 spare part number 3–3 modem adapter, spare part number 3–12 cable adapter, spare part number 3–12 cable, spare part number 3–12 connector/cable illustrated 3–10 illustrated 3–6 jack, pin assignments A–2 removal 5–35 spare part number 3–7 3–12 5–35...
Page 156 replacement preliminaries 4–1 procedures 5–1 reset button 1–17 RJ-11 jack location 1–9 pin assignments A–2 RJ-11 P55 adapter, spare part number 3–12 RJ-11 PTT adapter, spare part number 3–12 RJ-45 jack location 1–11 pin assignments A–3 RJ-45 network cable, spare part number 3–12 Screw Kit components C–1...
Page 157 Index tools required 4–1 top cover illustrated 3–2 removal 5–11 spare part number 3–3 5–11 TouchPad bracket illustrated 3–9 removal 5–15 button 1–15 illustrated 1–15 removal 5–15 spare part number 3–5 5–15 transporting precautions 4–4 Index–6 troubleshooting flowcharts 2–3 overview 2–1 universal serial bus (USB) connector illustrated 1–9...
