HP EliteBook 2560p Specifications

Notebook pc
Hide thumbs Also See for EliteBook 2560p:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, User Manual
QuickSpecs

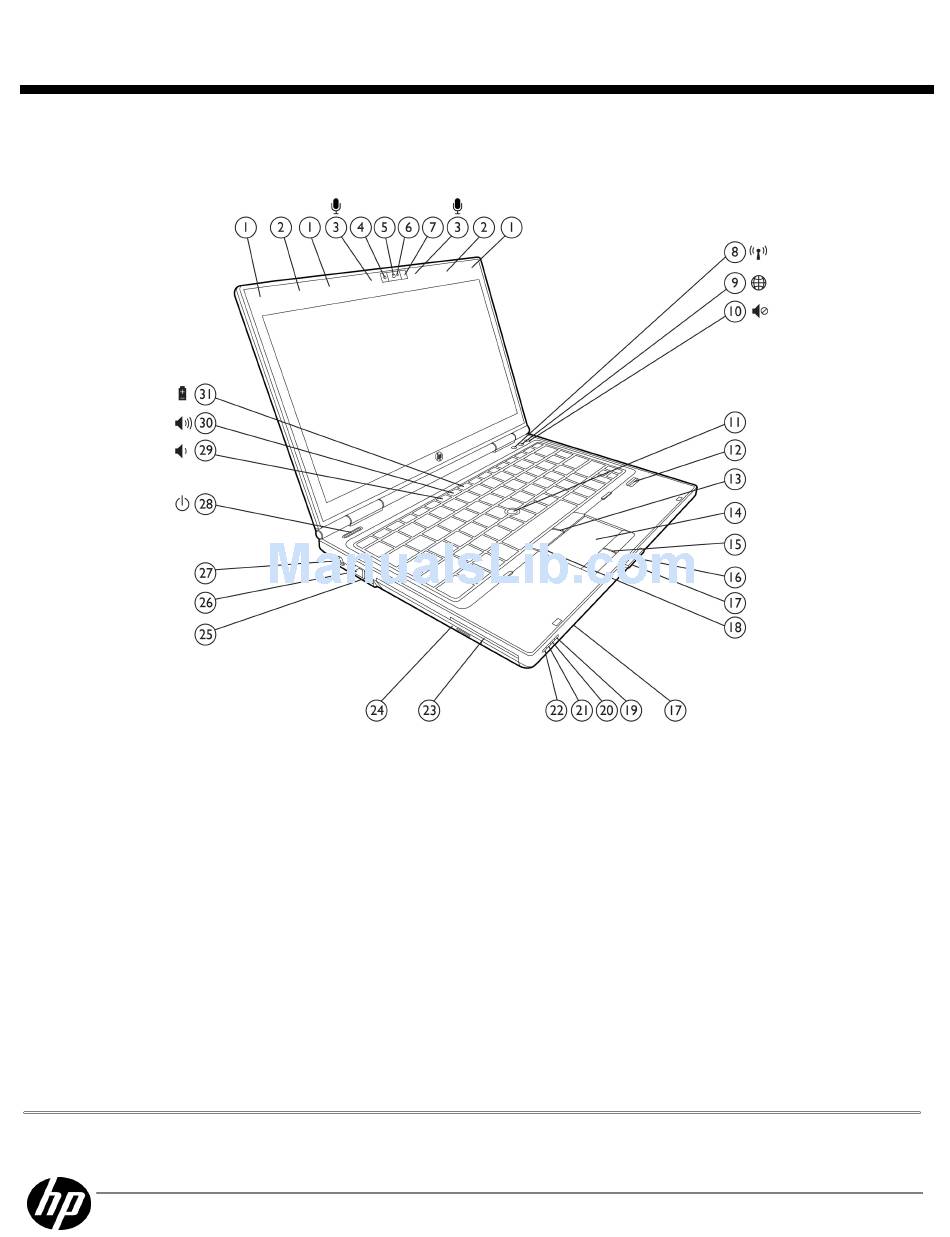

Overview
1.
WLAN antennas (3)
2.
WWAN antennas (2)
3.
Dual-microphone array
4.
Webcam LED indicator
5.
Optional HD Webcam
6.
HP Night Light button and ambient light sensor
7.
HP Night Light
8.
Wireless on/off button with LED indicator
9.
HP QuickWeb button with LED indicator
10. Volume mute button with LED indicator
11. Pointstick
12. Optional HP Fingerprint Sensor
13. Pointstick buttons (2)
14. Touchpad with scroll zone
15. Touchpad buttons (2)
16. Display release button
DA - 14001
North America — Version 5 — July 12, 2011
HP EliteBook 2560p Notebook PC
HP EliteBook 2560p Notebook PC
HP EliteBook 2560p Notebook PC
HP EliteBook 2560p Notebook PC
17. Stereo Speakers
18. Touchpad on/off button with LED indicator
19. Drive activity/HP 3D DriveGuard LED indicator
20. Battery charging LED indicator
21. Power/standby LED indicator
22. Wireless on/off LED indicator
23. Integrated Smart Card Reader
24. Optical drive or weight saver
25. Optional RJ-11/modem port
26. RJ-45/Ethernet port
27. Power connector
28. Power button with LED indicator
29. Volume down function key
30. Volume up function key
31. HP Power Assistant function key
Page 1

Advertisement

loading

Related Manuals for HP EliteBook 2560p

Summary of Contents for HP EliteBook 2560p

  • Page 1 WWAN antennas (2) Dual-microphone array Webcam LED indicator Optional HD Webcam HP Night Light button and ambient light sensor HP Night Light Wireless on/off button with LED indicator HP QuickWeb button with LED indicator 10. Volume mute button with LED indicator 11.
  • Page 2 Hard drive, memory, and wireless compartments Vents DA - 14001 North America — Version 5 — July 12, 2011 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC under bottom cover...
  • Page 3 OS is inoperable or it is powered off Optional fixed optical drive or weight saver Choice of 7200 rpm 2.5-inch hard drive up to 500 GB, with HP 3D DriveGuard protection; or 128/160 GB Solid State Drive Flexible wireless connectivity options:...

  • Page 4: Standard Features (Availability May Vary By Country)

    SuSE Linux Enterprise Desktop 11 for details. DA - 14001 North America — Version 5 — July 12, 2011 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 35W)*...
  • Page 5 NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux.
  • Page 6 HSPA and HSPA+ (UMTS) networks. It also provides standalone, Internet and network assisted GPS functionality for various mapping applications and security applications such as Computrace Pro for HP ProtectTools. Integrated mobile broadband module with Gobi global mobile Internet technology that provides connectivity to both CDMA (EVDO) and UMTS (HSPA) networks.
  • Page 7 Keyboard Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101-/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys.
  • Page 8 Compatible with ISO 7816 compliant Smart Cards PC/SC interface support Two - (1) DisplayPort, (1) VGA Two (including one charging port) For HP 2560 Series Docking Station DA - 14001 North America — Version 5 — July 12, 2011 HP EliteBook 2560p Notebook PC...
  • Page 9 HP Recovery Manager HP Recovery Manager Models shipped with Windows 7 include HP Recovery Manager, which enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 20 GB of the hard drive is reserved for the system recovery software.
  • Page 10 *** Intel AT security requires a separately purchased Absolute Computrace service subscription and must be activated and configured. Check with Absolute for availability in your country. Intel and HP assume no liability for lost or stolen data and/or systems or any other damages resulting therefrom. See www.intel.com/technology/anti-theft/...
  • Page 11 Total length, including external AC adapter, is 12 ft (3.66 m). HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge Technology does not apply to 9-cell primary batteries. Battery...
  • Page 12 Options (availability may vary by country) Memory Memory Memory Memory HP 1 GB (DDR3 1333 MHz) SODIMM HP 2 GB (DDR3 1333 MHz) SODIMM HP 4 GB (DDR3 1333 MHz) SODIMM HP 8 GB (DDR3 1333 MHz) SODIMM Storage Storage...
  • Page 13 Certifications Certifications Certifications Certifications DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 1.08 in (at front) x 12.02 in x 8.23 in 27.4 mm (at front) x 305.2 mm x 209.0 mm 1.29 in (32.8 mm) height at rear...
  • Page 14 QuickSpecs Technical Specifications * Configurations of the HP EliteBook 2560p that are ENERGY STAR qualified are identified as HP EliteBook 2560p ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT TBD Registered in U.S. EPEAT registration varies by country. See status by country.
  • Page 15 Available Available Available Available DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) 0.62 lb (280 g)
  • Page 16 Internal Storage Internal Storage Internal Storage DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 1.6 x 2.0 x 8.1 in (4 x 5 x 20.5 cm) 1.06 lb (0.475 kg)
  • Page 17 Operating Temperature Operating Temperature Features Features Features Features DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 0.25 lbs (115g) 500 GB 0.37 in (9.5 mm) 2.75 in (70 mm)
  • Page 18 Features Optical Drives Optical Drives Optical Drives Optical Drives DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 0.25 lbs (115g) 250 GB 0.37 in (9.5 mm) 2.75 in (70 mm)
  • Page 19 Max Media Capacity (write) Transport Transport Transport Transport DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC Random < 140 ms CD (typical) < 160 ms DVD (typical)
  • Page 20 Features Manageability Manageability Manageability Manageability DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 3.0V-3.6V Single Supply 32° - 158°F (0° - 70°C) Less than 70 mA peak imaging and scrolling...
  • Page 21 Command Set Command Set Command Set Command Set DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC Comprehensive diagnostic and configuration software suite Virtual Cable Doctor for Ethernet cable status PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.
  • Page 22 Configuration Utilities LED Activity LED Activity LED Activity LED Activity DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I),...
  • Page 23 96 hours operating, 96 hours operating, 96 hours MIL-STD 202 Method 108) DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS)
  • Page 24 * In countries where 802.11n is not allowed, this capability is not enabled. Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN) 2.4 GHz and 5GHz 2 transmit; 2 receive (2x2) 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps...

  • Page 25: Technical Specifications

    Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAP- FAST) North America — Version 5 — July 12, 2011 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC...
  • Page 26 LED Off - Radio OFF; Solid LED On - Radio ON IEEE 802.11a North America — Version 5 — July 12, 2011 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 32°...
  • Page 27 0.013 lb (6 g) 0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm) North America — Version 5 — July 12, 2011 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC...
  • Page 28 Roaming Output Power Output Power Output Power (for CCK) Output Power DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC 3.3v +/- 10% Operating 14° to 149° F (-10° to 65° C) Non-operating -40°...
  • Page 29 -6 dBm to 4 dBm (Bluetooth Class II) Better than -80 dBM at 0.1 % raw bit error rate North America — Version 5 — July 12, 2011 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC...
  • Page 30 Microsoft Windows XP SP2 indicates the profile is part of Windows Vista DA - 14001 HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC HP EliteBook 2560p Notebook PC...
  • Page 31 6-cell high capacity Lithium-Ion battery (optional 8 cell available) This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. This HP product is designed to comply with the Waste Electrical and North America — Version 5 — July 12, 2011 100 VAC 8.38 W...
  • Page 32 The Molded Pulp packaging material is made from 60% recycled content. HP follows these guidelines to decrease the environmental impact of product packaging: Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
  • Page 33 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. For more information about HP's commitment to the environment: Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html...
  • Page 34 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
