You must read the Usage and Safety Precautions before use.
The Operation Manual can be downloaded from the ZOOM website (www.zoom.jp/docs/ams-22).
This page has files in PDF and HTML formats.
The PDF file format is suitable for printing on paper and reading on a computer.
The HTML file format is suitable for smartphones and tablets and can be read with web browsers.
© 2022 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited.
You might need this manual in the future. Always keep it in a place where you can access it easily.
The contents of this manual and the specifications of the product could be changed without notice.
Quick Tour

Advertisement

Table of Contents
loading

Related Manuals for Zoom AMS-22

Summary of Contents for Zoom AMS-22

  • Page 1 Quick Tour You must read the Usage and Safety Precautions before use. The Operation Manual can be downloaded from the ZOOM website (www.zoom.jp/docs/ams-22). This page has files in PDF and HTML formats. The PDF file format is suitable for printing on paper and reading on a computer.

  • Page 2: Connecting To A Computer

    Confirm that the power indicator is lit red. A dedicated driver is necessary when connecting an AMS-22 to a Windows computer to make music using a DAW. Dedicated drivers can be downloaded from product pages on the ZOOM website (zoomcorp.com).
  • Page 3 Connecting instruments and mics Guitar Dynamic mic Mic cable Bass Instrument cable Condenser mic ■ 48V switch Use when connecting condenser mics Use when connecting dynamic mics Stereo mini cable Tablet or other device Sounds input through the MIC/GUITAR and LINE IN jacks at the same time will be mixed.

  • Page 4: Adjusting Input Gain

    Set it so that the level indicator does not light red. Using direct monitoring When the DIRECT MONITOR switch is ON, sound input to the AMS-22 can be directly monitored from the OUTPUT and headphone jacks (before it passes through the computer).

  • Page 5: Functions Of Parts

    Set this to ON to send a mix of the OFF. Set this to ON when connecting sounds played by the computer and condenser mics. input through the AMS-22 back to the ② DIRECT MONITOR switch computer. Set this to ON to directly monitor sound from the MIC/GUITAR jack before it passes through the computer.

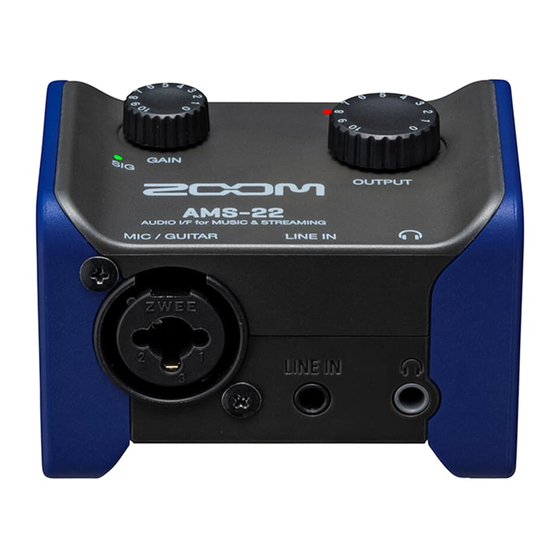

  • Page 6 ■ Front ■ Back ① MIC/GUITAR jack ③ Headphone jack This input jack has a built-in mic pre- This outputs a stereo signal. Connect amp. Connect mics, keyboards, guitars headphones to this. ④ OUTPUT standard phone jacks and other audio sources to this. This can be used with both XLR and standard These output the left (L) and right (R) phone (balanced or unbalanced) plugs.
  • Page 7 Using smartphones and tablets During use with a smartphone or tablet, an external power supply must be used. Providing external power Dedicated AC adapter ZOOM AD-17 USB Type-C Confirm that the power indicator is lit red. Connecting USB Type-C ( A USB cable that supports...

  • Page 8: Troubleshooting

    Troubleshooting → Confirm that AMS-22 is set for input and output in Cannot select or use the AMS-22 device → Confirm that the AMS-22 has been connected the software being used. → Quit all software that is using the AMS-22. Then, correctly on the computer.
