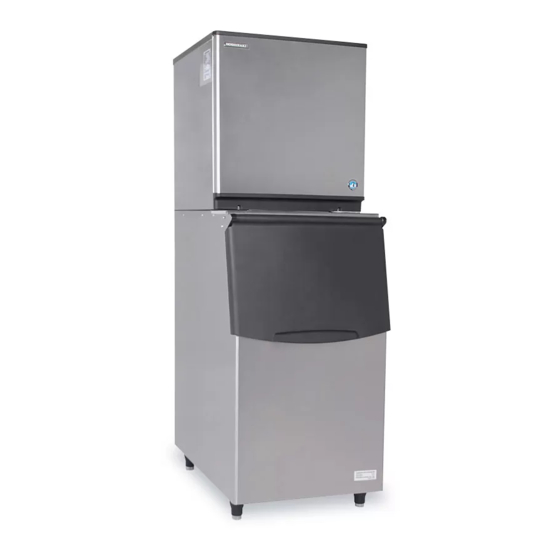

- Page 1 KMD-201AB MODULAR CRESCENT CUBER KMD-201AWB KMD-270AB KMD-270AWB INSTRUCTION MANUAL KMD-201AB KMD-270AB No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126 China L1F132102 (071020)
-
Page 2: Table Of Contents
IMPORTANT SAFETY INFORMATION ............................1 I. INSTALLATION INSTRUCTIONS ..............................3 1. UNPACKING ..................................3 2. LOCATION ...................................3 3. INSTALLATION ..................................3 4. BIN CONTROL INSTALLATION ............................3 5. ELECTRICAL CONNECTIONS ............................4 6. WATER SUPPLY AND DRAIN CONNECTIONS .........................4 II. OPERATING INSTRUCTIONS ..............................5 1. OPERATION ..................................5 2. -
Page 3: Important Safety Information
ENGLISH IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. Indicates a hazardous situation which, if not avoided, could result in death or WARNING serious injury. - Page 4 * If the supply cord is damaged, it must be replaced by a replacement cord available from Hoshizaki Parts / Service Centres. * Do not touch the electrical parts or operate the switches with damp hands. * This appliance is not intended for use by persons (including children) with reduced physical,...
-
Page 5: Installation Instructions
ENGLISH I. INSTALLATION INSTRUCTIONS 6. Do not place anything on top of the icemaker or in front of the louver. 1. UNPACKING 7. This icemaker will not work at subfreezing temperatures. To WARNING prevent damage to the water supply line, drain the icemaker Children should not be allowed in reach of the packaging elements when air temperature is below zero (see “II. -
Page 6: Electrical Connections
ENGLISH 6) Route the bin control lead through the hole in the base, then into the 11) Secure the pump motor bracket with the two thumbscrews. bushing provided. See Fig. 5. 12) Reconnect the pump motor connector and float switch connector. 13) Replace the front insulation and front panel in their correct positions. 5. -
Page 7: Operating Instructions
ENGLISH Air-Cooled Model [Connection to the drain] * Water should drain into an open trap. Icemaker Water * Drain lines should not be piped directly to the sewer system. A vertical Supply Inlet Icemaker air gap of a minimum of 5 cm should be between the end of the drain 1/2”... -
Page 8: Maintenance
Hoshizaki’s liability under the terms of the warranty are limited and shall exclude routine servicing, cleaning, essential maintenance and/or 1) Remove the air filter. repairs occasioned by misuse and installations not in accordance with Hoshizaki guidelines. -
Page 9: Disposal
1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz http://www.hoshizaki.com.au Electric 984W 925W Consumption (AT: 32°C, WT: 21°C) (AT: 32°C, WT: 21°C) To register your product for warranty with Hoshizaki visit Ice Production 275kg 270kg http://www.hoshizaki.com.au/warranty-registration per 24h (AT: 10°C, WT: 10°C) (AT: 10°C, WT: 10°C) or scan the QR code.
