- Page 1 PY-1A AC / DC Voltage Tester Users Manual • Mode d’emploi • Bedienungshandbuch • Manual d’Uso • Manual de uso...
- Page 2 Amprobe’s behalf. To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER...
- Page 3 Non-Warranty Repairs and Replacement – US and Canada Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and replacement rates.

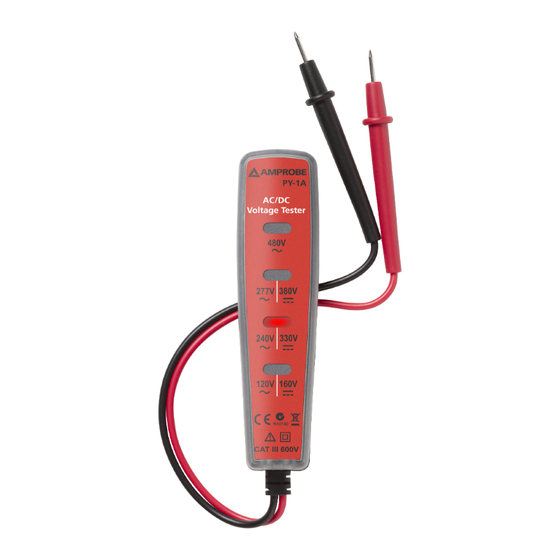

- Page 4 PY-1A AC / DC Voltage Tester Test Probes Neon for Voltage indication Pocket Clip...
-
Page 5: Table Of Contents
CONTENTS SYMBOLS ................2 UNPACKING AND INSPECTION ......... 5 INTRODUCTION ..............5 OPERATION ................. 5 SPECIFICATION ..............6 MAINTENANCE ..............6 TROUBLE SHOOTING ............7... -
Page 6: Symbols
SYMBOLS Warning of a potential danger, comply with � instruction manual. Caution! Dangerous Voltage. Danger of electrical shock. Continous double or reinforced insulation complies with Category II IEC 536 Confirmity symbol, the instrument complies with the valid directives. It complies with the EMC Directive (89/336/EEC), Standards EN 50081 and EN 50082-1 are fulfilled. - Page 7 • The respective accident prevention regulations established by the professional associations for electrical system and equipment must be strictly met at all times. • In order to avoid electrical shock, the valid safety regarding excessive contact voltages must receive utmost attention, when working with voltages exceeding 120V (60V) DC or 50V (25V) rms AC.
-
Page 8: Unpacking And Inspection
The safety can no longer be insured if the instrument: • Shows obvious damage. • Does not carry out the desired measurements. • Has been stored for too long under unfavorable conditions • Has been subjected to mechanical stress during transport. -
Page 9: Introduction
INTRODUCTION This Electrical Tester is for universal applications for indoor use only. It represents a valuable support for all testing in handicraft and industrial applications. The electrical tester is characterized by the following features. • AC voltage detection up to 480V, and DC voltage upto 600V. -
Page 10: Maintenance
Humidity Max. 80% rel. H. Height above sea level up to 2000 m (6562 ft) Measurement Cat. CATIII / 600V Pollution Degree Safety Standards IEC 61010, UL 61010, CSA 22.2 No. 61010 Weight Approx. 50g (0.11 lb) Dimension Approx. 150X32X26 mm (5.9x1.3x1.0 in) MAINTENACE When using the instrument in compliance with the...
