- Page 1 ACD-14 FX ACD-14 TRMS FX User Manual • Bedienungshandbuch • Mode d’emploi • Manuale d’Uso • Manual de uso • Bruksanvisning...
- Page 2 ACD-14 FX ACD-14 TRMS FX...
- Page 3 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
-
Page 4: Table Of Contents
ACD-14 FX ACD-14 TRMS FX Contents: Safety Regulations ..........................3 Product Description ..........................5 Operation ............................6 Maintenance ............................12 Specifications .............................14... -
Page 5: Safety Regulations
It has been inspected for proper operation of all of its functions and tested by qualified factory technicians according to the long-established standards of Amprobe. Safety Regulations This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. - Page 6 WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential shock hazard to the user.
-
Page 7: Product Description

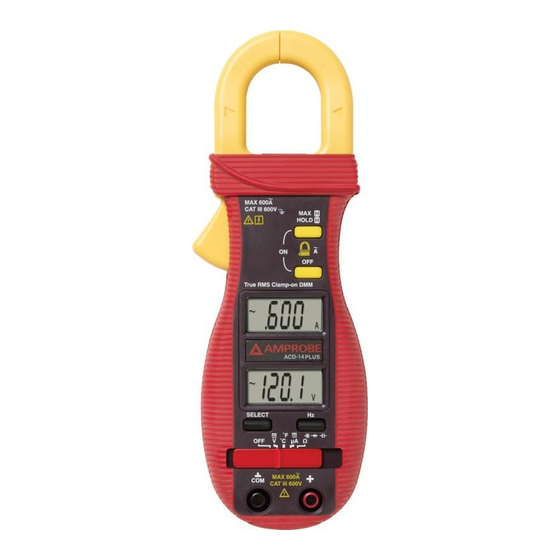

Product Description Note: Please refer to Specification Section for function details. 1) Clamp Jaw for AC current magnetic field pick up 2) Hand/Finger Barrier to indicate the limits of safe access of the meter during measurement 3) Power ON/OFF buttons for ACA current function and MAX/Hold features 4) Push-button for frequency selection 5) Input Jack for all functions EXCEPT... -
Page 8: Operation
Operation DC Voltage, AC Voltage, Hz Frequency functions Inputs are made through the test lead terminals. Move the slide-switch to the “V” position. The unit defaults at DC voltage. Press SELECT button momentarily to select AC voltage. To activate the Hz Frequency function, press the Hz button momentarily. Note: 400.0mV range is designed with 1000MΩ... - Page 9 Note: Hz input sensitivity varies automatically with function range selected while activating the Hz function. Lowest range has the highest sensitivity, and the highest range has the lowest sensitivity. Activating the Hz function WHILE measuring the specific function signal (auto ranging) can automatically select the best sensitivity range to avoid electrical noise that may cause unstable Hz reading.
- Page 10 Diode test function Inputs are made through the test lead terminals. Move the slide-switch to the “Ω” position. The unit defaults at Ω. Press SELECT button momentarily 2 times to select Diode test function. Normal forward voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V.
- Page 11 ACA Current clamp-on function Inputs are made through the clamp on jaws for non-invasive ACA current measurements. Press the OFF push button momentarily to power on and off the separate ACA function (upper) display. The MAX HOLD push button can also be used to power on this function. This twin ACA function display can be used simultaneously with voltage measurements or any of the other slide-switch functions (lower display) or it can be used alone.
- Page 12 Make sure the jaws are completely closed, or else it will introduce measurement errors. Strong Electro-magnetic field environments such as high-current transformers, motors and conductors may affect measurement accuracy. Temperature function Insert the banana plug type-K temperature bead probe (TPK-59), observing the proper + - polarities.
- Page 13 Application notes: The DC µA function is designed especially for HVAC/R flame sensor applications. The 0.1µA resolution is useful for identifying the minute current changes in flame detector applications. Flame signal current check should indicate steady flame signal of at least 2µA for a rectification type, 1.5µA for an ultraviolet type, or 8µA for self-checking systems.
-
Page 14: Maintenance
Auto-ranging When there is more than one measuring range under a selected meter function, the LED annunciator “a” turns on in the upper left corner. The meter will automatically switch to the best resolution range when making measurements. No manual ranging selection is required. - Page 15 Battery replacement The meter uses 2 standard 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2030). The lower battery is used for the slide-switch functions, and the upper battery is used for the upper display ACA function separately. Low Battery Indication: When the battery voltage drops below approx. 2.4V, a battery symbol will appear in the upper right corner of the LCD display, indicating that the battery needs replacing.
-
Page 16: Specifications
0.15 x (specified accuracy)/0°C - 18°C or 28°C - 40°C (°F @ 32°F - 64°F or 82°F - 104°F, or otherwise specified Sensing: Average sensing for ACD-14 FX; True RMS for ACD-14 TRMS FX Power Supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032). - Page 17 Standard Accessories: Test leads (pair), banana plug style, bead Type-K Thermocouple, batteries, user’s manual, & soft carrying case. Replacement Part Numbers: Test Leads (pair): MTL-90B, Bead Type-K Thermocouple: TPK-59, Carrying Case: SV-U Electrical Specifications Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 73°F ± 9°F (23°C ±...
- Page 18 DC µA Capacitance RANGE* Accuracy** Burden RANGE Accuracy Voltage 500.0nF, 5.000µF, 3.5%*** + 6d 50.00µF, 500.0µF, 400.0µA 1.5% + 4d 2.8mV/µA 3000µF 2000µA 1.2% + 3d 2.8mV/µA *Additional 50.00nF range accuracy is not specified **Accuracies with film capacitor or better AC µA ***Specified with battery voltage above Burden...
