Summary of Contents for Amprobe ACD-14

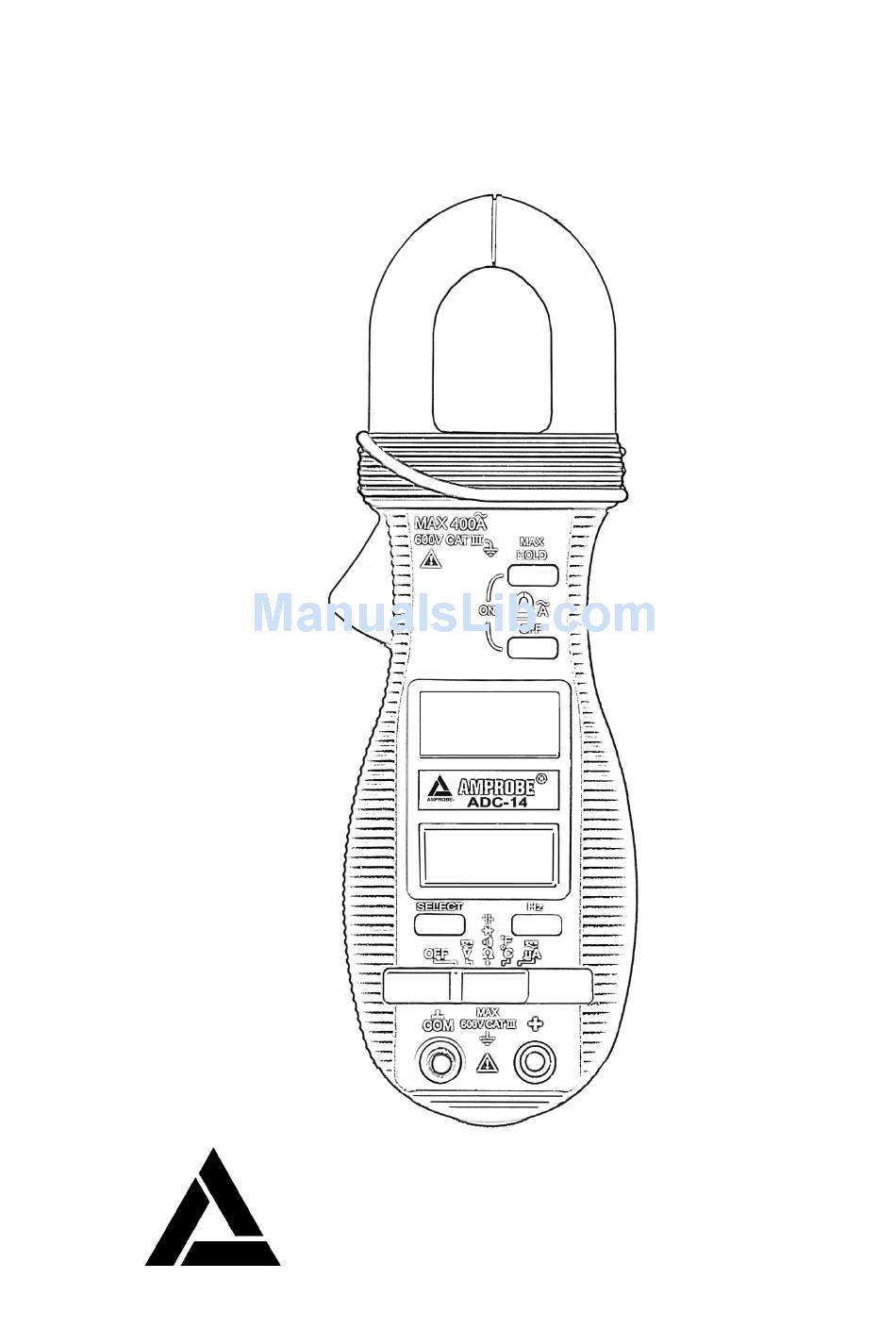

- Page 1 INSTRUCTION MANUAL ACD-14 TECH CLAMP ® AMPROBE...
-
Page 2: Terms In This Manual
It has been inspected for proper operation of all of its functions and tested by qualified factory technicians according to the long-established standards of AMPROBE. 1) SAFETY This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. -
Page 3: International Electrical Symbols
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential shock hazard to the user. -
Page 4: Product Description
3) PRODUCT DESCRIPTION Note: Please refer to Specification Section for function details. 1) Clamp Jaw for AC current magnetic field pick up 2) Hand/Finger Barrier to indicate the limits of safe access of the meter during measurement 3) Power ON/OFF buttons for ACA current function and MAX/Hold features 4) Push-button for frequency selection 5) Input Jack for all functions EXCEPT... -
Page 5: Operation
4) OPERATION DC Voltage, AC Voltage, Hz Frequency functions Inputs are made through the test lead terminals. Move the slide-switch to the “V” position. The unit defaults at DC voltage. Press SELECT button momentarily to select AC voltage. To activate the Hz Frequency function, press the Hz button momentarily. Note: 400.0mV range is designed with 1000MΩ... - Page 6 meter will show close to zero reading when the inputs are shorted. Open input is actually a floating condition, which is not a zero-volt-input condition. Note: Hz input sensitivity varies automatically with function range selected while activating the Hz function. Lowest range has the highest sensitivity, and the highest range has the lowest sensitivity.
- Page 7 Ω Resistance, and Continuity functions Inputs are made through the test leads terminals. Move the slide-switch to the “Ω” position. The unit defaults at Ω. Press SELECT button momentarily to select Continuity function, which is convenient for checking wiring connections and operation of switches.
- Page 8 ACA Current clamp-on function Inputs are made through the clamp on jaws for non-invasive ACA current measurements. Press the OFF push button momentarily to power on and off the separate ACA function (upper) display. The MAX HOLD push button can also be used to power on this function.
- Page 9 Make sure the jaws are completely closed, or else it will introduce measurement errors. Strong Electro-magnetic field environments such as high-current transformers, motors and conductors may affect measurement accuracy. Temperature function Insert the banana plug type-K temperature bead probe (TPK-59), observing the proper polarities.
- Page 10 Application notes: 1) The DC µA function is designed especially for HVAC/R flame sensor applications. The 0.1µA resolution is useful for identifying the minute current changes in flame detector applications. Flame signal current check should indicate steady flame signal of at least 2µA for a rectification type, 1.5µA for an ultraviolet type, or 8µA for self-checking systems.
-
Page 11: Maintenance
Auto-ranging When there is more than one measuring range under a selected meter function, the LED annunciator “a” turns on in the upper left corner. The meter will automatically switch to the best resolution range when making measurements. No manual ranging selection is required. - Page 12 Battery replacement The meter uses 2 standard 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2030). The lower battery is used for the slide-switch functions, and the upper battery is used for the upper display ACA function separately. Low Battery Indication: When the battery voltage drops below approx. 2.4V, a battery symbol will appear in the upper right corner of the LCD display, indicating that the battery needs replacing.
- Page 13 6) Specifications General Specifications Display: 3-3/4 digits 4000 counts, dual LCD displays Update Rate: 3 per second nominal Polarity: Automatic Low Battery Indication: Below approx. 2.4V Operating Temperature: 32°F to 104°F (0°C to 40°C) Relative Humidity: Maximum relative humidity 80% for temperatures up to 88° F (31°C) decreasing linearly to 50% relative humidity at 104°...
- Page 14 E.M.C.: Meets EN61326(1997, 1998/A1), EN61000-4-2(1995), and EN61000-4-3 (1996) In an RF field of 3V/m: Capacitance function is not specified µA function: Total Accuracy = Specified Accuracy + 65 digits Other function ranges: Total Accuracy = Specified Accuracy + 45 digits Performance above 3V/m is not specified Overload Protections: ACA Clamp-on jaws: AC 400A RMS continuous...
- Page 15 Ohms Hz Frequency RANGE Accuracy Function Sensitivity Range (Sine RMS) 0.8% + 6d 400.0Ω 400.0mV 150mV 10Hz -- 2kHz 0.6% + 4d 4.000kΩ, 40.00kΩ, 4.000V 3.2V 5Hz -- 40kHz 400.0kΩ 40.00V 5Hz -- 100kHz 1.0% + 4d 4.000MΩ 400.0V 100V 5Hz -- 100kHz 2.0% + 4d 40.00MΩ...
- Page 16 LIMTED WARRANTY Your AMPROBE instrument has a limited warranty against defective materials and/or workmanship for one year from the date of purchase provided that, in the opinion of the factory, the instrument has not been tampered with or taken apart.
