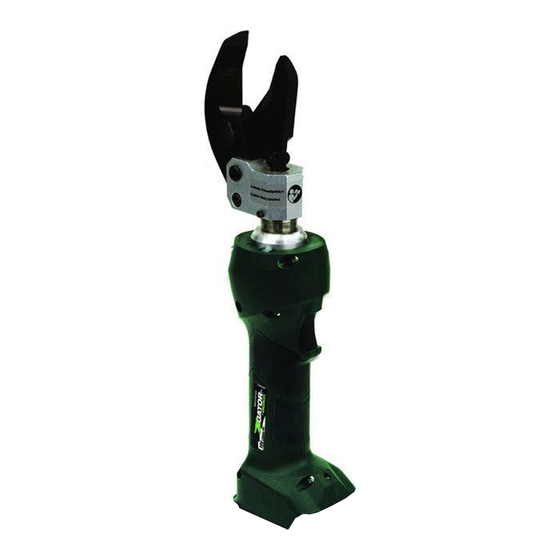

Summary of Contents for Greenlee GATOR ES32
- Page 1 INSTRUCTION MANUAL Serialnummer GATOR ES32 ® Battery-powered Cable Cutter Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 99975815 REV 8 © 2008 Greenlee Textron Inc. 7/08...
-
Page 2: Table Of Contents
All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR is a registered trademark of Greenlee Textron Inc. -
Page 3: Important Safety Information
Failure to observe this warning could result in severe injury or death. Greenlee / A Textron Company ES32 Battery-powered Cable Cutter Electric shock hazard: This tool is not insulated. When using this unit near energized electrical lines, use proper personal protective equipment. - Page 4 Use this tool for the manufacturer’s intended purpose only. Failure to observe these precautions may result in injury or property damage. Do not cut ACSR or steel. Greenlee / A Textron Company ES32 Battery-powered Cable Cutter Do not allow anything to contact the battery terminals. •...
-
Page 5: Identification
Average Cutting Time ...2 seconds Average Cuts per Charge ...approximately 150 Battery Charging Voltage ... 9.6 V Charging Time ...45 min Greenlee / A Textron Company ES32 Battery-powered Cable Cutter 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070 T 15 ®... -
Page 6: Operation
Use this tool for the manufacturer’s intended purpose only. Failure to observe these precautions may result in injury or property damage. Greenlee / A Textron Company ES32 Battery-powered Cable Cutter Charging the Battery Read the instructions supplied with the battery charger. -
Page 7: Maintenance
Store in a cool, dry place. 3. Charge the battery. Monthly Thoroughly clean all surfaces. Annually or After 10,000 Cuts Return the tool to a Greenlee Authorized Service Center for inspection. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 8: Troubleshooting
Greenlee / A Textron Company ES32 Battery-powered Cable Cutter Probable Remedy Clean tool. Reform contacts. Return tool to a Greenlee Authorized Service Center. Return tool to a Greenlee Authorized Service Center. Pull trigger and hold retract button simultaneously. Hold for approximately 10 seconds. - Page 9 ES32 Battery-powered Cable Cutter Illustrations—Main Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
