Power Connections
The unit is supplied with a power plug appropriate to its voltage and destination. Should any
other connections be required they must be carried out with the following configuration.
Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
In the USA & Europe, it is required that all plugs are 3-pin type i.e. with Earth/Ground
connection.
In the UK, it is required that all mains plugs are fitted with 5A fuses.
Technical Specifications
Power
115V~60Hz AC
Power Protection
20mm Glass 1A Fast Blow
1 x 12V 50W
Lamps
Part No BRL 12V 50W
Dimensions
241 x 127 x 127mm / 10in x 4.5in x 5.5in
Weight
User Information
(Please complete for your records)
Date Purchased:
/
/
Dealer Stamp:
CH-202B_UG.doc
230V~50Hz AC
20mm Glass 0.5A Fast Blow
1 x 12V 50W
Part No BRL 12V 50W
3.4kg / 7.5lbs
Serial No: _______________________

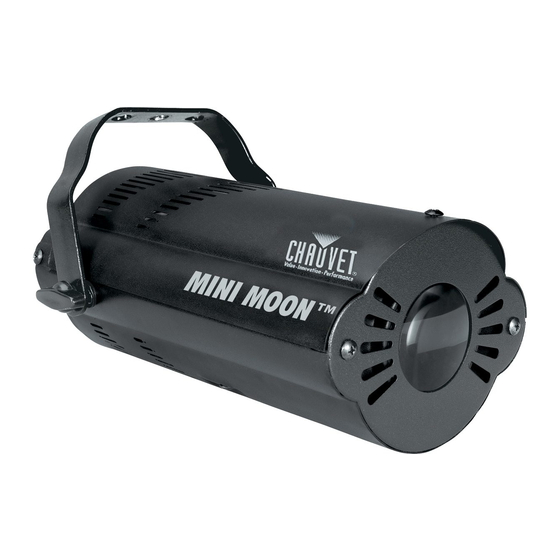

Model: CH-202B MINI MOON
1/14/2005 11:27:00 AM
Mini Moon™
CH-202B
Users Guide
Please read these instructions carefully before use
