Working Instruction, Mechanical

3.18 On/Off Key Assembly

REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!

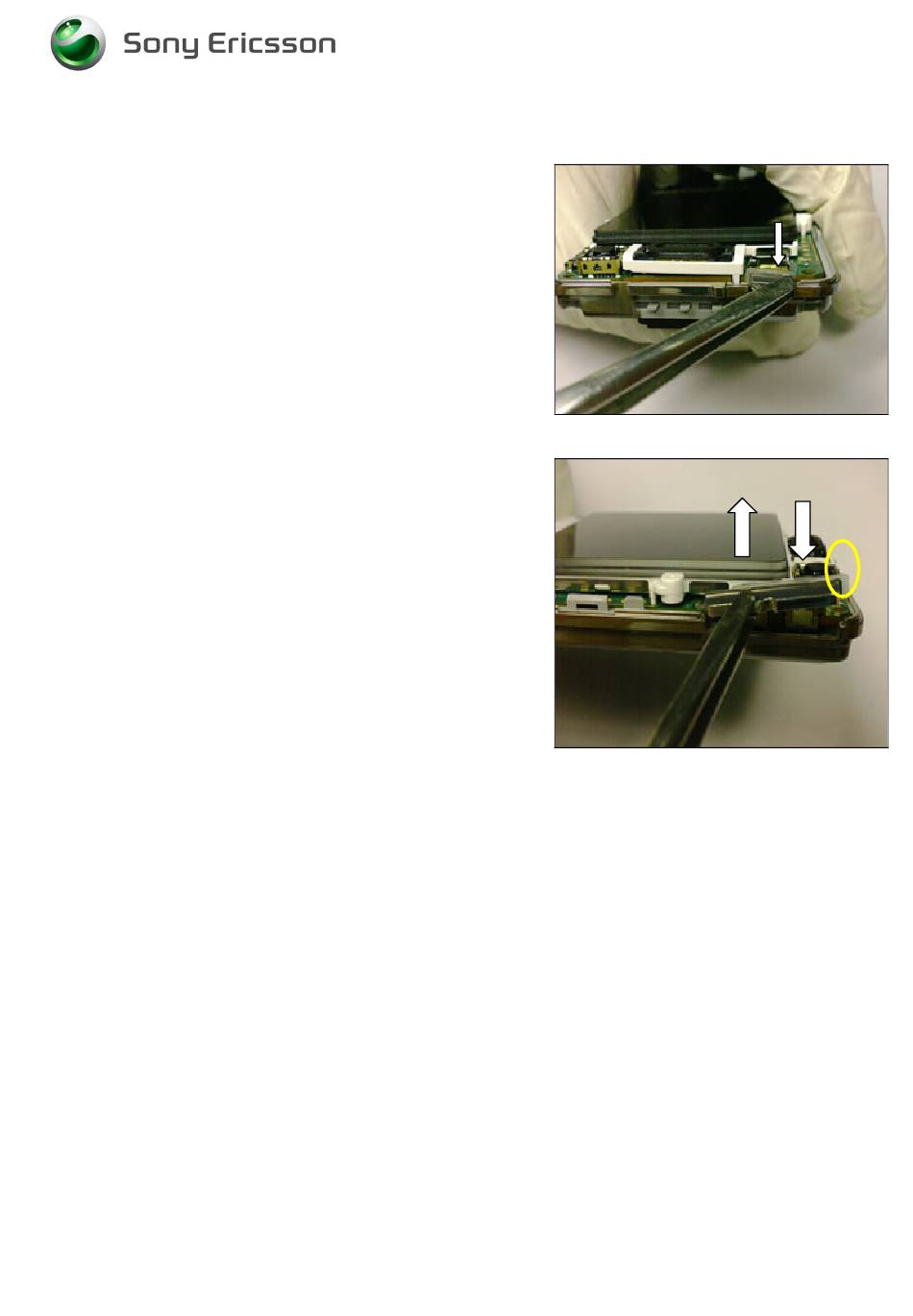

Use the tweezers to remove the power key assembly.
INSTALLATION
Use the tweezers to mount the power key assembly.

3.19 Volume Key Assembly

REMOVAL
Follow the 2.1.1 – 2.1.3 Disassembly instructions!
Use the tweezers to remove the Volume key assembly from
the frame.
INSTALLATION
Use the tweezers to mount the Volume key assembly.
Note the right direction of the Camera Key assembly when
assembling.
