Panasonic KX-TGD512 Operating Instructions Manual

With digital answering machine

Hide thumbs Also See for KX-TGD512:

Operating instructions manual (46 pages)

Operating instructions manual (52 pages)

Table Of Contents

Table of Contents

Quick Links

Model shown is KX-TGD510.

Before initial use, see "Getting Started"

on page 10.

Thank you for purchasing a Panasonic product.

Please read these operating instructions before using the unit and save them for

future reference.

Consulte "Guía Rápida Española", página 52.

For assistance, visit our Web site: http://shop.panasonic.com/support for

customers in the U.S.A.

Please register your product: http://shop.panasonic.com/support

TGD51x_OI(en)_1007_ver002.pdf 1

Operating Instructions

Cordless Telephone

Model No.

KX-TGD510

KX-TGD512

KX-TGD513

Cordless Telephone with

Digital Answering Machine

Model No.

KX-TGD530

KX-TGD532

KX-TGD533

KX-TGD534

KX-TGD535

2016/10/07 10:05:45

Table of Contents

Summary of Contents for Panasonic KX-TGD512

Page 1 Please read these operating instructions before using the unit and save them for future reference. Consulte “Guía Rápida Española”, página 52. For assistance, visit our Web site: http://shop.panasonic.com/support for customers in the U.S.A. Please register your product: http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 1...
Page 2: Table Of Contents
Table of Contents Introduction Turning the answering system on/off ..34 Greeting message ........34 Model composition ........3 Listening to messages .......35 Accessory information ........3 Remote operation ........36 Graphical symbols for use on equipment and Answering system settings ......37 their descriptions ..........5 Useful Information Important Information Voicemail service ........39...
Page 3: Introduction

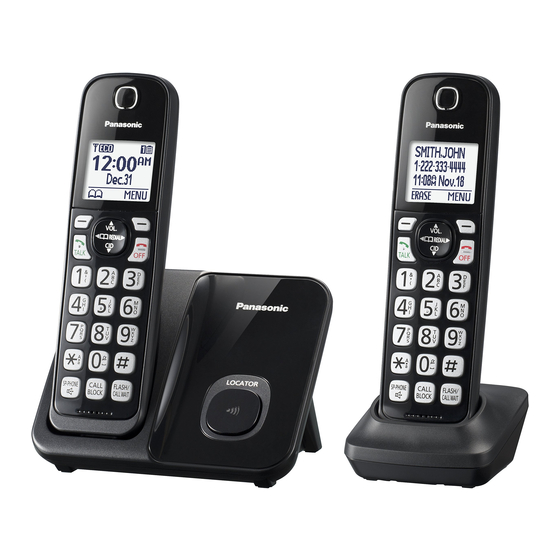

Introduction Model composition n KX-TGD510 series n KX-TGD530 series R Model shown is KX-TGD512. R Model shown is KX-TGD532. Base unit Handset Series Model No. Part No. Part No. Quantity KX-TGD510 KX-TGD510 KX-TGD510 KX-TGDA50 series KX-TGD512 KX-TGD510 KX-TGDA50 KX-TGD513 KX-TGD510...
Page 4 This product can be purchased online. Please visit our Web site: http://shop.panasonic.com/support By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to which the key detector is attached.
Page 5: Graphical Symbols For Use On Equipment And Their Descriptions
Insulation or Reinforced Insulation) Direct current (D.C.) “ON” (power) Protective earth “OFF” (power) Protective bonding earth Stand-by (power) Functional earth “ON”/“OFF” (power; push-push) For indoor use only Caution, risk of electric shock For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 5 2016/10/07 10:05:45...
Page 6: Important Information
R The AC adaptor is used as the main such devices to malfunction resulting in an disconnect device. Ensure that the AC accident. outlet is installed near the product and is easily accessible. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 6 2016/10/07 10:05:45...
Page 7: Important Safety Instructions
Failure to follow these instructions may Base unit location/avoiding noise cause the batteries to swell or explode. Attention: The base unit and other compatible Panasonic units use radio waves to communicate with each other. R For maximum coverage and noise-free communications, place your base unit: –...
Page 8: Other Information
R Do not use benzine, thinner, or any abrasive powder. Other information CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 8 2016/10/07 10:05:45...
Page 9: Specifications
Maximum: Approx. 1.8 W R Operating conditions: 0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 % relative air humidity (dry) KX-TGD510 series: page 3 KX-TGD530 seires: page 3 For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 9 2016/10/07 10:05:46...
Page 10: Getting Started Setting Up
(RJ11C) until you hear a click. A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Note: R Use only the supplied Panasonic AC adaptor PNLV226. R Follow the directions on the display to set up the unit.
Page 11 Note for battery installation R Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted on page 4, 7. Note for battery charging Battery charging R It is normal for the handset to feel warm during charging.
Page 12: Controls
R Eco mode is turned off when the clarity booster is activated (page 17). Speaker N (TALK) Dial keypad (*: TONE) MZN (SP-PHONE: Speakerphone) MCALL BLOCKN Microphone Receiver Display MOFFN ( For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 12 2016/10/07 10:05:46...
Page 13: Display Icons
R When flashing: The call is put on hold. R When flashing rapidly: An incoming call is now being received. Eco mode is on. (page 12) Speakerphone is on. (page 16) For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 13 2016/10/07 10:05:46...
Page 14: Language Settings
Voice announcement language MbN: “Yes” a MSELECTN Available for: Record a greeting message. a MSTOPN KX-TGD530 series (page 3) a MOFFN You can select the language used for the following features. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 14 2016/10/07 10:05:46...
Page 15: Other Settings
The default setting is “Tone”. “Tone”: For tone dial service. “Pulse”: For rotary/pulse dial service. MMENUN#120 MbN: Select the desired setting. a MSAVEN a MOFFN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 15 2016/10/07 10:05:46...
Page 16: Making/Answering Calls
R You can turn the ringer on again by calls using a PBX or long distance service. pressing and holding 0 until the unit beeps. When storing a calling card access number For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 16 2016/10/07 10:05:46...
Page 17: Useful Features During A Call
If you subscribe to both Caller ID and Call made between handsets. Waiting with Caller ID services, the 2nd caller’s information is displayed on the unit During an outside call, press MMENUN. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 17 2016/10/07 10:05:46...
Page 18: Intercom
MMENUN a MbN: “Intercom” a MSELECTN MbN: Select the desired unit. a MSELECTN When you finish talking, press MOFFN. Note: R You can also use the MINTERCOMN soft key, if displayed, to make intercom calls. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 18 2016/10/07 10:05:46...
Page 19: Call Block
– “Block unknown CID”: The unit blocks MbN: “Block a single number” a calls that have no phone number. MSELECTN MMENUN a MbN: “Add” a MSELECTN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 19 2016/10/07 10:05:46...
Page 20 MCALL BLOCKN MbN: “One ring for blocked call” a MSELECTN MbN: Select the desired setting. a MSAVEN a MOFFN Viewing/editing/erasing call block numbers MCALL BLOCKN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 20 2016/10/07 10:05:46...
Page 21: Phonebook
MEN to move the cursor to the next space. R If you do not press any dial key within 2 seconds after entering a character, the For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 21 2016/10/07 10:05:46...
Page 22 Find the desired entry (page 22). you wish to chain dial (page 21). MMENUN a MbN: “Edit” a MSELECTN Edit the name if necessary. a MOKN Edit the phone number if necessary. a MOKN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 22 2016/10/07 10:05:46...
Page 23: Speed Dial
MOKN a MSELECTN a MOFFN Erasing an entry Press and hold the desired speed dial key (1 to 9). a MMENUN MbN: “Erase” a MSELECTN MbN: “Yes” a MSELECTN a MOFFN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 23 2016/10/07 10:05:46...
Page 24: Programming
– – #323 Play all message – – #324 Erase all – – #325 message Greeting – #302 Record greeting Check greeting – #303 – #304 Pre-recorded (Reset to pre-recorded greeting) For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 24 2016/10/07 10:05:46...
Page 25 Memo alarm Alarm1-3 <Off> #720 Once Daily Weekly *2, *4 – <Caller ID #226 – Time adjustment auto> Manual Main menu: “Speed dial” Operation Code Viewing the speed dial entry. #261 For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 25 2016/10/07 10:05:46...
Page 26 (for Registration – #6571 – Detector2) #6572 – 3: Add new #6573 device (for Detector3) #6574 – 4: Add new Deregistration – #6581 – device (for #6582 Detector4) #6583 #6584 For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 26 2016/10/07 10:05:46...
Page 27 90 ms 100 ms 110 ms 160 ms 200 ms 250 ms 300 ms 400 ms 600 ms <700 ms> 900 ms *2, *12 A <B> #122 – Set line mode For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 27 2016/10/07 10:05:46...
Page 28 *11 The flash time depends on your telephone exchange or host PBX. Contact your PBX supplier if necessary. The setting should stay at “700 ms” unless pressing MFLASHN fails to pick up the waiting call. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 28 2016/10/07 10:05:46...
Page 29: Alarm
R We recommend turning the base unit ringer Set the desired time. off (page 16) in addition to turning the silent mode on. (KX-TGD530 series: page 3) *: Select “AM” or “PM”. a MOKN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 29 2016/10/07 10:05:47...
Page 30: Other Programming
“Handset 6”. You can customize the name Handset: of each handset (“Bob”, “Kitchen”, etc.). This is Press MOKN, then wait until a long beep useful when you make intercom calls between sounds. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 30 2016/10/07 10:05:47...
Page 31 MMENUN#131 R All handsets registered to the base unit are displayed. MbN: Select the handset you want to cancel. a MSELECTN MbN: “Yes” a MSELECTN a MOFFN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 31 2016/10/07 10:05:47...
Page 32: Caller Id Service
To call back, press M matches a phone number stored in the To exit, press MOFFN. phonebook, the stored name in the phonebook is displayed and logged in the caller list. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 32 2016/10/07 10:05:47...
Page 33 This feature can be set for each unit (page 27). The default setting is “On”. Note: R Phone numbers from the 4 most recently edited area codes are automatically edited. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 33 2016/10/07 10:05:47...
Page 34: Answering System
“Greeting only”, callers’ messages are not recorded and the unit Base unit plays a different pre-recorded greeting Press MANSWER ON/OFFN to turn on/off the message asking callers to call again. answering system. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 34 2016/10/07 10:05:47...
Page 35: Listening To Messages
Erase currently playing MSTOPN Stop playback message Turn answering system off If pressed within the first 5 seconds of a Erase currently playing message, the previous message is message played. Erase all messages For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 35 2016/10/07 10:05:47...
Page 36: Remote Operation
R If you do not press any dial keys within 10 A 3-digit remote access code must be entered seconds after a voice guidance prompt, the when operating the answering system unit disconnects your call. remotely. This code prevents unauthorized For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 36 2016/10/07 10:05:47...
Page 37: Answering System Settings
(page 36). You can change the maximum message recording time allowed for each caller. The default setting is “3 min”. MMENUN#305 MbN: Select the desired setting. a MSAVEN a MOFFN For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 37 2016/10/07 10:05:47...
Page 38 – If you use your own message, record the greeting-only message asking callers to call again later (page 34). For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 38 2016/10/07 10:05:47...
Page 39: Useful Information
Contact your “Voicemail msg. via phone co.” is phone service provider for the required displayed if message indication service is pause time. available. MMENUN#330 R The speakerphone turns on. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 39 2016/10/07 10:05:47...
Page 40: Wall Mounting
Tuck the telephone line cord inside the wall mounting adaptor (A). Connect the AC adaptor cord and telephone line cord (B). AC adaptor cord For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 40 2016/10/07 10:05:47...
Page 41 ( ) and ( ) respectively. Adjust the adaptor to hold the base unit, then push it in the direction of the arrow until it clicks into place. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 41 2016/10/07 10:05:47...
Page 42 To remove the wall mounting adaptor While pushing down the release levers (A), remove the adaptor (B). Charger Drive the screws ( ) (not supplied) into the wall. 27.2 mm (1 inches) For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 42 2016/10/07 10:05:47...
Page 43: Error Messages
R A wrong type of battery such as alkaline or manganese was rechargeable inserted. Use only the rechargeable Ni-MH batteries noted on battery. page 4, 7. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 43 2016/10/07 10:05:47...
Page 44: Troubleshooting
Cancel unused handset registrations from the base unit (page 31). Battery recharge Problem Cause/solution R Battery charge is low. Fully charge the batteries (page 11). The handset beeps and/or flashes. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 44 2016/10/07 10:05:47...
Page 45 I cannot make a call. R The dialing mode may be set incorrectly. Change the setting (page 15). I cannot make long distance R Make sure that you have long distance service. calls. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 45 2016/10/07 10:05:47...
Page 46 After subscribing, you may need to contact your phone service provider again to activate this specific service, even if you already subscribed to both Caller ID and Call Waiting with Caller ID services (CWID). For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 46 2016/10/07 10:05:47...
Page 47 You can also remove this notification by pressing and holding # until the unit beeps. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 47 2016/10/07 10:05:47...
Page 48 If the unit does not work properly, contact an authorized service center. Caution: R To avoid permanent damage, do not use a microwave oven to speed up the drying process. For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 48 2016/10/07 10:05:47...
Page 49: Fcc And Other Information
But if advance notice isn't practical, the applicable) when using this phone. Consult telephone company will notify the customer with your audiologist or Hearing Aid as soon as possible. Also, you will be For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 49 2016/10/07 10:05:47...
Page 50 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 50 2016/10/07 10:05:47...
Page 51 Compliance with TIA-1083 standard: Telephone handsets identified with this logo have reduced noise and interference when used with T-Coil equipped hearing aids and cochlear implants. Compatible with Hearing Aid T-Coil TIA-1083 For assistance, please visit http://shop.panasonic.com/support TGD51x_OI(en)_1007_ver002.pdf 51 2016/10/07 10:05:48...
Page 52: Guía Rápida Española
(RJ11C) hasta que escuche un clic. 4 Se requiere un filtro DSL/ADSL (no incluido) si tiene este tipo de servicio. Nota: L Use solo el adaptador de corriente alterna Panasonic PNLV226 que se suministra. Cargador 1 Conecte el adaptador de corriente alterna a la toma de corriente.
Page 53 {<} k: Vea la entrada del directorio telefónico. {>} REDIAL (Remarcación): Vea la lista de remarcación. {V} CID (identificador de llamadas): Vea la lista de personas que llamaron. Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés) TGD51x_OI(en)_1007_ver002.pdf 53 2016/10/07 10:05:48...
Page 54 Cómo hacer una llamada usando la lista de remarcación Para ajustar el volumen del Oprima {^} o {V} repetidamente para seleccionar el volumen deseado timbre del auricular mientras timbra. Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés) TGD51x_OI(en)_1007_ver002.pdf 54 2016/10/07 10:05:48...
Page 55 L Trate de reubicar la unidad base de forma que se minimice la distancia la conversación? al auricular. L Si ocurre el mismo problema aunque el auricular se encuentre enseguida de la unidad base, visite: http://shop.panasonic.com/support Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés) TGD51x_OI(en)_1007_ver002.pdf 55 2016/10/07 10:05:48...
Page 56 Esto no daña las baterías. tiempo? ¿Cómo se contestan las L Oprima {CALL WAIT} cuando escuche el tono de llamada en espera. llamadas en espera (segunda llamada)? Para obtener ayuda, visite http://shop.panasonic.com/support (solo en inglés) TGD51x_OI(en)_1007_ver002.pdf 56 2016/10/07 10:05:48...
Page 57: Appendix
Appendix Customer services Shop Accessories! for all your Panasonic gear Go to h p://shop.panasonic.com/support Get everything you need to get the most out of your Panasonic products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Ba eries, Backup Chargers &...
Page 58: Limited Warranty (Only For U.s.a.)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,...
Page 59 Service Center. If the problem is not handled to your satisfaction, then write to: Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320 PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Page 60: Index
Index Registration: 30 Hold: 17 Index Intercom: 18 Key detector: 26, 28 3-way conference: 17 Key tone: 27 Additional handset: 30 Line mode: 27 Alarm: 29 Answering calls: 16 Making calls: 16 Answering system Missed calls: 32 Call screening: 37 Mute: 17 Erasing messages: 35, 36, 37 Pause: 16...
Page 61 Notes TGD51x_OI(en)_1007_ver002.pdf 61 2016/10/07 10:05:48...
Page 62 Notes TGD51x_OI(en)_1007_ver002.pdf 62 2016/10/07 10:05:48...
Page 63 Notes TGD51x_OI(en)_1007_ver002.pdf 63 2016/10/07 10:05:48...
Page 64 Date of purchase (found on the bottom of the base unit) Name and address of dealer Attach your purchase receipt here. Two Riverfront Plaza, Newark, NJ 07102-5490 © Panasonic System Networks Co., Ltd. 2016 Printed in Malaysia *PNQX8349ZA* *PNQX8349ZA* PNQX8349ZA PP1116YK0 TGD51x_OI(en)_1007_ver002.pdf 64...
