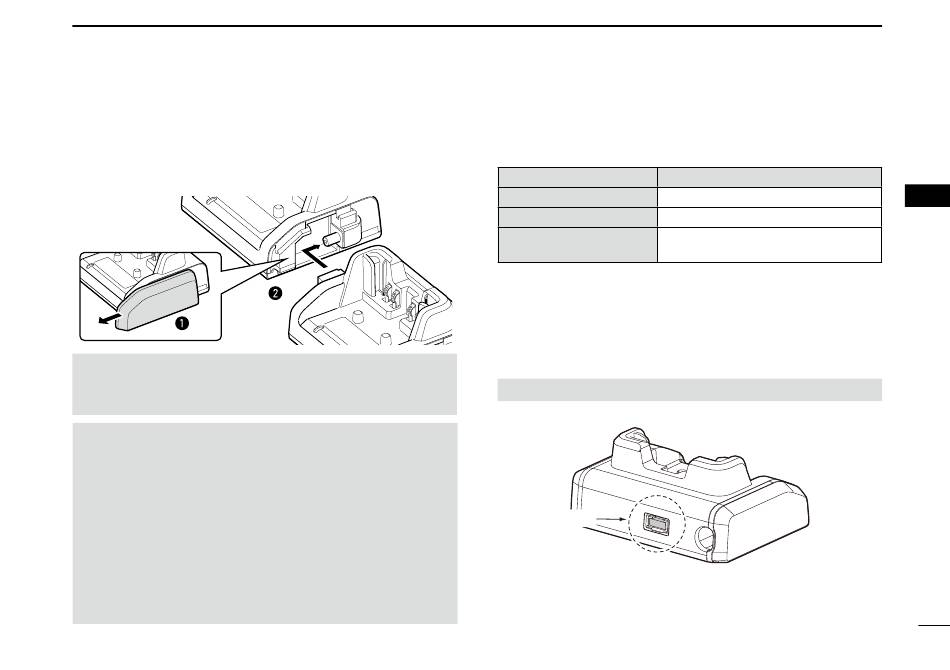

Connecting BC-226 together
You can connect up to 6 BC-226 together.
1.
Remove the charger's right cover. (q)
2. Snap the DC power plug to the other charger's DC
power jack. (w)
WARNING: DO NOT connect more than 6 chargers
together. It may result in an electric shock, cause a fire,
overheating, or damage chargers.
NOTE:
• The transceiver MUST be turned OFF while charging.
Otherwise:
- The battery will not be charged correctly.
- The battery life may be shortened.
• Do not transmit while charging. When you need to
transmit, remove the transceiver from the charger, and
then turn ON the power.
• If the battery pack does not properly charge when it is
attached to the transceiver, remove it from the transceiver
and insert only the battery pack into the charger.
BATTERY CHARGING
D Information
Status indicator
Light color
Orange
Charging
Green
Charging is completed.
Blinks orange and green
Charging failed. It may have some
problems.
BC-226 Fuse replacement
If a fuse blows, find and repair the cause of the problem.
Then replace the damaged fuse with a new, adequately
rated fuse.
Fuse type: 5 A/58 V (low profile mini blade fuse)
NOTE: Remove the fuse using the needle-nose pliers.
