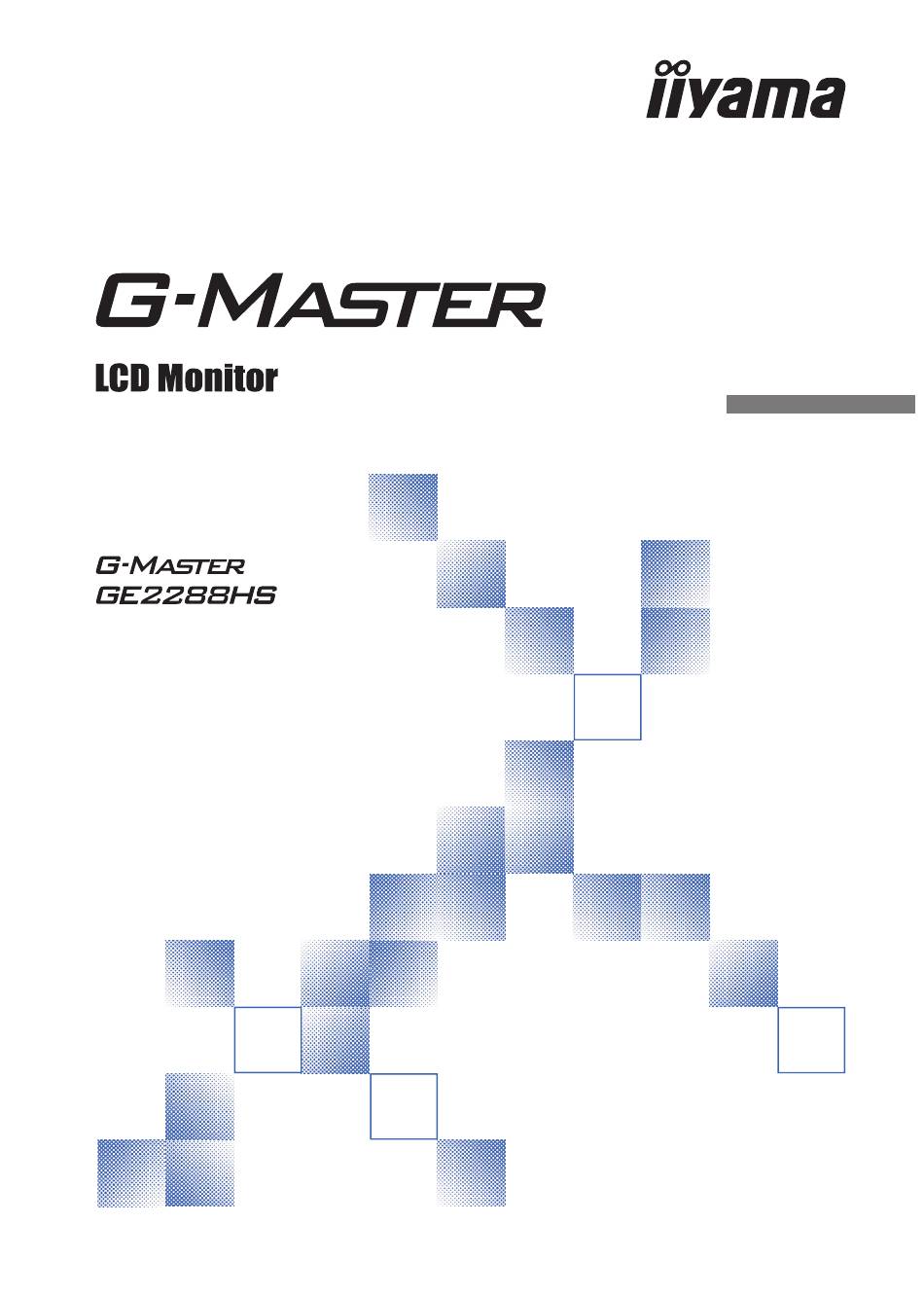

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2288H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ..........8 COMPUTER SETTING ..............9... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screws (4pcs) with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Power Indicator NOTE Blue: Normal operation Orange: Power Management Select / Input Button ( Scroll up / Audio Adjust Button ( Scroll down / i-Style Mode Button ( Menu Button ( Speakers Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE... -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 13: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 22: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you 5°... -
Page 14: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 22. You are also able to adjust the picture by following the button operation shown below. -
Page 15: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark 1,2,3 Brightness * Too bright Off / -2 / -1 / 0 / +1 / +2 It will improve the gray level response time of the Overdrive LCD panel. - Page 16 Input Select Direct Input Select Adjustment Item Problem / Option Button to Press Select the DVI input. HDMI Select the HDMI input. Input Select Search for an available input source and select Auto automatically. Input source is fi xed, not selected automatically when DVI and HDMI which are selected. NOTE Direct You can skip the Menu items and directly display an option setting screen by using the following...
- Page 17 Store User Setting Store User Setting Adjustment Item Problem / Option Button to Press User Mode 1 Save the settings of the screen adjustment. User Mode 2 Save the settings of the screen adjustment. Memorize Settings User Mode 3 Save the settings of the screen adjustment. You can memorize your customized monitor settings.
- Page 18 Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Off i-Style Mode is turned Off . For general windows environment and monitor Standard default setting. For Sports game environment. Sport Game FPS Game For FPS game environment. Strategy Game For Strategy game environment.
- Page 19 LED* The Power Indicator is turned On. NOTE Turn Off the Power Indicator when you are bothered by the light. iiyama Logo does not display when the monitor is Off turned on. Opening Logo* iiyama Logo displayed when the monitor is turned on.
- Page 20 Information Information <Example> Displays information regarding the current input signal coming from the graphic card in your computer. Information Resolution: 1920x1080 H.Frequency: 67.56KHz See your graphic card user guide for more information NOTE V.Frequency: 60.0Hz Pixel Clock: 148.5MHz about changing the resolution and refresh. Model Number: GE2288HS 1 : E x i t...
- Page 21 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 10 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2.
-
Page 22: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 23: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 24: Recycling Information
A strange noise The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 20 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 25: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 22" Panel technology Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 °... -
Page 26: Dimensions
DIMENSIONS 513.0mm/20.2” 47.5mm/1.9” 478.0mm/18.8” 189.5mm/7.5” * Protruding portion(s) not included. COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz...
