Summary of Contents for Gigabyte P37X

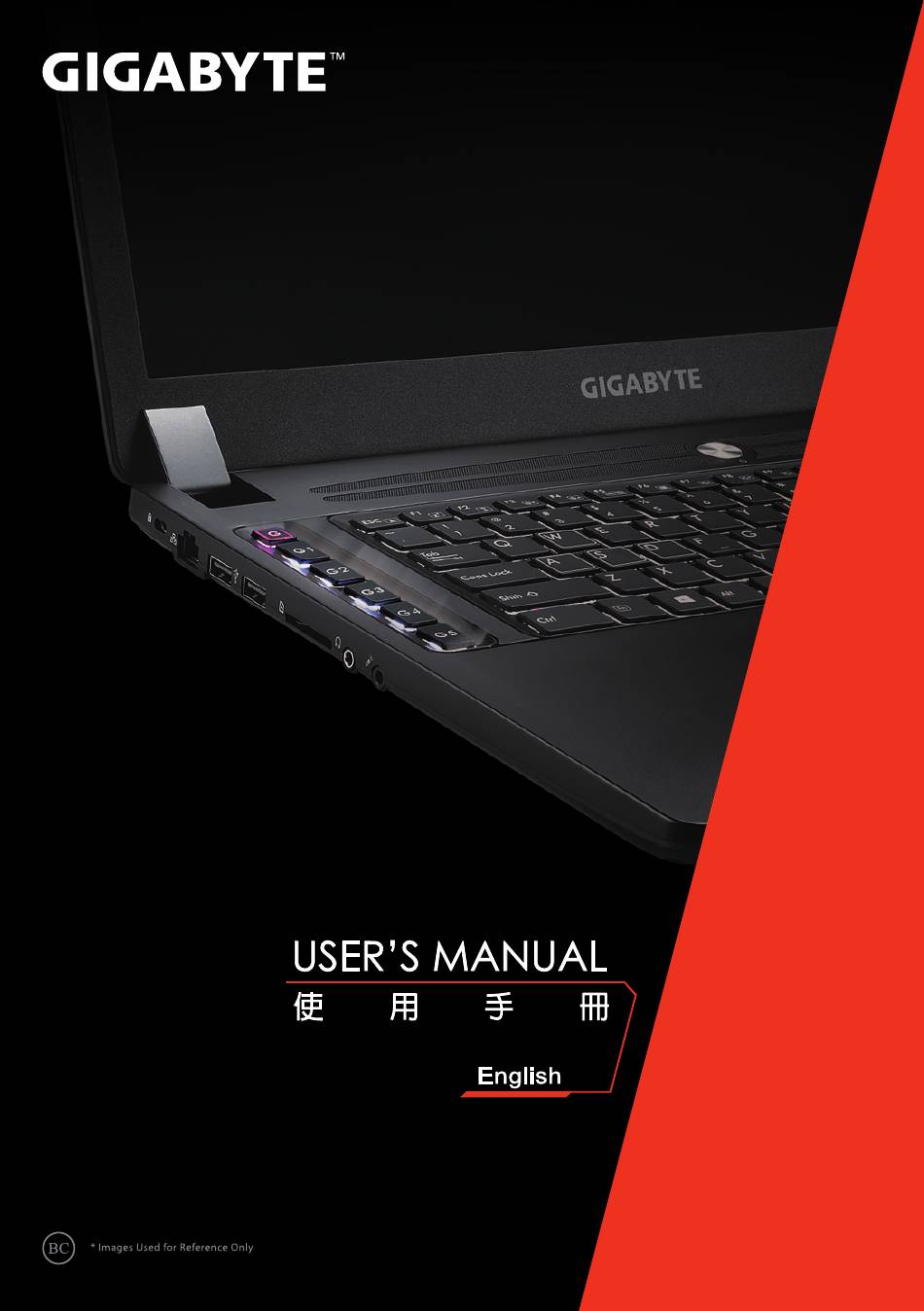

- Page 1 V3.0...
-
Page 2: Switching On The Power
This manual will help you to get started with setting up your notebook. The final product configuration depends on the model at the point of your purchase. GIGABYTE reserves the right to amend without prior notice. For more detailed information, please visit our website at www.gigabyte.com... - Page 3 Follow the on-screen prompts and instructions and enter ® your personal information to complete the setup of the Windows Operating System. Your GIGABYTE Notebook Tour Top View & Front View Light sensor Webcam...
-
Page 4: Left View
USB 3.0 Port USB 3.0 Port (USB Charge) HDMI Port External Display (VGA) Port DC-in Jack Base View Memory Compartment Speakers Warning: DO NOT remove the built-in lithium battery. For any service needs, please contact your local GIGABYTE Authorized Service Center. - Page 5 Hotkeys The computer employs hotkeys or key combinations to access most of the computer’s controls like screen brightness and volume output. To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination. Function Description Hotkey Fn+ESC...
- Page 6 Swappable bay Application Unlock swappable bay locker. Draw the swappable bay out. 9.5mm/7mm HDD/SSD only Connect the HDD or SSD pin by sliding it into the connecter.
- Page 7 Gently push the plastic frame outwards. Slide in the HDD or SSD until it locks into place. There will be a slight click. Pull swappable bay back to slot. Lock swappable bay locker.
- Page 8 Macro Hub Instruction Welcome to use Macro Hub ! Macro Hub makes it much easier for you to control your Macro Key on P37. You can deal with complex key stroke combination by just one press on macro key, which brings you benefits both in work and game.
- Page 9 Using Macro Hub Set Macro Key to basic function a. Click the G button on the left-top of the b. Click the Macro Key function brick keyboard to switch to the Macro Key group you would like to use c. Double-click the function you would like to use(ex. Media Player) in the Basic or Macros function area.
- Page 10 Edit macro command funtions anf settings. a. Click "Macros" (you can set up to 100 sets of macro) b. Overview of macro record panel (you can record your own macro here) 1. Start recording: Click when you’re about to record the macro 2.
- Page 11 11. Delete selected: Delete selected movement 12. Movement list: it shows all movement you record 13. Exit: The system will inquire you if to save the recorded macro c. Start to record macro: When you click start button, the macro engine will start to record macro.
- Page 12 Edit "Settings" of Macro Hub 1. Software update: Update latest version of GIGABYTE Macro Hub 2. Clean memory: Erase current Macro Hub settings 3. Firmware Upgrade: Upgrade Macro Key firmware...
- Page 13 Setup Your System for RAID 0/1 WARNING ● Please backup your data before you build and run RAID 0/1 on your system. ● RAID 1 needs two storage drives of the same specification and capacity in your laptop. ● R AID 0 needs two storage drives of the same specification in your laptop. Different capacity is acceptable.
- Page 14 • Insert the driver disk to your optical drive and run the install of “Smart USB Backup” (for none-ODD model, please use USB ODD device or download from http://www.gigabyte.com • Run the “Smart USB Backup” after finishing the install. • Select your USB disk from the drop- d ow n l i st a n d st a r t to c r e ate t h e recovery USB disk.
- Page 15 Recovery Guide System Recovery (Restore your laptop operating system) When something is going wrong with the laptop operating system, the storage of the laptop has a hidden partition containing a full back up image of the operating system that can be used to restore the system to factory default settings.
- Page 16 A progress indicator bar will show on the window when the recovery process is running. Please make sure the AC-adapter is plugged in and do not turn off the laptop. Reboot the laptop after the system recovery is complete. Windows 8.1 Recovery Guide Turn off and restart the laptop.
- Page 17 ▓ Choose “Refresh your PC” Choose an account to continue. Here are what will happen ˙ Your files and personalization settings won’t be changed. ˙ Your PC settings will be restored to factory default settings. ˙ Apps from Windows Store will be kept. ˙...
-
Page 18: Warranty And Service
Appendix Warranty & Service: „ Warranty and service and related information please refer to the warranty card or GIGABYTE service website as the below link: http://www.gigabyte.com/support-downloads/technical-support.aspx FAQ: „ FAQ (Frequent Asked Questions) please refer to the below link: http://www.gigabyte.com/support-downloads/faq.aspx...
