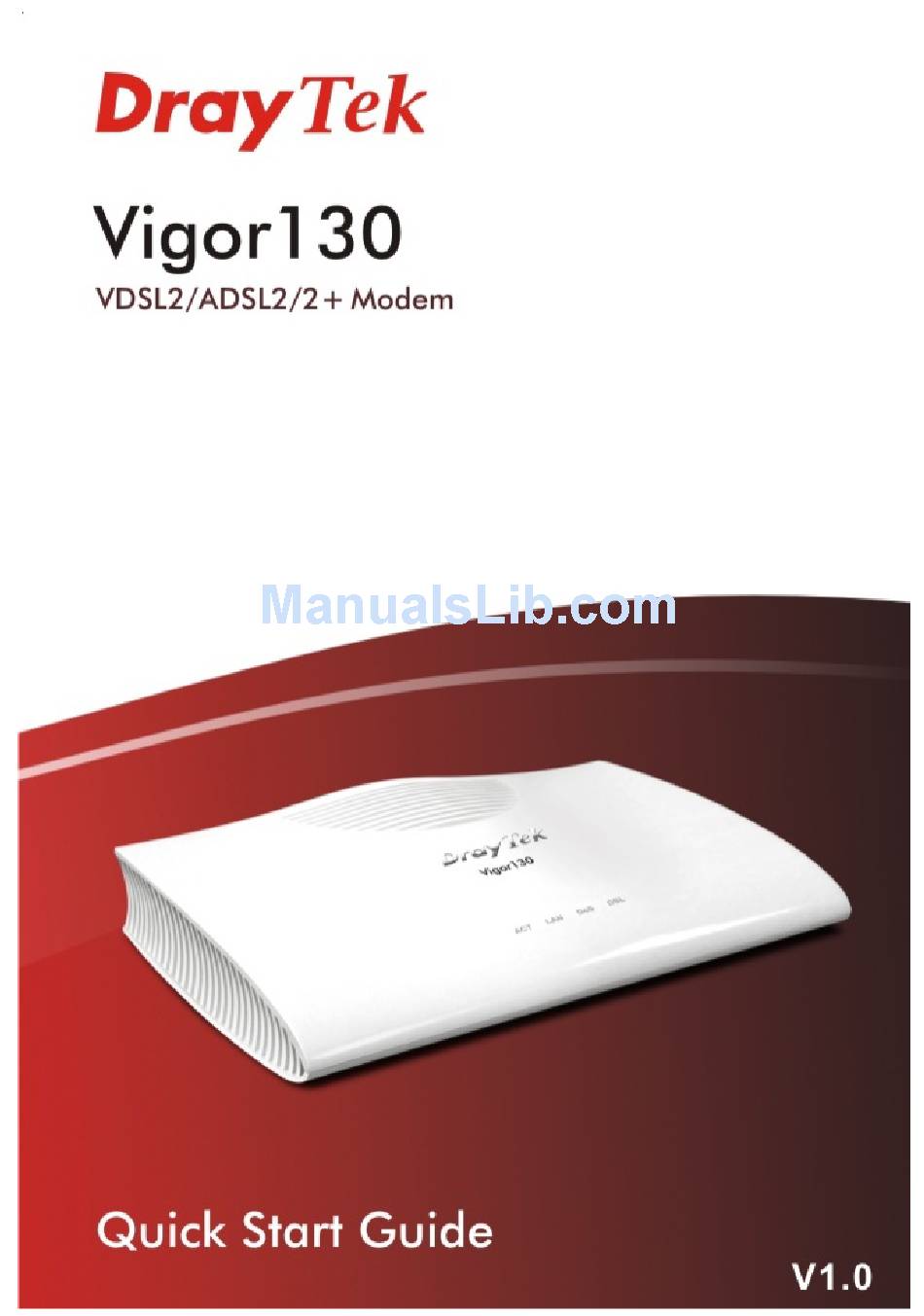

Page 2: Quick Start Guide
Product: Vigor130 DrayTek Corp. declares that Vigor130 is in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. -
Page 3: Components View
Package Content Quick Start Guide RJ-45 Cable (Ethernet) The type of the cable depends on the country that the modem will be installed: RJ-11 to RJ-11 Cable RJ-11 to RJ-45 Cable RJ-45 to RJ-45 Cable (Annex A) (Annex B) (Annex B) The type of the power adapter depends on the country that the modem will be installed: UK-type power adapter... -
Page 4: Leds
Descriptions of Components Status Explanation The system is not ready or is failed. Blinking The system is ready and can work normally. A normal connection is through its corresponding port. LAN is disconnected. Blinking Data is transmitting (sending/receiving). The DoS/DDoS function is active. Blinking It will blink while detecting an attack. -
Page 5: Installing Your Modem
Installing Your Modem This section will guide you to install the modem through hardware connection and configure the modem’s settings through web browser. Before starting to configure the modem, you have to connect your devices correctly. 1. Connect the DSL interface to the MODEM port of external splitter with a DSL line cable. -
Page 6: Configuring Web Pages
Configuring Web Pages The Quick Start Wizard is designed for you to easily set up your modem for Internet access. You can directly access the Quick Start Wizard via Web User Interface. 1. Make sure your PC connects to the modem correctly. Notice: You may either simply set up your computer to get IP dynamically from the modem or set up the IP address of the computer to be the same subnet as the default IP address of Vigor modem... - Page 7 4. Enter the new login password on the field of New Password and retype it on the field of Confirm Password. Then click Next to continue. 5. On the next page as shown below, please select the appropriate Internet access type (Protocol) according to the information from your ISP. Then click Next for next step.
- Page 8 PPPoE or PPPoA: if you click PPPoE or PPPoA as the protocol and click Next, please manually enter the Username/Password provided by your ISP. Then click Next. 1483 Bridged: if you click 1483 Bridged, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step.
- Page 9 1483 Routed IP: if you click 1483 Routed IP, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step. Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary.
- Page 10 Contacting Your Dealer If the modem still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
