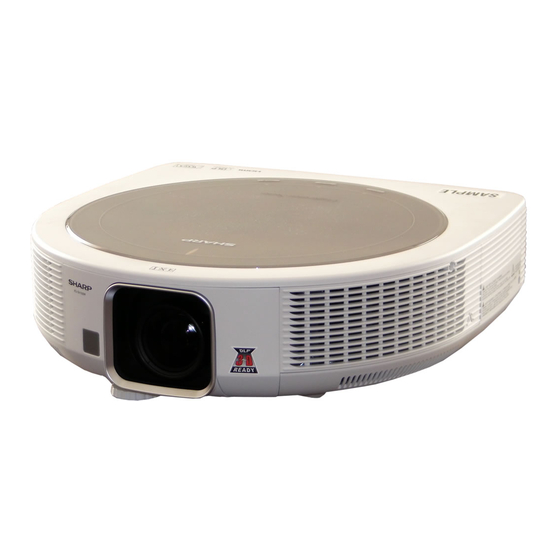

DATA PROJECTOR
MODEL
XG-SV100W
XG-SV200X
OPERATION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Sharp Conference Series

Summary of Contents for Sharp Conference Series

  • Page 1 DATA PROJECTOR MODEL XG-SV100W XG-SV200X OPERATION MANUAL...
  • Page 2 IMPORTANT • For your assistance in reporting the loss Model No.: or theft of your Projector, please record the Model and Serial Number located on the bottom of the projector and retain this Serial No.: information. • Before recycling the packag ing, please ensure that you have checked the con- tents of the carton thoroughly against the list of “Supplied accessories”...
  • Page 3 The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN. Authorized representative responsible for the European Union Community Market SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg E.U. ONLY...
  • Page 4 The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Italian, Dutch, Swedish, Portuguese, Chinese, Korean and Arabic. Carefully read through the operation instructions before operating the projector. Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Spanisch, Italienisch, Niederländisch, Schwedisch, Portugiesisch, Chinesisch, Koreanisch und Arabisch.
  • Page 5 2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notifi cation of inspection, modifi cation, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY”...
  • Page 6 * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

  • Page 7: How To Read This Operation Manual

    Picture Audio Net. Press Q or O and select Picture Mode Standard Contrast “Picture” to adjust. Bright On-screen Color Tint Sharp display Blue CLR Temp BrilliantColor C.M.S.1 C.M.S.2 Level 2 Eco+Quiet Reset SEL./ADJ. ENTER RETURN ..Indicates safeguards for using the projector.

  • Page 8: Table Of Contents

    Contents Preparing Displaying the Black Screen and Introduction Turning Off the Sound Temporarily ..35 Resize Mode .......... 36 How to Read this Operation Manual ..3 Contents ..........4 Useful Features IMPORTANT SAFEGUARDS ....6 How to Access the PDF Operation Operating with the Remote Control..40 Displaying and Setting the Manuals..........10 Break Timer .........
  • Page 9 Resetting the Lamp Timer ...... 74 Compatibility Chart ......75 Attaching the Ceiling-mount Rotating Module (AN-SV100T) ...77 Attaching the Terminal Cover to the Module ..........78 Attaching the Ceiling Mount to the Ceiling ..........79 Troubleshooting ........81 For SHARP Assistance ......84 Specifi cations ........85 Dimensions ...........86 Index .............87...

  • Page 10: Important Safeguards

    IMPORTANT SAFEGUARDS CAUTION: Please read all of these instructions before you operate this product and save these instructions for later use. Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS.
  • Page 11 e. If the product has been dropped or 15. Overloading damaged in any way. Do not overload wall outlets, extension cords, f. When the product exhibits a distinct or integral convenience receptacles as this change in performance, this indicates a can result in a risk of fi...
  • Page 12 Internal cleaning ■ Protect the lens so as not to hit or damage should only be performed by a Sharp the surface of the lens. Authorized Projector Dealer or Service Center. Avoid locations with extremes of temperature.
  • Page 13 Caution regarding usage of the projector Using the projector in other countries ■ ■ If you are not to use the projector for a long The power supply voltage and the shape of time or before moving the projector, make the plug may vary depending on the region certain you unplug the power cord from the or country you are using the projector in.

  • Page 14: How To Access The Pdf Operation Manuals

    How to Access the PDF Operation Manuals PDF operation manuals in several languages are included in the CD-ROM. To ® ® utilize these manuals, you need to install Adobe Reader on your computer ® ® (Windows or Macintosh ® ® Please download Adobe Reader from the Internet (http://www.adobe.com).

  • Page 15: Accessories

    AN-TK202 <for AN-60KT> ■ Ceiling-mount extension tube AN-EP101B <for AN-XGCM55> (for U.S.A. only) Note • Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center.

  • Page 16: Part Names And Functions

    Part Names and Functions Numbers in refer to the main pages in this operation manual where the topic is explained. 9 10 11 9 10 11 Side View AUTO SYNC button For automatically adjusting images when STANDBY/ON button connected to a computer. For turning the power on and putting the ECO+QUIET button projector into Standby mode.

  • Page 17: Rear View (Terminals)

    14 15 14 15 Rear View (Terminals) LAN terminal 22, 23 HDMI terminal Terminal for controlling the projector using a Terminal for HDMI input. computer via network. RS-232C terminal USB terminal Terminal for controlling the projector using Terminal connecting with the USB terminal a computer.
  • Page 18 Part Names and Functions (Continued) Numbers in refer to the main pages in this operation manual where the topic is explained. 42, 40 L-CLICK/EFFECT button • For the Left click when with the USB connection (using a USB cable). • For changing the pointer or spot area.

  • Page 19: Inserting The Batteries

    Inserting the Batteries Pull down the tab on the cover and remove the cover towards the direction of the arrow. Insert the batteries. • Insert the batteries making sure the polarities correctly match the m and n marks inside the battery compartment. Insert the upper tab of the cover into the opening, and lower the cover until it clicks in place.

  • Page 20: Easy Start

    Easy Start This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step. Setup and Projection In this section, connection of the projector and the computer is explained using one example. 3, 8 STANDBY button STANDBY/ON button...
  • Page 21 4. Adjust the angle Adjust the projector angle: • Shift the lens horizontally and vertically. Press H&V SHIFT on the remote control. Press P, R, O or Q on the remote control. • Adjust the projector angle by rotating the adjustment feet.

  • Page 22: Setting Up The Projector

    Setting Up the Projector Video Setup If using this projector outside the U.S.A., please change setting to “0 IRE” in Video Setup. (See page 53.) Setting Up the Projector For optimal image quality, position the projector perpendicular to the screen with the projector's feet fl...

  • Page 23: Screen Size And Projection Distance

    Screen Size and Projection Distance [For XG-SV200X] 4:3 Signal Input (Normal Mode) Distance from the Distance from the lens center to Picture (Screen) size Projection distance [L] lens center the bottom of the image [H] to the center of Diagonal [ ] Width Height Minimum [L1] Maximum [L2]...
  • Page 24 Setting Up the Projector (Continued) [For XG-SV100W] 16:10 Signal Input (Normal Mode) Distance from the Distance from the lens center to Picture (Screen) size Projection distance [L] lens center the bottom of the image [H] to the center of Diagonal [ ] Width Height Minimum [L1] Maximum [L2]...

  • Page 25: Projection (Prj) Mode

    [Menu item ➞ “Ceiling + Rear”] a Ceiling-Mount Setup It is recommended that you use the optional Sharp ceiling-mount adaptor and unit for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold...

  • Page 26: Connecting The Projector To Other Equipment

    Depending on the computer you are using, an image may not be projected unless the computer's external output port is switched on (e.g. Press “Fn” and “F5” keys simultaneously when using a SHARP notebook computer). Refer to the specifi c instructions in your computer's operation manual to enable your computer's external output port.
  • Page 27 Terminal on Terminal on the Equipment Cable connected equipment projector Video equipment HDMI cable (commercially available) HDMI HDMI output terminal 3 RCA to mini D-sub 15 pin cable COMPUTER/ Component COMPONENT 1, 2 video output terminal S-video cable (commercially available) S-VIDEO S-video output terminal...
  • Page 28 ø3.5 mm ø3.5 mm stereo or mono audio cable AUDIO 1 audio output (commercially available or available terminal as Sharp service part QCNWGA038WJPZ) RCA audio RCA audio cable (commercially available) output terminal AUDIO 2 Cables for a camera or a video game...

  • Page 29: Controlling The Projector By A Computer

    Controlling the Projector by a Computer When the RS-232C terminal on the projector is connected to a computer with an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector. Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for “RS-232C Specifi...

  • Page 30: Connecting The Power Cord

    Controlling the Projector by a Computer (Continued) When connecting to the LAN terminal using a LAN cable LINK LED (green) Illuminates when linked. TX/RX LED (yellow) Illuminates when transmitting/receiving data. * To ensure safety, do not connect the LAN terminal with any cables that may cause excessive voltage such as a telephone line.

  • Page 31: Turning The Projector On/Off

    Turning the Projector On/Off Info Turning the Projector On • When “Auto Restart” is set to “On”: If the power cord is unplugged from the outlet or the breaker switch is turned off when the Note that the connections to external projector is on, then the projector equipment and power outlet should be automatically turns on when the power cord...

  • Page 32: Image Projection

    Image Projection Shifting the Lens In addition to the zoom function and adjustment of projection angle using the adjustment feet, you can adjust the position of the projection using the lens shift function. This is a useful function in cases such as when the screen cannot be moved. When moving upward or downward When moving in the left and right direction Adjustable...

  • Page 33: Using The Adjustment Feet

    Press H&V SHIFT on the remote control. • Pressing ENTER on the projector or on the remote control displays the test pattern. Checking the test pattern is useful for more accurate adjustment. ROn-screen display ENTER button LENS SHIFT Adjustment buttons LENS SHIFT TESTPATTERN LENS CENTER...

  • Page 34: Adjusting The Focus

    Image Projection (Continued) Adjusting the Focus Press FOCUS +/– on the remote control to adjust the focus. ROn-screen display FOCUS TESTPATTERN Info ZOOM buttons • It is recommended that the focus be adjusted after the projector has warmed up for at least 30 minutes.

  • Page 35: Correcting Trapezoidal Distortion

    Correcting Trapezoidal Distortion When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction. There are the two types of the Keystone Correction. 1) “GEOMETRIC ADJUSTMENT”...
  • Page 36 Image Projection (Continued) GEOMETRIC ADJUSTMENT ROn-screen display ROn-screen display Press KEYSTONE on the projector or on the remote control repeatedly until “GEOMETRIC ADJUSTMENT” is GEOMETRIC ADJUSTMENT GEOMETRIC ADJUSTMENT displayed. H&V KEYSTONE H&V KEYSTONE ADJUST ADJUST NEXT NEXT RESET RESET Press P, R, O or Q to move the position for the upper left of the image.
  • Page 37 H&V KEYSTONE ROn-screen display ROn-screen display Press KEYSTONE on the projector or on the remote control repeatedly until “H&V KEYSTONE” is displayed. H&V KEYSTONE H&V KEYSTONE ADJUST ADJUST EXIT TEST PTRN EXIT TEST PTRN RESET RESET Press P or R to parallelize the Vertical Keystone Correction (Adjustment with left and right sides of the...

  • Page 38: Switching The Input Mode

    Image Projection (Continued) Switching the Input Mode Select the appropriate input mode for the connected equipment. HDMI, COMPUTER 1/2, Press HDMI, COMPUTER 1/2, S-VIDEO, VIDEO buttons S-VIDEO or VIDEO on the remote control to select the input mode. ■ When you select the input mode with INPUT R/P on the projector: When R/P is pressed, the Input list •...

  • Page 39: Adjusting The Volume

    Adjusting the Volume Press VOL +/– on the remote control or on the projector to adjust the volume. Note • Pressing VOL– will lower the volume. AV MUTE button • Pressing VOL+ will raise the volume. • When the projector is connected to external equipment, the volume level of the external equipment changes in accordance with the volume level of the projector.

  • Page 40: Resize Mode

    Image Projection (Continued) Resize Mode This function allows you to modify or customize the Resize mode to enhance the input image. Depending on the input signal, you can choose a desired image. Press RESIZE. • See page for setting on menu screen. RESIZE RESIZE [For XG-SV200X]...
  • Page 41 [For XG-SV200X] VIDEO/DTV Input signal For 4:3 screen For 16:9 screen Video/DTV Image type NORMAL AREA ZOOM V-STRETCH BORDER 16:9 4:3 aspect ratio , 480P, , 576P, NTSC, PAL, SECAM Squeeze Letter box 720P, 1035 1080 , 1080P 16:9 aspect ratio —*1 —*1 16:9 aspect ratio...
  • Page 42 Image Projection (Continued) [For XG-SV100W] COMPUTER Main resolution NORMAL FULL NATIVE 16:9 SVGA (800 × 600) 800 × 600 XGA (1024 × 768) 1024 × 768 4:3 aspect ratio 1068 × 800 SXGA (1152 × 864) 1152 × 864 1280 × 720 SXGA+ (1400 ×...
  • Page 43 [For XG-SV100W] VIDEO/DTV Input signal Output screen image Video/DTV Image type NORMAL AREA ZOOM V-STRETCH 16:9 4:3 aspect ratio 480I, 480P, 576I, 576P, NTSC, PAL, Squeeze SECAM Letter box 16:9 aspect ratio 720P, 1035I, 1080I, 1080P 16:9 aspect ratio —*1 16:9 aspect ratio 540P 16:9 aspect ratio...

  • Page 44: Operating With The Remote Control

    Operating with the Remote Control AUTO SYNC button FREEZE button Displaying the Pointer POINTER button Press POINTER and press P/R/ SPOT button O/Q on the remote control to Adjustment buttons move the pointer. (P/R/O/Q) • Press EFFECT to change the pointer icon (5 types).

  • Page 45: Auto Sync (Auto Sync Adjustment)

    Auto Sync Displaying an Enlarged (Auto Sync Adjustment) Portion of an Image Auto Sync function works when detecting Graphs, tables and other portions of input signal after the projector turns on. projected images can be enlarged. This is helpful when providing more detailed Press AUTO SYNC to manually adjust explanations.

  • Page 46: Using The Remote Control As The Wireless Computer Mouse

    Connecting with a USB cable Computer To USB terminal To USB terminal USB cable (commercially available or available as Sharp service part QCNWGA014WJPZ) The mouse pointer can be MOUSE/Adjustment MOUSE/Adjustment buttons ( / / / ) buttons ( / / / ) operated in the following way after it is connected.

  • Page 47: Menu Items

    Page Movie Game sRGB Audio Input Audio1 Audio2 Page HDMI Contrast Audio Out Bright Page Color Treble Tint Page Sharp Bass Page Blue Page CLR Temp Page BrilliantColor™ Page C.M.S.1 Select Color Page Saturation Value Effect C.M.S.1 [On/Off] Reset Return C.M.S.2...
  • Page 48 Menu Items (Continued) “Signal adjustment (SIG)” menu “Screen adjustment (SCR)” menu Main menu Sub menu Main menu Sub menu Clock -150 +150 Resize Normal Full Page Page Page Phase Native Area Zoom H-Pos -150 +150 V-Stretch V-Pos Border 16:9 Reset Page Wall Color Blackboard...
  • Page 49 “Projector adjustment (PRJ)” menu “Network (Net.)” menu Main menu Sub menu Main menu Sub menu Auto Power Off [On/Off] Password Net. [Enable/Disable] Page Page Page Page Auto Restart [On/Off] Page DHCP Client [On/Off] Page COMPUTER2 Select Input Monitor Output Page TCP/IP IP Address Subnet Mask...

  • Page 50: Using The Menu Screen

    The “Picture” menu screen for the selected Menu item input mode is displayed. Picture Audio Net. Press Q or O and select Picture Mode Standard Contrast “Picture” to adjust. Bright Color Tint Sharp Blue CLR Temp BrilliantColor C.M.S.1 C.M.S.2 Level 2 Eco+Quiet Reset SEL./ADJ. ENTER RETURN...
  • Page 51 Audio Net. Press P or R and select “Bright” Picture Mode Standard to adjust. Contrast • The selected item is highlighted. Bright Color Tint Sharp Blue CLR Temp BrilliantColor C.M.S.1 C.M.S.2 Level 2 Eco+Quiet Reset SEL./ADJ. ENTER RETURN Items to be adjusted...

  • Page 52: Picture Adjustment ("Picture" Menu)

    Picture Mode Standard Contrast • When “sRGB” is selected, the projected image Bright may become dark, but this does not indicate a Color malfunction. Tint Sharp 2 Adjusting the Image Blue CLR Temp BrilliantColor Adjustment C.M.S.1 O button Q button items C.M.S.2...

  • Page 53: Adjusting The Color Temperature

    Menu operation n Page • If there is data for the stored corrected Adjusting the Color color, the C.M.S. color adjustment screen Temperature is displayed. (Go to step 3.) C.M.S.1 Select Color Selectable Description Saturation Value items Effect C.M.S.1 Reset Return For lower color temperature for –2...

  • Page 54: Reducing Image Noise (Dnr)

    Picture Adjustment (“Picture” Menu) (Continued) Menu operation n Page Set or adjust each item in the To complete the C.M.S. color C.M.S. color adjustment screen. adjustment, select “Return” and press ENTER. C.M.S.1 Select Color Saturation Value Effect C.M.S.1 Reset Return Note •...

  • Page 55: Audio Adjustment ("Audio" Menu)

    Audio Adjustment (“Audio” Menu) Menu operation n Page Picture Audio Net. 3 Audio Output Type Setting Speaker Audio Input Audio1 This function determines whether the audio Audio Out level output from the AUDIO output terminal is Treble Bass fi xed or variable by linking with VOLUME. Selectable Description items...

  • Page 56: Signal Adjustment ("Sig" Menu)

    Signal Adjustment (“SIG” Menu) Menu operation n Page Picture Audio Net. 3 Auto Sync Adjustment Clock Phase Used to automatically adjust a computer H-Pos image. V-Pos Reset Resolution 1024 x 768 Selectable Description Auto Sync items Signal Type Auto Auto Sync adjustment will occur when Video System Auto the projector is turned on or when the...

  • Page 57: Setting The Video System

    Menu operation n Page 5 Setting the Video System 7 Selecting the Dynamic Range The video input system mode is factory preset An optimum picture may not be displayed if an to “Auto”; however, a clear picture from the HDMI capable device’s output signal type and connected audio-visual equipment may not be the projector’s input signal type do not match.

  • Page 58: Screen Adjustment ("Scr" Menu)

    Screen Adjustment (“SCR” Menu) Menu operation n Page Picture Audio Net. 3 Setting the Overscan Resize Normal Wall Color This function allows you to set the overscan Overscan area (display area). OSD Display Closed Caption Selectable Background Logo Description PRJ Mode Front items Language...

  • Page 59: Closed Caption

    Background Image <For Americas only> Selectable Info Description items • This function is available for NTSC3.58 signal. Logo SHARP default image • This function may not work depending on the resize mode. Blue Blue screen None Black screen •...

  • Page 60: Helpful Functions Set During Installation ("Prj" Menu)

    Helpful Functions Set during Installation (“PRJ” menu) Menu operation n Page Picture Audio Net. 3 COMPUTER2 Select Auto Power Off Auto Restart You can also use the MONITOR OUT terminal COMPUTER2 Select Monitor Output as the COMPUTER/COMPONENT 2 terminal. STANDBY Mode Standard RS-232C 9600bps...

  • Page 61: Fan Mode Setting

    • If you lose or forget your keycode, contact your the new keycode in “New Code”. nearest Sharp Authorized Projector Dealer or Service Center (see page 84). Even if the product warranty is valid, the keycode reset will incur a Note charge.

  • Page 62: Keylock Function

    Helpful Functions Set during Installation (“PRJ” menu) (Continued) Menu operation n Page Taking the Keylock Off Enter the same keycode in “Re- Hold down ENTER on the projector for about confi rm”. 5 seconds. On-screen display Note To cancel the keycode that you have already set Press R on the projector for four times in •...

  • Page 63: Memory Menu

    Menu operation n Page a Clear Memory 0 Memory Menu Select the item where the settings you want to You can store the settings of the projector's erase are stored. In this case, the memory lens shift (ZOOM, FOCUS) and others (such as name you have changed returns to the default INPUT, PICTURE MODE, RESIZE, Wall Color, setting.

  • Page 64: Returning To The Default Settings

    Helpful Functions Set during Installation (“PRJ” menu) (Continued) Menu operation n Page Returning to the Default Settings This function allows you to initialize the set- tings you have made in the projector. Note The following items or menu cannot be initialized.

  • Page 65: Setting Up The Projector Network Environment ("Net." Menu)

    Setting Up the Projector Network Environment (“Net.” Menu) Menu operation n Page a Changing the Password Picture Audio Net. Password Disable Select “Password”, then press Q. DHCP Client TCP/IP • The screen for entering the password Reset Network Setting appears. Restart Network IP Address XXX.XXX.XXX.XXX...

  • Page 66: Dhcp Client Setting

    Setting Up the Projector Network Environment (“Net.” Menu) (Continued) Menu operation n Page 2 DHCP Client Setting Selectable items Description IP Address Factory default setting: Connect the LAN cable before turning the 192.168.150.002 Enter an IP address appropriate projector on. If not, the DHCP Client function for the network.

  • Page 67: Confi Rming The Projector Information

    Menu operation n Page 6 Confi rming the Projector Information You can confi rm the following items. Selectable Description items IP Address The IP address of the projector is displayed. MAC Address The MAC address of the projector is displayed. Projector The projector name is displayed.

  • Page 68: Viewing Stereoscopic 3D Images

    Viewing Stereoscopic 3D Images Precautions on Viewing Stereoscopic 3D Images Before viewing stereoscopic 3D images, please read this section carefully. WARNING ■ Under normal conditions, viewing stereoscopic 3D images is safe for any duration that you would normally view your screen. However, some people may experience discomfort. The following precautions are recommended to minimize the potential for experiencing visual problems or any adverse symptoms.
  • Page 69 WARNING ■ The following people should limit stereoscopic 3D viewing: – Children under 6 years of age (to protect the eye growth process) – People with a history of photosensitivity – People with heart disease – People in poor health –...

  • Page 70: Information On The 3D Projection Function

    – For details on the supported signals, see the Compatibility Chart in this operation manual. ® 2) 3D LCD shutter glasses that support the DLP Link™* system – Contact your nearest Sharp Authorized Projector Dealer for purchasing details. * DLP ® Link™ is a trademark of Texas Instruments. ®...

  • Page 71: Using 3D Viewing Mode

    Press 3D MODE on the remote control to display the 3D MODE Using 3D Viewing Mode menu. Info Use the following procedure to project 3D images. • If “An invalid button has been pressed.” is displayed, a 3D-compatible signal is For operation of the 3D LCD shutter not being input.

  • Page 72: Appendix

    (light signal receiving sensitivity). For details, see the operation manual of your 3D LCD shutter glasses. ■ For more information on the 3D projection function Future information on the 3D projection function will be posted on the following web site. http://www.sharp-world.com/projector/...

  • Page 73: Maintenance

    Maintenance Cleaning the projector Cleaning the lens or lens cover ■ Ensure that you have unplugged the power ■ Use a commercially available blower or lens cord before cleaning the projector. cleaning paper (for glasses and camera ■ The cabinet as well as the operation panel is lenses) for cleaning the lens or lens cover.

  • Page 74: Maintenance Indicators

    Maintenance Indicators ■ The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector indicate problems inside the projector. ■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter Standby mode. After the projector has entered Standby mode, follow the procedures given below.
  • Page 75 Relocate the projector to an area with proper ventilation. (See page 8.) • Cooling fan • Take the projector to your breakdown nearest Sharp Authorized • Internal circuit failure Projector Dealer or Service • Clogged air intake Center (see page 84) for repair.

  • Page 76: Regarding The Lamp

    * If you wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center. * If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector Dealer or Service Center for repair.

  • Page 77: Removing And Installing The Lamp Unit

    Removing and Installing the Lamp Unit Warning! • Do not remove the lamp unit from the Lamp unit Lamp unit Optional Optional projector right after use. The lamp and parts accessory accessory around the lamp will be very hot and may AN-SV10LP AN-SV10LP cause burns or injury.

  • Page 78: Resetting The Lamp Timer

    Regarding the Lamp (Continued) Securing screws Securing screws Remove the lamp unit. • Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

  • Page 79: Compatibility Chart

    Compatibility Chart Computer • Multiple signal support Pixel Clock: 12-165 MHz Horizontal Frequency: 15-110 kHz, Sync signal: Compatible with TTL level Vertical Frequency: 45-85 Hz, • Compatible with sync on green signal Display Horizontal Vertical Analog Digital PC/MAC Mode Resolution frequency [kHz] frequency[Hz] Support...
  • Page 80 Compatibility Chart (Continued) 3D Supported Signals Analog Digital Signal Horizontal Frequency (kHz) Vertical Frequency (Hz) Support Support ✔ ✔ 37.9 800 × 600 SVGA ✔ 77.1 ✔ ✔ 48.4 1024 × 768 ✔ 98.6 ✔ ✔ 49.7 1280 × 800 ✔...

  • Page 81: Attaching The Ceiling-Mount Rotating Module (An-Sv100T)

    Attaching the Ceiling-mount Rotating Module (AN-SV100T) Press STANDBY/ON on the projector or STANDBY on the remote control to put the projector into Standby mode. Then disconnect the power cord. Turn over the projector and place it upside down on a fl at surface. Remove the connector cover.

  • Page 82: Attaching The Terminal Cover To The Module

    Attaching the Terminal Cover to the Module Fix the hooks of the terminal covers ( ) and fi t the small protrusions on the covers into the slots on the ceiling-mount rotating module (AN-SV100T) ( ). Fasten the terminal covers at the Screws Screws two points with the supplied...

  • Page 83: Attaching The Ceiling Mount To The Ceiling

    Pin hole Pin hole bolt. Sleeve Sleeve Caution • Ask your dealer or service shop to install the ceiling mount. Sharp will assume no responsibility whatsoever if inadequate installation causes your projector or attached devices to fall out of place.
  • Page 84 Use the washers supplied with the ceiling mount. Caution • Ask your dealer or service shop to install the ceiling mount. Sharp will assume no responsibility whatsoever if inadequate installation causes your projector or attached devices to fall out of place.

  • Page 85: Troubleshooting

    Troubleshooting Problem Check Page • Projector power cord is not plugged into the wall outlet. • Power to the external connected devices is off. – • The selected Input mode is wrong. • The AV Mute function is working. • Cables are incorrectly connected to the projector.
  • Page 86 Troubleshooting (Continued) Problem Check Page • See “Maintenance Indicators”. Maintenance indicator on the projector illuminates or blinks in red. • Change the input signal type setting. Picture is green on COMPUTER (YPbPr) Picture is pink (no green) on COMPUTER (RGB) •...
  • Page 87 Problem Check Page • Images may appear to fl icker when fl uorescent light or ambient light – 3D images fl icker when enters your vision. watching in a room. – Turn off the lights. – Block any ambient light. •...

  • Page 88: For Sharp Assistance

    If you encounter any problems during setup or operation of this projector, fi rst refer to the “Troubleshooting” section on pages to 83. If this operation manual does not answer your question, please contact the SHARP Service departments listed below. U.S.A.

  • Page 89: Specifi Cations

    Weight (approx.) 16.5 lbs. (7.5 kg) As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production units. There may be some deviations from these values in individual units.

  • Page 90: Dimensions

    Dimensions Units: inches (mm) (405) (202.5) ø68 (54) (41.25) (75) (95) (190) (304)

  • Page 91: Index

    ENTER button ···································································46 SCR ··················································································54 Exhaust vent ··························································12,13, 69 Screen Size and Projection Distance ·························19, 20 Select Color ······································································50 Fan Mode ·········································································57 Sharp ················································································48 FREEZE button ·································································41 SIG····················································································52 FOCUS buttons ································································30 Signal Info ·········································································53 FULL ···········································································36, 38 Signal Type ·······································································52 Geometric adjustment ······················································32...
