Supports 108/54/48/36/24/18/12/9/6Mbps or 11/5.5/3/2/1Mbps data transfer rates.
Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.
Shares data and Internet access for users, supporting PPPoE, Dynamic IP, Static IP, L2TP,
PPTP, BigPond Cable Internet access.
Supports Virtual Server, Special Application and DMZ host.
Supports UPnP, Dynamic DNS, Static Routing, VPN Pass-through.
Detachable reverse SMA connector Antenna.
Connecting Internet on demand and disconnecting from the Internet when idle for PPPoE.
Built-in NAT and DHCP server supporting static IP address distributing.
Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address
filtering.
Supports connecting/disconnecting from the Internet on a specified time of day.
Supports access control, parents and network administrators can establish restricted access
policies based on time of day for children or staff.
Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control
List).
Supports Flow Statistics.
Supports ICMP-FLOOD, UDP-FLOOD, and TCP-SYN-FLOOD filter.
Ignores Ping packets from WAN or LAN ports.
Supports firmware upgrade.

2.3 Panel Layout

2.3.1 The Front Panel

The front panel of the MR4-WR642G consists of several LED indicators, which is designed to
indicate connections. View from left to right. The next table describes the LEDs on the front panel
of the router.
MR4-WR642G 108M Wireless Router User Guide

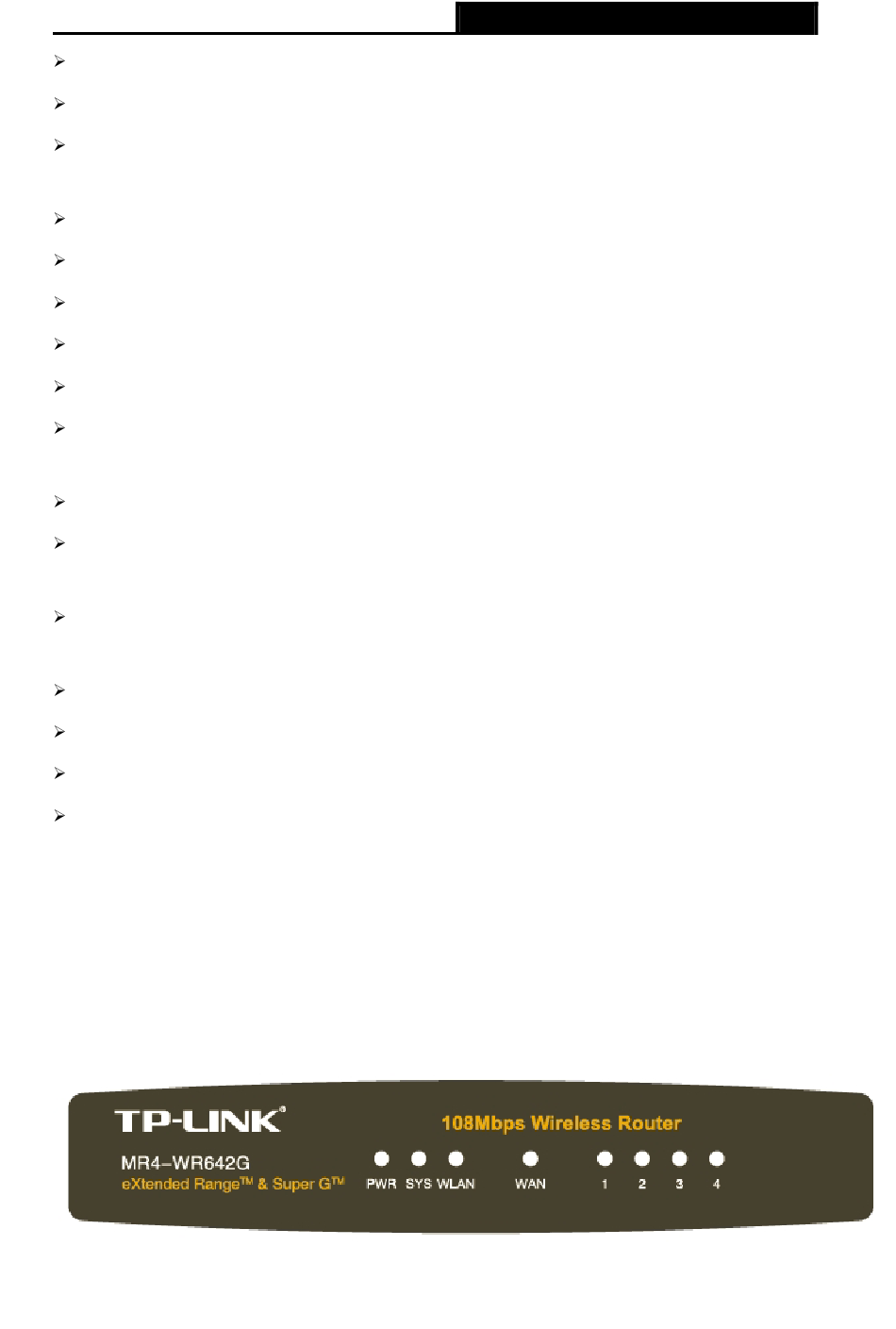

Figure 2-1 Front Panel sketch
