2

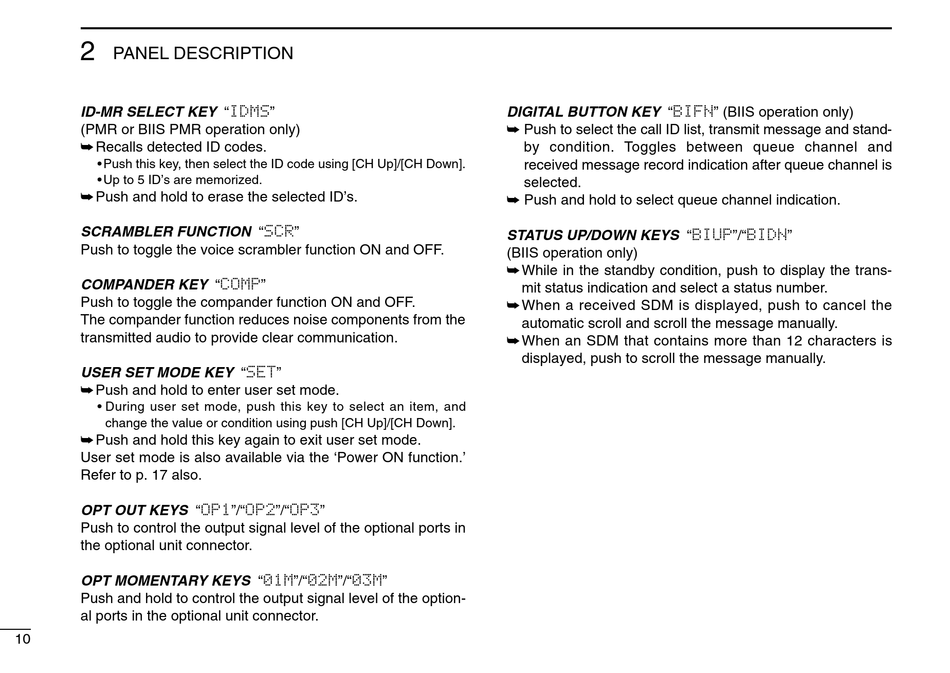

PANEL DESCRIPTION
ID-MR SELECT KEY "IDMS"
(PMR or BIIS PMR operation only)
➥ Recalls detected ID codes.
• Push this key, then select the ID code using [CH Up]/[CH Down].
• Up to 5 ID's are memorized.
➥ Push and hold to erase the selected ID's.
SCRAMBLER FUNCTION "SCR"
Push to toggle the voice scrambler function ON and OFF.
COMPANDER KEY "COMP"
Push to toggle the compander function ON and OFF.
The compander function reduces noise components from the
transmitted audio to provide clear communication.
USER SET MODE KEY "SET"
➥ Push and hold to enter user set mode.
• During user set mode, push this key to select an item, and
change the value or condition using push [CH Up]/[CH Down].
➥ Push and hold this key again to exit user set mode.
User set mode is also available via the 'Power ON function.'
Refer to p. 17 also.
OPT OUT KEYS "OP1"/"OP2"/"OP3"
Push to control the output signal level of the optional ports in
the optional unit connector.
OPT MOMENTARY KEYS "01M"/"02M"/"03M"
Push and hold to control the output signal level of the option-
al ports in the optional unit connector.
10
DIGITAL BUTTON KEY "BIFN" (BIIS operation only)
➥ Push to select the call ID list, transmit message and stand-
by condition. Toggles between queue channel and
received message record indication after queue channel is
selected.
➥ Push and hold to select queue channel indication.
STATUS UP/DOWN KEYS "BIUP"/"BIDN"
(BIIS operation only)
➥ While in the standby condition, push to display the trans-
mit status indication and select a status number.
➥ When a received SDM is displayed, push to cancel the
automatic scroll and scroll the message manually.
➥ When an SDM that contains more than 12 characters is
displayed, push to scroll the message manually.
