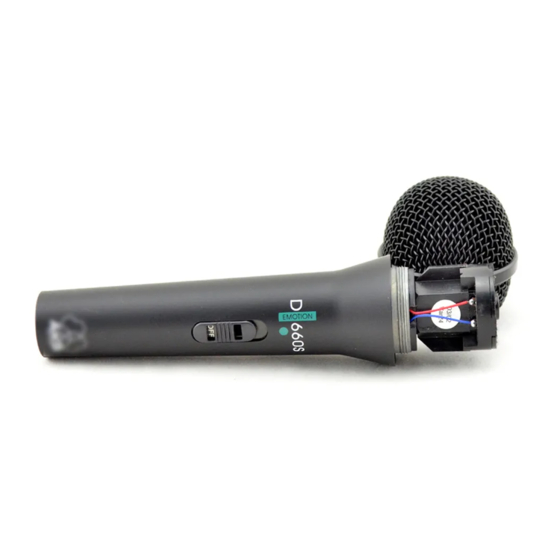

D 660 S
Bedienungshinweise . . . . . . . . . . . . . . . . . . S. 2
Bitte vor Inbetriebnahme des Gerätes lesen!
User Instructions . . . . . . . . . . . . . . . . . . . . . p. 4
Please read the manual before using the equipment!
Mode d'emploi . . . . . . . . . . . . . . . . . . . . . . . p. 6
Veuillez lire cette notice avant d'utiliser le système!
Istruzioni per l'uso . . . . . . . . . . . . . . . . . . . . p. 8
Prima di utilizzare l'apparecchio, leggere il manuale!
Modo de empleo . . . . . . . . . . . . . . . . . . . . p. 10
Antes de utilizar el equipo, lea por favor el manual!
Instruções de uso . . . . . . . . . . . . . . . . . . . p. 12
Favor leia este manual antes de usar o equipamento!
All manuals and user guides at all-guides.com
AKG.EMOTION
EMOTION
MICROPHONE
SERIES
Advertisement
Table of Contents
Related Manuals for AKG EMOTION Series
Summary of Contents for AKG EMOTION Series
- Page 1 All manuals and user guides at all-guides.com EMOTION AKG.EMOTION MICROPHONE SERIES D 660 S Bedienungshinweise ....S. 2 Bitte vor Inbetriebnahme des Gerätes lesen! User Instructions .
- Page 2 All manuals and user guides at all-guides.com 1 Beschreibung 1.1 Besondere • Robuste Ganzmetallkonstruktion mit Nirosta- Merkmale Gitterkappe • Hypernierenförmige Richtcharakteristik für hohe Rückkopplungssicherheit • Integrierter Wind- und Popschutz Siehe Fig. 1 (S. 14). • Ein/Ausschalter • Mattschwarze Lackierung unterbindet im Live- betrieb störende Lichtreflexionen 1.2 Kurz- Das dynamische Mikrofon D 660 S wurde für die...
-
Page 3: Technische Daten
All manuals and user guides at all-guides.com 3 Technische Daten Arbeitsweise: dynamisches Druckgradientenmikrofon Richtcharakteristik: hypernierenförmig Übertragungsbereich: 70 bis 20.000 Hz Empfindlichkeit bei 1000 Hz: 2,0 mV/Pa (- 54 dBV bez. auf 1V/Pa) Elektrische Impedanz bei 1000 Hz: ≤500 Ω ≥1200 Ω Empfohlene Lastimpedanz: Grenzschalldruck für 1% / 3% Klirrfaktor:... - Page 4 All manuals and user guides at all-guides.com 1 Description 1.1 Features • Rugged all metal body with stainless steel wire-mesh cap. • Hypercardioid polar pattern for high gain be- fore feedback. • Integrated, easy to clean wind and pop screen. See fig.
-
Page 5: Specifications
All manuals and user guides at all-guides.com 3 Specifications Type: dynamic pressure gradient microphone Polar pattern: hypercardioid Frequency range: 70 to 20,000 Hz Sensitivity at 1000 Hz: 2.0 mV/Pa (–54 dBV re 1 V/Pa) ≤500 ohms Electrical impedance at 1000 Hz: ≥1200 ohms Recommended load impedance: Max. - Page 6 All manuals and user guides at all-guides.com 1 Description 1.1 Principales • Boîtier robuste entièrement en métal avec ca- caractéristiques puchon en maille d’acier inoxydable • Directivité hypercardioïde pour l’élimination du larsen • Ecran anti-vent et anti-pops intégré, facile- ment nettoyable Voir fig.
-
Page 7: Caractéristiques Techniques
All manuals and user guides at all-guides.com 3 Caractéristiques techniques Principe de fonctionnement: microphone dynamique à gradient de pression Directivité: hypercardioïde Réponse en fréquence: 70–20.000 Hz Sensibilité à 1000 Hz: 2,0 mV/Pa (–54 dBV) re 1 V/Pa ≤500 ohms Impédance à 1000 Hz: ≥1200 ohms Impédance de charge nominale: Niveau maximum de pression acoustique... - Page 8 All manuals and user guides at all-guides.com 1 Descrizione • Struttura estremamente robusta, interamente Caratteristiche metallica con griglia esterna in maglia d’ac- particolari ciaio inossidabile • Grande resistenza al feedback grazie alla diret- tività ipercardioide • Filtro antipop/antisoffio integrato, facilmente lavabile Vedi fig.
-
Page 9: Dati Tecnici
All manuals and user guides at all-guides.com 3 Dati tecnici Modo di funzionamento: trasduttore a gradiente di pressione dinamico Direttività: ipercardioide Risposta in frequenza: 70–20.000 Hz Sensibilità a 1000 Hz: 2,0 mV/Pa (–54 dBV) rif. a 1 V/Pa ≤500 Ω Impedenza elettrica a 1000 Hz: Impedenza di carico raccomandata:≥1200 Ω... - Page 10 All manuals and user guides at all-guides.com 1 Descripción • Cuerpo robusto enteramente metálico con re- Características jilla de acero inoxidable especiales • Seguridad contra realimentación acústica gra- cias a la característica direccional hipercar- dioide • Pantalla antiviento y pop integrada, facilmente lavable Véase fig.
-
Page 11: Datos Técnicos
All manuals and user guides at all-guides.com 6 Datos técnicos Funcionamiento acústico: transductor dinámico de gradiente de presión Característica direccional: hipercardioide Campo de frecuencia: 70–20.000 Hz Sensibilidad a 1000 Hz: 2,0 mV/Pa (–54 dBV) re 1 V/Pa ≤500 Ω Impedancia eléctrica a 1000 Hz: Impedancia de carga recomendada: ≥1200 Ω... - Page 12 All manuals and user guides at all-guides.com 1 Descrição • Corpo robusto construído em metal, grade de Características aço inoxidável. • Padrão polar cardióide para rejeição de reali- mentação. • Tela antivento e pop integrada, fácil de limpar. Veja fig. 1 (p. 14). •...
-
Page 13: Dados Técnicos
All manuals and user guides at all-guides.com 6 Dados técnicos Tipo: microfone dinâmico de gradiente de pressão Característica direcional: hipercardióide Região de freqüência: 70 a 20.000 Hz Sensibilidade a 1000 Hz: 2,0 mV/Pa (-54 dBV em relação a 1V/Pa) ≤500 Ω Impedância elétrica a 1000 Hz: Impedância de carga recomendada: ≥1200 Ω... - Page 14 All manuals and user guides at all-guides.com Fig. 1 ... Fig. 3 Fig. 1 Fig. 2 Fig. 3...
- Page 15 All manuals and user guides at all-guides.com Fig. 4, Fig. 5 Fig. 4 Fig. 5...
- Page 16 All manuals and user guides at all-guides.com EMOTION AKG.EMOTION MICROPHONE SERIES The Moffatts B*Witched D 660 S D 880 D 880 S D 440 D 550 D 770...
