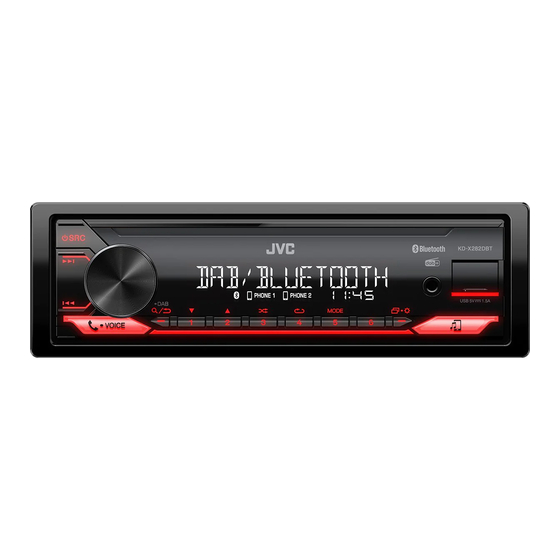

KD-X282DBT / KD-X182DB
DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL
RECEPTOR DE MEDIOS DIGITALES
MANUAL DE INSTRUCCIONES
DIGITALE MEDIAONTVANGER
GEBRUIKSAANWIJZING
RECEPTOR MÉDIA DIGITAL
MANUAL DE INSTRUÇÕES

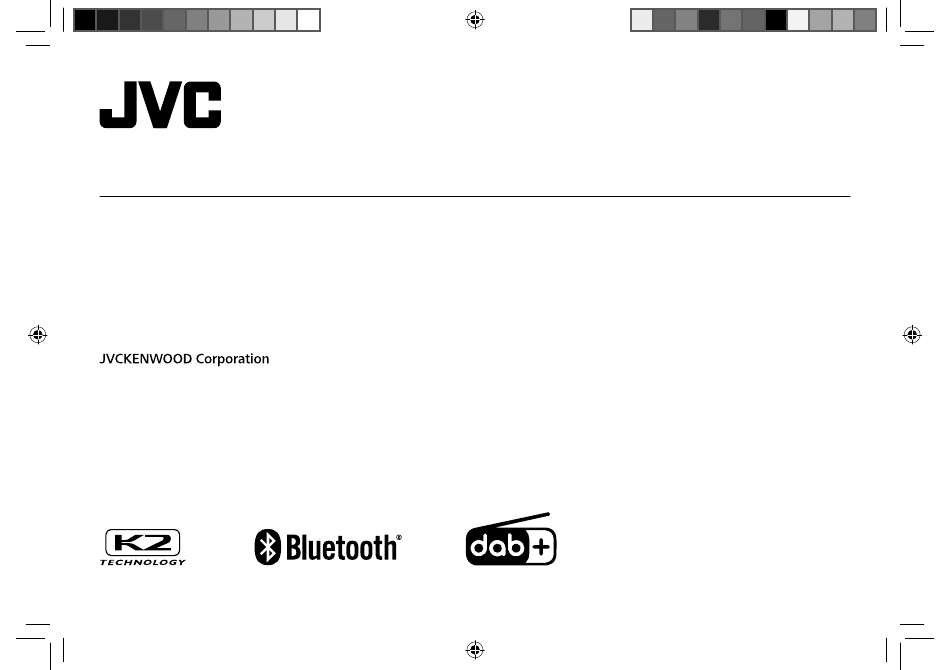

KD-X282DBT_E_B5A-3845-00_Cover_1st Draft.indd 1
KD-X282DBT_E_B5A-3845-00_Cover_1st Draft.indd 1
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
ENGLISH
ESPAÑOL
NEDERLANDS
PORTUGUÊS
B5A-3845-00 [E]
6/9/2021 11:47:16 PM
6/9/2021 11:47:16 PM

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-X282DBT

Summary of Contents for JVC KD-X282DBT

  • Page 1 ENGLISH ESPAÑOL NEDERLANDS PORTUGUÊS KD-X282DBT / KD-X182DB DIGITAL MEDIA RECEIVER INSTRUCTION MANUAL RECEPTOR DE MEDIOS DIGITALES MANUAL DE INSTRUCCIONES DIGITALE MEDIAONTVANGER GEBRUIKSAANWIJZING RECEPTOR MÉDIA DIGITAL MANUAL DE INSTRUÇÕES B5A-3845-00 [E] KD-X282DBT_E_B5A-3845-00_Cover_1st Draft.indd 1 KD-X282DBT_E_B5A-3845-00_Cover_1st Draft.indd 1 6/9/2021 11:47:16 PM 6/9/2021 11:47:16 PM...
  • Page 2 Lever deze producten in bij de aangewezen inzamelingspunten, waar ze gratis worden geaccepteerd en op de juiste manier worden verwerkt, teruggewonnen en hergebruikt. Hereby, JVCKENWOOD declares that the radio equipment “KD-X282DBT/KD-X182DB” is in compliance with Voor inleveradressen zie www.nvmp.nl, www.ictmilieu.nl, www.stibat.nl. Wanneer u dit product op de the relevant statutory requirements.
  • Page 3 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, JAPAN Par la présente, JVCKENWOOD déclare que Português EU Representative: l’équipement radio « KD-X282DBT/KD-X182DB » Deste modo, a JVCKENWOOD declara que o JVCKENWOOD Europe B.V. est conforme à la directive 2014/53/UE. equipamento de rádio “KD-X282DBT/KD-X182DB”...
  • Page 4 „KD-X282DBT/KD-X182DB“ atitinka 2014/53/EB декларира, че радиооборудването на enlighet med direktiv 2014/53/EU. med Direktiv 2014/53/EU. direktyvos reikalavimus. “KD-X282DBT/KD-X182DB” е в съответствие с Den fullständiga texten av EU-försäkran EU-overensstemmelseserklæringens fulde ordlyd Visą EB direktyvos atitikties deklaracijos tekstą Директива 2014/53/ЕС. om överensstämmelse finns på följande er tilgængelig på...
  • Page 5 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be...
  • Page 6 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed -jansson Software, any related documents and copies thereof within two (2) weeks from such date of termination. Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
  • Page 7 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
  • Page 8 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. T-Kernel 2.0 Author: Chris G. Demetriou This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, provided that both the copyright notice and this permission notice appear in all copies of the software, BSD-3-Clause derivative works or modified versions, and any portions thereof, and that both notices appear in supporting...
  • Page 9 viii KD-X282DBT_E_B5A-3845-00_Cover_1st Draft.indd viii KD-X282DBT_E_B5A-3845-00_Cover_1st Draft.indd viii 6/9/2021 11:47:19 PM 6/9/2021 11:47:19 PM Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

  • Page 10: Table Of Contents

    3 Set the basic settings Digital Radio ..................... 6 Analog Radio .................... 9 USB ......................10 AUX......................12 JVC Remote Application ............... 12 Bluetooth® ....................13 Bluetooth — Connection Bluetooth — Mobile phone Bluetooth — Audio Audio Settings ..................20 Display Settings ..................

  • Page 11: Before Use

    • Please keep the manual in a safe and accessible place for future reference. • Operations are explained mainly using buttons on the faceplate of KD-X282DBT. WARNING • English indications are used for the purpose of explanation. You can Do not operate any function that takes your attention away from safe select the display language from the menu.

  • Page 12: Basics

    Basics Faceplate Attach Volume knob Display window* KD-X282DBT: Detach Detach button KD-X182DB: How to reset Reset the unit within 5 seconds after detaching the faceplate. * Only for illustration purpose. On the faceplate Turn on the power Press B SRC. • Press and hold to turn off the power.

  • Page 13: Getting Started

    [ON]: Enables AM in source selection. ; [OFF]: Disables. (Page 9) Press and hold [BT AUDIO SRC]*1 (For KD-X282DBT) Turn the volume knob to select [CLOCK], then press the knob. [ON]: Enables BT AUDIO in source selection. ; [OFF]: Disables. To adjust the clock (Page 19) Turn the volume knob to select [CLOCK ADJUST], then press the knob.

  • Page 14: Digital Radio

    In contrast to FM broadcast, where each program is transmitted on its own For details on how to update the firmware, visit frequency, DAB combines several programs (called “services”) to form one <https://www.jvc.net/cs/car/>. “ensemble”. [FACTORY RESET] [YES]: Resets the settings to default (except the stored station). ;...
  • Page 15 Digital Radio Search for an ensemble Select a service Press B SRC repeatedly to select DAB. Press  DAB to enter DAB service select mode. Press S / T to search for an ensemble automatically. Turn the volume knob to select [SRVC] (service list), then press the (or) knob.
  • Page 16 Digital Radio Default: [XX] [LIST UPDATE] [UPDATE AUTO]: Automatically update the DAB Service List when the power is turned on. ; [UPDATE MANUAL]: Updates the DAB Service List by pressing [TUNER SETTING] and holding DAB. [AF SET] [ON]: [PTY WATCH] The unit automatically switch from any source to Digital Radio ensembles While listening to DAB...

  • Page 17: Analog Radio

    Analog Radio Select a stored station Press one of the number buttons (1 to 6). (or) Press Turn the volume knob to select a preset number, then press the knob. Other settings The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast.

  • Page 18: Usb

    Analog Radio [MONO SET] [ON]: Improves the FM reception, but the stereo effect will be lost. ; Connect a USB device [OFF]: Cancels. USB input terminal USB 2.0 cable* [NEWS SET]* [ON]: The unit will temporarily switch to News Programme if available. ; (commercially available) [OFF]: Cancels.
  • Page 19 Quick search On the faceplate If you have many files, you can search through them quickly. Press 4 B repeatedly. Repeat play Press [TRACK REPEAT]/[FOLDER REPEAT]/[ALL REPEAT]: Turn the volume knob to select a folder/list, then press the knob. MP3/WMA/WAV/FLAC file Turn the volume knob quickly to browse through the list quickly.

  • Page 20: Aux

    JVC Remote Application (for KD-X282DBT) You can listen to music from a portable audio player via the auxiliary input You can control the JVC car receiver from Android device (via Bluetooth) jack. using JVC Remote application. • For more information, visit <https://www.jvc.net/cs/car/>.

  • Page 21: Bluetooth

    Bluetooth® JVC Remote Application (for KD-X282DBT) (for KD-X282DBT) Default: [XX] • Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not [REMOTE APP] work with this unit. [ANDROID Selects the Android device to use from the list.
  • Page 22 • Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see Search and select the name of your receiver (“KD-X282DBT”) on the [DEVICE DELETE] on page 18.

  • Page 23: Bluetooth - Mobile Phone

    Bluetooth® (for KD-X282DBT) Bluetooth — Mobile phone The following operations may differ or be unavailable depending on the connected phone. On the faceplate First incoming call... Answer a call Press or the volume knob. Reject a call Press and hold or the volume knob.
  • Page 24 Bluetooth® (for KD-X282DBT) Default: [XX] Improve the voice quality [SETTINGS] While talking on the phone... [AUTO ANSWER] [01 SEC] to [30 SEC]: Answers an incoming call automatically in the selected Press and hold time (in seconds). ; [OFF]: Cancels. Turn the volume knob to select an item (see the following table), then press the knob.
  • Page 25 Bluetooth® (for KD-X282DBT) Make a call using voice recognition [RECENT CALL] (Applicable only if the phone supports PBAP.) 1 Press the volume knob to select a name or a phone number. Press and hold to activate the voice recognition of the •...
  • Page 26 “CHECK MODE” appears. “SEARCH NOW USING To return to the previous setting item, press PHONE” “PIN IS 0000” scrolls on the display. Search and select the name of your receiver (“KD-X282DBT”) on the Default: [XX] Bluetooth device within 3 minutes. [BT MODE] Perform (A), (B) or (C) depending on what appears on the display.

  • Page 27: Bluetooth - Audio

    Bluetooth® (for KD-X282DBT) After pairing is done successfully, “PAIRING OK” “Device Name” appears Bluetooth — Audio and Bluetooth compatibility check starts. • Operations and display indications may differ according to their availability If “CONNECT NOW USING PHONE” appears, operate the Bluetooth device to on the connected device.

  • Page 28: Audio Settings

    Audio Settings Bluetooth® (for KD-X282DBT) On the faceplate Press 4 B repeatedly. Repeat play [TRACK REPEAT], [ALL REPEAT], [GROUP REPEAT], [REPEAT OFF] Press 3 A repeatedly. Random play [GROUP RANDOM], [ALL RANDOM], [RANDOM OFF] Select a preset equalizer directly (for KD-X182DB) Select a file from a folder/list Refer to “Select a file to play”...
  • Page 29 Audio Settings Other settings [EASY EQ] Adjusts your own sound settings. • The settings are stored to [USER] in [PRESET EQ]. Press and hold • The settings made may affect the current settings of [PRO EQ]. Turn the volume knob to select an item (see the following table), then [SUB.W SP]*1*2: [00] to [+06] (Default: [+03] press the knob.
  • Page 30 Audio Settings [SUB.W LEVEL]*1 [SPK-OUT]*2 (Not applicable when 3-way crossover is selected.) [DTA SETTINGS] For settings, see “Digital Time Alignment settings” on page 26. [SUB.W 00] to [SUB.W +06] ([SUB.W +03]): Adjusts [CAR SETTINGS] the output level of the subwoofer connected via speaker [X ‘...
  • Page 31 Audio Settings Connection via speaker leads [SOUND EFFECT] You can also connect the speakers without using an external amplifier [SPACE ENHANCE] (Not applicable for FM/AM source and DAB source.) but still being able to enjoy the subwoofer output with these settings. [SMALL]/[MEDIUM]/[LARGE]: Virtually enhances the sound space.
  • Page 32 Audio Settings 2-way crossover setting items Crossover settings Below are the available setting items for 2-way crossover and 3-way [SPEAKER SIZE] crossover. [FRONT] [SIZE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/ CAUTION [17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/ Select a crossover type according to how the speakers are connected. [7×10] (Page 33) [TWEETER] [SMALL]/[MIDDLE]/[LARGE]/[NONE] (not If you select a wrong type:...
  • Page 33 Audio Settings [SUBWOOFER [SW LPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [MID RANGE] [HPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ LPF]*2*3 [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [220HZ]/[250HZ]/[THROUGH] [THROUGH] [SW LPF SLOPE] [–06DB]/[–12DB]/[–18DB]/[–24DB] [HPF SLOPE] [–06DB]/[–12DB] [SW LPF PHASE] [REVERSE] (180°)/ [NORMAL] (0°) [LPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/ [8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH] [SW LPF GAIN] [–08DB] to [00DB] [LPF SLOPE] [–06DB]/[–12DB] [PHASE] [REVERSE] (180°)/[NORMAL] (0°)
  • Page 34 Audio Settings Digital Time Alignment settings Determining the delay time automatically If you specify the distance from the currently set Digital Time Alignment sets the delay time of the speaker output to create a listening position to every speaker, the delay time more suitable environment for your vehicle.

  • Page 35: Display Settings

    Display Settings Zone identification for brightness settings [BRIGHTNESS] Sets the brightness for day and night separately. 1 [DAY]/[NIGHT]: Select day or night. 2 Select a zone. (See the illustration on the left column.) 3 [LEVEL 00] to [LEVEL 31]: Set the brightness level. [TEXT SCROLL]*2 [SCROLL ONCE]: Scrolls the display information once.

  • Page 36: References

    Service Label with Music Synchronization Effect* For: – Latest firmware updates and latest compatible item list Ensemble Label Dynamic Label Title/Artist Next Program – JVC original application (EPG) Signal Level Date back to the beginning – Any other latest information Visit <https://www.jvc.net/cs/car/>.

  • Page 37: Troubleshooting

    Troubleshooting References Source name Display information: Main Symptom Remedy BT AUDIO (For KD-X282DBT) Sound cannot be heard. • Adjust the volume to the optimum level. Song title/Artist Song title/Artist with Music Synchronization • Check the cords and connections. Effect* Album title/Artist...
  • Page 38 Troubleshooting Symptom Remedy Symptom Remedy Playback order is not as USB device, the folders are played in the order of creation No Bluetooth device is • Search from the Bluetooth device again. intended. (date and time). The files within each folder are played in detected.

  • Page 39: Installation/Connection

    Installation/Connection Troubleshooting Symptom Remedy This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. “PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, WARNING then connect the device again.
  • Page 40 Installation/Connection Part list for installation Installing the unit (in-dash mounting) (A) Faceplate (×1) (B) Trim plate (×1) Do the required wiring. (Page 33) (C) Mounting sleeve (×1) (D) Wiring harness (×1) Hook on the top side Orientate the trim Dashboard of plate as illustrated your car before fitting.
  • Page 41 Rear/subwoofer output/ When connecting to an external 3-way crossover: Woofer output amplifier, connect its ground wire to the car’s chassis to avoid damaging KD-X282DBT: the unit. Microphone input jack (page 13) DAB antenna jack (SMB connector) Fuse (10 A) Antenna terminal...

  • Page 42: Specifications

    Specifications Frequency Range Band III 174.928 MHz — 239.200 MHz USB Standard USB 1.1, USB 2.0 (Full speed) Compatible Devices Mass storage class Sensitivity –100 dBm File System FAT12/16/32 Signal-to-Noise Ratio 80 dB Maximum Supply Current DC 5 V 1.5 A Antenna Connector Type Digital Filter (D/A) Converter 24 Bit...
  • Page 43 Specifications KD-X282DBT: Band 13 Band Version Bluetooth V4.2 Frequency 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz Frequency Range 2.402 GHz — 2.480 GHz Level -09 — +09 (-9 dB — +9 dB) RF Output Power (E.I.R.P.) +4 dBm (MAX), Power Class 2 1.35/ 1.5/ 2.0...
  • Page 44 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. •...
