Connection

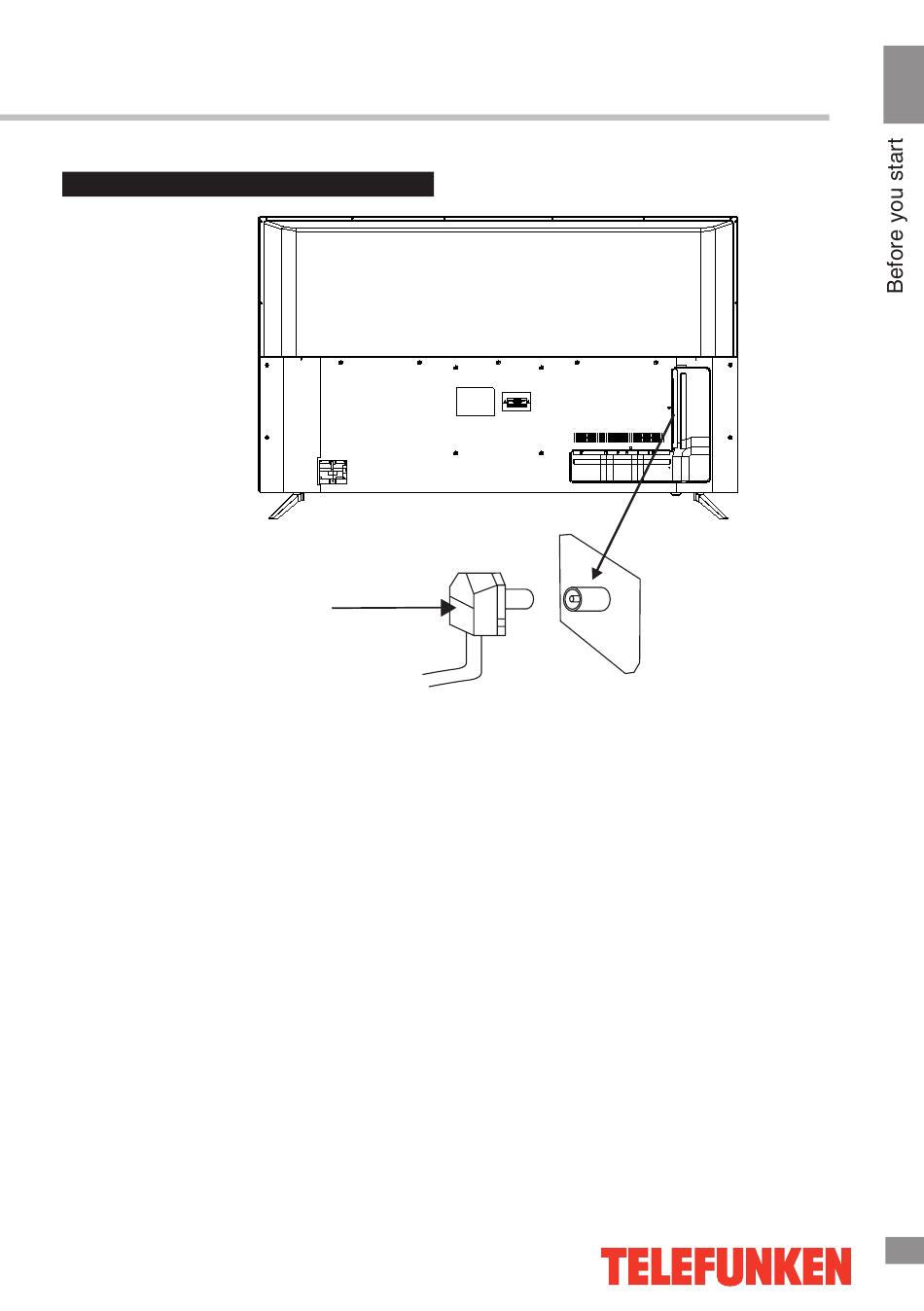

Antenna cable connector

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω
impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

• Connect the audio sources (Including
DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks 'L' and 'R'.
• Connect the video source to the
Composite video jack using an RCA cable
(not included).
• Plug the power cable in the electric outlet,
making sure the current voltage is supported.
• If the video source has a HDMI output jack,
you can connect the signal to the TV using
an HDMI cable (not included).
• Coaxial output is intended for transmitting
multi-channel sound to an external decoder
(e.g. in 5.1-CH format). A coaxial cable should
be used for connection (not included).
75 Ohm co-axis cable
Before you start
TVRF antenna jack
• LNB input is used for connecting a
satellite antenna converter cable (not
included).
• PCMCIA slot is used for CI modules that
are obtained from your digital TV provider.
• Connect your headphones or earphones
(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.
• LAN port allows a TV to connect to
the Internet using an Ethernet network cable
(not included).
