Getting Acquainted; Front Panel - Kenwood TK-7182 Instruction Manual

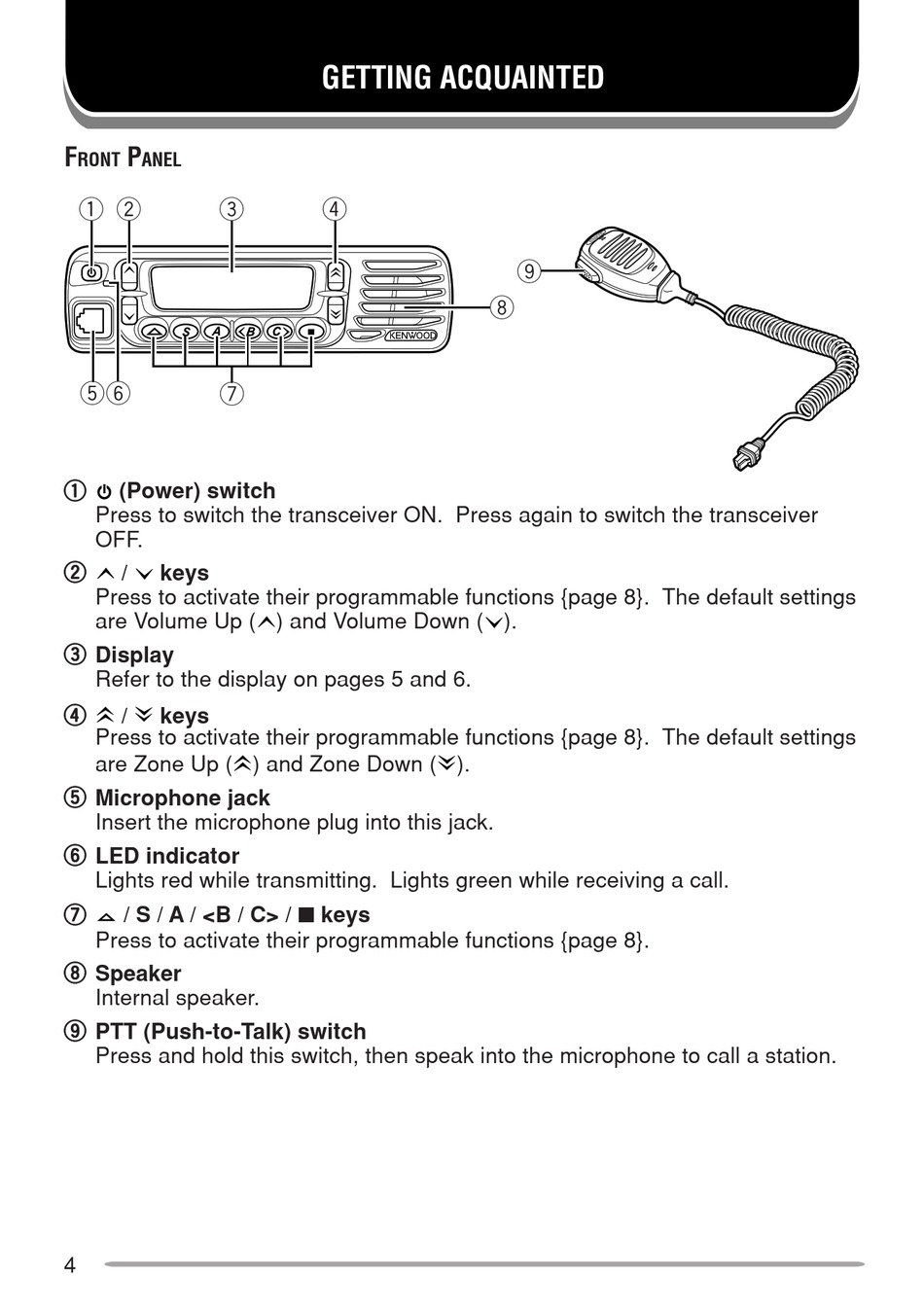

F P
RONT ANEL
q w e
ty
u
q q q q q
(Power) switch
Press to switch the transceiver ON. Press again to switch the transceiver
OFF.
w w w w w
/ keys
Press to activate their programmable functions {page 8}. The default settings
are Volume Up ( ) and Volume Down ( ).
e e e e e Display
Refer to the display on pages 5 and 6.
r r r r r
/ keys
Press to activate their programmable functions {page 8}. The default settings
are Zone Up ( ) and Zone Down ( ).
t t t t t Microphone jack
Insert the microphone plug into this jack.
y y y y y LED indicator
Lights red while transmitting. Lights green while receiving a call.
/ S / A / <B / C> / ■ keys
u u u u u
Press to activate their programmable functions {page 8}.
i i i i i Speaker
Internal speaker.
o o o o o PTT (Push-to-Talk) switch
Press and hold this switch, then speak into the microphone to call a station.
4

GETTING ACQUAINTED

r
i
o
