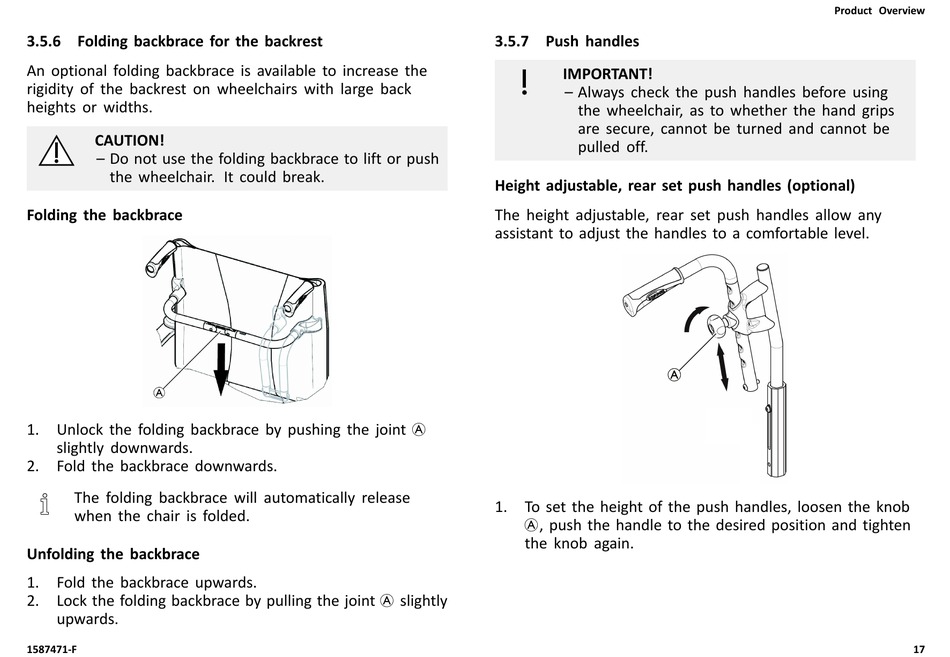

3.5.6 Folding backbrace for the backrest

An optional folding backbrace is available to increase the
rigidity of the backrest on wheelchairs with large back
heights or widths.
CAUTION!
– Do not use the folding backbrace to lift or push
the wheelchair. It could break.
Folding the backbrace
1. Unlock the folding backbrace by pushing the joint A
slightly downwards.
2. Fold the backbrace downwards.
The folding backbrace will automatically release
when the chair is folded.
Unfolding the backbrace
1. Fold the backbrace upwards.
2. Lock the folding backbrace by pulling the joint A slightly
upwards.
1587471-F

3.5.7 Push handles

IMPORTANT!
– Always check the push handles before using
the wheelchair, as to whether the hand grips
are secure, cannot be turned and cannot be
pulled off.
Height adjustable, rear set push handles (optional)
The height adjustable, rear set push handles allow any
assistant to adjust the handles to a comfortable level.
A
1. To set the height of the push handles, loosen the knob
A, push the handle to the desired position and tighten
the knob again.
