INSTALLATION MANUAL

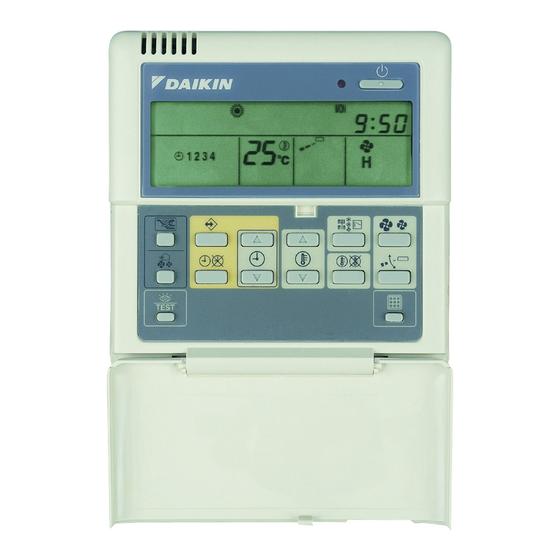

Remote controller
BRC1D527

Advertisement

Table of Contents
loading

Related Manuals for Daikin BRC1D52

Summary of Contents for Daikin BRC1D52

  • Page 1 INSTALLATION MANUAL Remote controller BRC1D527...
  • Page 2 UNIT No. GROUP SETTING P2 P1 P2 P1...

  • Page 3: Installation

    LEAKS, FIRE OR OTHER DAMAGE TO THE EQUIPMENT. BE SURE ONLY TO Insert a minus screwdriver into the slots (1) in the USE ACCESSORIES MADE BY DAIKIN lower part of the remote controller (2 places), and WHICH ARE SPECIFICALLY DESIGNED remove the upper part of the remote controller.

  • Page 4: Wire The Indoor Unit

    3. Wire the indoor unit (Refer to figure 6) NOTE 1. The switch wiring connection are not included. indoor unit 2. Do not directly touch the PC board lower part of the remote controller with your hand. upper part of the remote controller wired from the rear If controlling one indoor unit or one wired from the top...

  • Page 5: Field Settings

    5. Permission level function 6. Field settings If required, you can limit the user action by If optional accessories are mounted on the indoor restricting the number of operable buttons. Refer unit, the indoor unit setting may have to be changed. to the chapter "Field settings".
  • Page 6 Example Notes If during group setting and the time to clean the air filter is set to FILTER CONTAMINATION - HEAVY, SET MODE NO. to “10”, FIRST CODE NO. to “0”, and SECOND CODE NO. to “02”. NOTE 1. Setting is carried out in the group mode, however, if the mode number inside the parentheses is selected, indoor...
  • Page 7 Mode FIRST SECOND CODE NO. Note 2 CODE Note 1 Description of setting Approx. Approx. Ultra long 10.000 5.000 life filter Filter Contamination - Heavy/Light hrs. hrs. (Setting for spacing time of display time Approx. Approx. to clean air filter) Long life 2.500 1.250...
  • Page 8 Mode FIRST SECOND CODE NO. Note 2 CODE Note 1 Description of setting Permission level setting Level 2 Level 3 — — Leave home function Not permitted Permitted — — Thermostat sensor in remote controller (for limit Not use — —...
  • Page 9 NOTES...
  • Page 10 4PWEN16769-1 Zandvoordestraat 300, B-8400 Oostende, Belgium...
