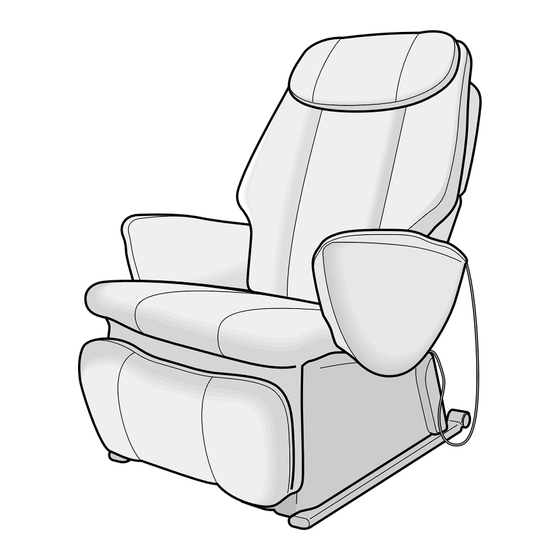

English See page 3-28 Español Ver págs 29-54 Thank you for purchasing the Panasonic Swede-Atsu Massage Lounger EP1061/EP1060. Please read this manual carefully to ensure optimum performance and safety. IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed when using an electrical unit, including the following.
SAFETY PRECAUTIONS WARNING: To avoid the risk of injury, follow these precautions: 1. Pregnant women, people who are ill, in poor physical shape or undergoing medical treatment, and people suffering from back, neck, shoulder or hip pain should consult their doctor before using the unit. If you have a pacemaker, defibrillator, or other personal medical device, consult with the manufacturer of your device before using the unit.
GROUNDING INSTRUCTIONS • The product must be grounded. If it should malfunction, grounding provides the path of least resistance for electric current to reduce the risk of electric shock. • This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
PART NAMES AND FUNCTIONS CONTROLLER ( EP1061 ) Cover Closed CONTROLLER ( EP1060 ) SETTING UP THE MASSAGE LOUNGER WHERE TO USE THE UNIT CAUTION Cover Open • Do not use the unit in areas with high humidity, such as the bathroom, etc. as this can lead to electric shock or other accidents.
HOW TO USE THE MASSAGE LOUNGER — INTRODUCTION • Here you will find an overview of how to use the massage lounger. Please refer to the pages shown for further details. 1. After Carrying Out Safety Checks, Turn the Unit On (See Page 11) z Plug the power plug into the power socket.
ADJUSTING THE SEAT BEFORE SITTING DOWN CAUTION • Slowly sit down after checking the position of the massage heads. Do not exceed the maximum user weight of 264 lbs. (120kg). Before sitting down, you must first check the position of the massage heads with your hands. If you do not check the position of the massage heads then this can lead to injury or the cause of the unit to malfunction.
PROGRAMMED OPERATION • Please check that there are no children or pets in the vicinity of the unit before use. 1. Press button • The ON/OFF lamp will come on. • You can now select either strong or gentle or one of the manual settings that can be accessed by opening the cover of the controller.
MANUAL OPERATION MANUAL OPERATION FOR THE UPPER BODY 1. Press button • The ON/OFF lamp will come on. • You can now select either Strong or Gentle or one of the manual settings that can be accessed by opening the cover of the neck roller position reclining controller.
LEG MASSAGE IN MANUAL OPERATION ( EP1061 ) • The leg massager has two functions. The massager can also massage the soles of the feet. 1. Press button • The programmed operation and leg massage button will flash. 2. Press the Leg Massage button •...
Page 11
DISCONNECT THE POWER 1. Turn Off the Power z Turn the power switch to the “off” position. x Turn the lock switch to the “lock” position. 2. Unplug the Power Cord CAUTION • Always turn the power switch to the “off” position and the lock switch to the “lock” position. Failure to do so may lead to accidents if children play with the unit.
Page 12
• The movements below are shown in simplified form for the sake of illustration. • When the programs have finished the unit will automatically stop. (Although programmed operation lasts for approximately 15 minutes (12–17 minutes), this will vary according to the shoulder position and program selected, whether or not tapping is on or off, and the weight of the person using the unit.) STRONG/NECK &...
DETAILS REGARDING MANUAL OPERATION Shiatsu This feels as though the thumbs of both hands are being used to work on the acupressure points. The initial strong push is followed by a short pause to give the impression of a professional shiatsu masseur.
TROUBLESHOOTING Before requesting service for this unit, check the table below for the possible cause of the problem. Some simple checks or minor adjustment on your part may eliminate the problem and restore proper operation. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, call us at 1-800-338-0552 to locate the servicer near to you.
Page 15
SPECIFICATIONS (EP1061) Power Supply: 120V AC, 60Hz Power Consumption: 160W (Approx. 5W in Standby mode with the controller turned off or when the unit is turned off.) Upper Body Massage Massage Area (Up-Down): Approx. 27.6in. (70cm) Massage Area (Left-Right): Distance between Massage Heads during Operation Approx.
Gracias por haber adquirido el sillón de masaje Swede-Atsu Panasonic modelo EP1060/EP1061. Lea atentamente este manual para obtener un rendimiento y una seguridad óptimos. INSTRUCCIONES DE SEGURIDAD Es muy importante observar siempre las precauciones básicas durante el uso de instrumentos eléctricos, entre las cuales se incluyen las siguientes.
PRECAUCIONES DE SEGURIDAD ADVERTENCIA: Para evitar el riesgo de lesionarse, siga estas precauciones. 1. Las mujeres embarazadas, personas enfermas, en baja forma física o bajo tratamiento médico y las personas que sufran dolores de espalda, cuello, hombros o de cadera deberán consultar a su médico antes de usar la unidad.
Page 18
CONEXIÓN A TOMA DE TIERRA • El producto debe ser conectado a tierra. Si funciona mal, la conexión a tierra proporciona el camino de menos resistencia a la corriente eléctrica, reduciéndose así el riesgo de poder recibir una descarga eléctrica. •...
Page 19
PARTES DE LA UNIDAD Y SUS FUNCIONES MANDO DE CONTROL ( EP1061 ) Tapa cerrada Botón de encendido/apagado Botón de parada • Sirve para detener el masaje Indicador de encendido/apagado de inmediato. Botón de ajuste de neck roller position reclining Botón de reclinado posición de hombros •...
Page 20
USO DEL SILLÓN DE MASAJES — INTRODUCCIÓN • A continuación describimos el modo de uso general del sillón de masaje. Para obtener mayor detalle, consulte las páginas indicadas. 1. Tras realizar las comprobaciones de seguridad, encienda la unidad (ver pág. 37) z Conecte el enchufe de alimentación a la toma de corriente.
AJUSTE DEL ASIENTO ANTES DE SENTARSE PRECAUCIONES • Siéntese despacio tras comprobar la posición de los rodillos de masaje. No sobrepase el peso máximo del usuario de 264lbs.(120 kg.) Antes de sentarse, deberá comprobar primero la posición de las cabezas de masaje con sus manos porque, si no lo hace, las cabezas de masaje podrán causar lesiones o que la unidad funcione mal.
Page 22
MODO PROGRAMADO • Verifique que no se encuentra ningún niño o animal alrededor de la unidad antes de su uso. 1. Pulse el botón • El indicador de encendido/apagado se encenderá. • Entonces puede seleccionar tanto la intensidad (fuerte o suave) del masaje o uno de los modos manuales seleccionables abriendo la neck roller position reclining...
MODO MANUAL MODO MANUAL EN LA PARTE SUPERIOR DEL CUERPO • Verifique que no se encuentra ningún niño o animal alrededor de la unidad antes de su uso. 1. Pulse el botón • El indicador de encendido/apagado se encenderá. • Entonces se puede seleccionar tanto la intensidad (fuerte o suave) del masaje como uno de los ajustes manuales neck roller position reclining...
Page 24
MASAJE DE PIERNAS CON EL MODO MANUAL ( EP1061 ) • El dispositivo de masaje de las piernas tiene dos funciones. Cuando está subido funciona para dar masajes en las pantorrillas, y cuando está bajado para dar masajes en las plantas de los pies. 1.
Page 25
DESCONECTAR LA UNIDAD 1. Apague la unidad z Apague el interruptor de alimentación (posición Off). x Gire el interruptor de bloqueo a su posición bloqueada (lock). 2. Desenchufe el cable de alimentación PRECAUCIONES • Apague siempre el interruptor de alimentación (posición off) y gire el interruptor de bloqueo a su posición bloqueada (lock).
Page 26
• En las ilustraciones siguientes se muestran los movimientos de forma esquemática. • Cuando los programas llegan a su fin, la unidad se detiene automáticamente. (Aunque la duración del modo programado es de 15 minutos aprox. (entre 12 y 17), esto variará de acuerdo con la posición de los hombros, del programa seleccionado, independientemente de si la percusión está...
DETALLES DEL MODO MANUAL Shiatsu Este tipo de masaje emula a los pulgares de ambas manos que trabajan sobre los puntos de acupresión. Se trata de una alternancia de presión y relajación que transmite la misma sensación que un masajista de shiatsu profesional. Este tipo de masajes resulta ideal para aquellas personas con fatiga y dolores musculares que necesitan un masaje localizado.
LOCALIZACIÓN DE AVERÍAS Antes de solicitar el servicio de reparaciones para esta unidad, lea la tabla de abajo y verifique las posibles causas de los problemas. Algunas sencillas verificaciones o pequeños ajustes que usted haga podrán eliminar el problema y restaurar el funcionamiento correcto. Si tiene alguna duda acerca de los puntos de verificación, o si los remedios indicados en la tabla no solucionan el problema, llámenos al 1-800-338-0552 para localizar el centro de servicio más próximo a usted.
Page 29
DATOS TÉCNICOS (EP1061) Alimentación: 120V AC, 60Hz Consumo de energía: 160W (Aprox. 5W en modo de espera con el mando de control apagado o cuando la unidad está apagada.) Masaje de la parte superior del cuerpo Área de masaje (Arriba-Abajo): 27.6in.
