INSTALLER / CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, AN ELECTRICAL SHOCK
OR FIRE MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Service must be performed by a
qualified service agency.
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.
C
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
US

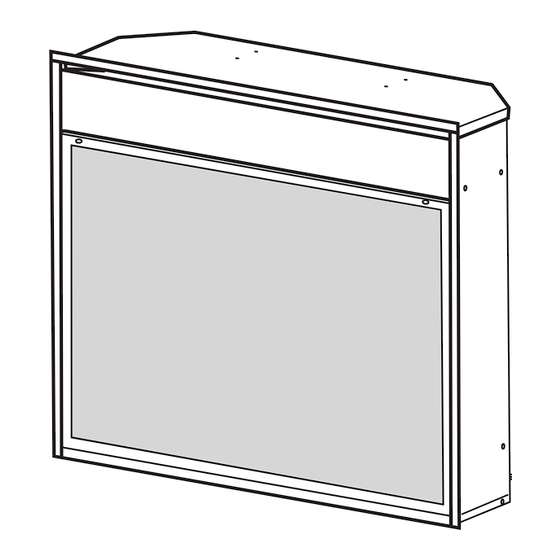

Electric Fireplace
Model:
Installation Instructions and
Homeowners Manual
HEF22
HEF26
HEF33
10008388 8/06 Rev. 5
Advertisement
Table of Contents
Related Manuals for CFM HEF26
Summary of Contents for CFM HEF26
-
Page 1: For Your Safety
GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER Electric Fireplace Model: HEF22 HEF26 HEF33 Installation Instructions and Homeowners Manual 10008388 8/06 Rev. 5... - Page 2 STOP! NO NEED TO RETURN TO THE STORE Questions with the Assembly? Require Parts Information? Product Under Manufacturer’s Warranty? Call Toll-Free US: 1-800-668-5323 Canada: 1-800-668-5323 Monday to Friday 9:00 A.M. to 5:00 P.M. E.S.T. TO HELP US HELP YOU Fill in the Information Below: Retain This Owner’s Manual and Proof of Purchase For Future Reference Date of Purchase Model Number...
-
Page 3: Table Of Contents
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS Thank you and congratulations on your purchase of a CFM Corporation electric fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. -
Page 4: Installation Instructions
1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and cur- tains at least 3 feet (914mm) from the front of this appli- ance. -
Page 5: Fireplace Dimensions
Fireplace Dimensions 1” (25 mm) HEF26/33 1/2” (13 mm) HEF22 Ref. HEF22 23 ” (597 mm) 20 ” (527 mm) 22 ” (571 mm) 20” (508 mm) 11 ” (292 mm) 22” (559 mm) 21 ” (540 mm) 15” (381 mm) 33 ”... -
Page 6: Electrical Connection
Electrical Connection A 15 amp, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. - Page 7 8. Using a slotted screwdriver, remove the 7/8" (22mm) diameter knockout from the right hand side of the cabinet above where the strain relief was located. 9. Route the electrical cable from the breaker/fuse panel through the 7/8" (22mm) diameter hole and secure to the cabinet using an approved clamp.
-
Page 8: Service Instructions
WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electrical shock or personal injury. Remove Front Cover Access to heater/fan 1. Turn off power to the unit. 2. Let fireplace cool if it has been operating. 3. -
Page 9: Replacing The Light Bulbs
Replacing the Light Bulbs Depending on your model, the fireplace uses two (2) or three (3) clear 120 Volt, 60 Watt, E-12 socket base light bulbs (small base, chandelier candle type) located under the ember bed. Units with overhead lights (Fig. 9) use two (2) clear 120 Volt, 5 Watt, E-12 socket base light bulbs (small base, chandelier candle type) located above the logs. -
Page 10: Maintenance Of Motors
Maintenance of Motors The motors used on the fan and the drum assembly are prelubricated for extended bearing life and require no further lubrication. However, periodic cleaning/vac- uuming of the fan/heater and around the air intake, located under the top shelf (Fig. 4), is recommended. Make sure the power is turned OFF before proceeding. -
Page 11: Operating Instructions
Figures 10, 11 & 12, respectively. Fig. 10 HEF22 touchpad buttons. Fig. 11 HEF26 and HEF33 touchpad buttons. (Button 8 does not apply to HEF22.) The fireplace features conveniently separate controls for flame effect and for heater control. -
Page 12: Heater Control
Heater Control Your fireplace features a heater with a built-in thermo- stat and a variable temperature setting that can be controlled either by remote control or at the touchpad control panel. By depressing button 4 once, the heater will be activated and the LED visual indicator B lights up to indicate the temperature setting of the heater between the lowest (lowest light bar) and highest (highest light bar). -
Page 13: Replacement Parts
216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS) CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. HEF22/26/33 Electric Fireplace Ref. Description 1. Logset 2. Ember Lava Rock 3. - Page 14 NOTE: Replacement DC Motor is dependant on the fireplace serial number. If last 11 digits of serial number are: Less than 06270000000 - 10001978 Greater than 06270000000 - 10009621 (continued) HEF22 HEF26 See Note See Note 10008175 10008721 10008230 10007859...
-
Page 15: Warranty
Northern Flame product. 9. The warranties as outlined within this document do not apply to non-CFM Corporation accessories used in con- junction with the installation of this product. This warranty is void if:... - Page 16 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
