INSTALLER / CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, AN ELECTRICAL SHOCK
OR FIRE MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
Service must be performed by a qual-
ified service agency.
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.
C
US
www.cfmcorp.com

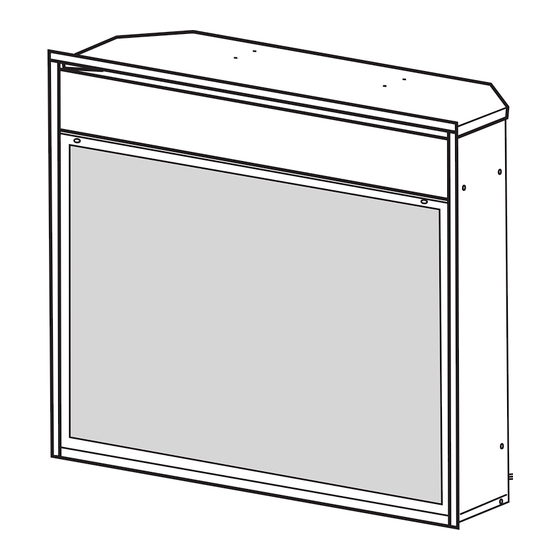

Electric Fireplace
Model:
Installation Instructions and
CFM Corporation
2695 Meadowvale Boulevard
Mississauga, Ontario L5N 8A3 Canada
(800) 668-5323
HEF22
HEF26
HEF33
Homeowners Manual
Advertisement
Table of Contents
Related Manuals for CFM HEF22
Summary of Contents for CFM HEF22
-
Page 1: For Your Safety
GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. Mississauga, Ontario L5N 8A3 Canada www.cfmcorp.com Electric Fireplace Model: Installation Instructions and Homeowners Manual CFM Corporation 2695 Meadowvale Boulevard (800) 668-5323 HEF22 HEF26 HEF33... -
Page 2: Table Of Contents
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS Thank you and congratulations on your purchase of a CFM Home Products electric fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. Installation Instructions General . -
Page 3: Installation Instructions
IMPORTANT INSTRUCTIONS 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (914mm) from the front of this appliance. -
Page 4: Fireplace Dimensions
Fireplace Dimensions 1” (25 mm) HEF26/33 1/2” (13 mm) HEF22 Ref. HEF22 23 ” (597 mm) 20 ” (527 mm) 22 ” (571 mm) 20” (508 mm) 11 ” (292 mm) 22” (559 mm) 21 ” (540 mm) 15” (381 mm) 33 ”... -
Page 5: Electrical Connection
This instruction is intended as a guide for replacing the power cord supplied with Models HEF22/26/33 electric fireplace with direct (hard) wiring. NOTE: When direct wiring this appliance, it must be connected to a 15 Amp dedicated circuit breaker or fuse in the electrical panel of the dwelling. - Page 6 8. Using a slotted screwdriver, remove the 7/8" (22mm) diameter knockout from the right hand side of the cabinet above where the strain relief was located. 9. Route the electrical cable from the breaker/fuse panel through the 7/8" (22mm) diameter hole and secure to the cabinet using an approved clamp.
-
Page 7: Service Instructions
WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electrical shock or personal injury. Removing Front Cover Access to heater/fan 1. Turn off power to the unit. 2. Let fireplace cool if it has been operating. 3. -
Page 8: Replacing The Light Bulbs
3. Remove fixed front panel, or open doors (depend- ing on model). 4. Locate two (2) screws that hold the refractory (brick patterned) bracket together with the ember bed. (Fig. 6) (Not applicable to HEF22) Remove Screws Fig. 6 Remove screws that hold refractory bracket with ember bed. -
Page 9: Maintenance Of Motors
2. Circuit Board 3. Motor DC 4. Light Socket w/Wiring Assy 5. Light Bulb BLUE 6. Wire Clip 7. Bushing Snap 8. Strain Relief 9. Power Cord 16/3 GROUND GREEN LINE NEUTRAL NOTE: HEF22/26 Units have only 2 light bulbs 10008388... -
Page 10: Operating Instructions
Operating Instructions Fig. 12 Remote control. NOTE: The overhead light function on the remote shown does not apply to HEF22. • As a visual effect - only flame effect is on, the heater is off. We recommend this mode for warm weather application, when you want the ambiance of a fire, without any heat output. -
Page 11: Heater Control
If the flame is switched off, the overhead lights will go off but will come back on when the flame is switched back on. This feature is not available on the HEF22. 10008388... -
Page 12: Replacement Parts
216mm [8 1/2"] (DISTANCE BETWEEN TWO SOCKETS) CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. HEF22/26/33 Electric Fireplace Ref. Description 1. Logset 2. Ember Lava Rock 3. - Page 13 HEF22/26/33 Electric Fireplace Ref. Description 6. DC Motor 7a. Glass Door Assembly 7b. Glass Door Assembly 8. Glass Operable Door Assembly 9. Glass Arch Door Assembly Left 10. Glass Arch Door Assembly Right 11. Heater/Fan Assembly 12. Socket w/Wire Assembly 13.
-
Page 14: Warranty
1) Contact your supplier. Make sure you have your warranty, your sales receipt, and the model/serial number of your CFM Home Products product. 2) DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF. CFM Corporation 2695 Meadowvale Boulevard Mississauga, Ontario L5N 8A3 Canada (800) 668-5323...
