Montigo Homefire Plus MD38-BV Installation Operation & Maintenance Data

Hide thumbs Also See for Homefire Plus MD38-BV:
Table of Contents

Advertisement

Quick Links

Download this manual
Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com.
f i r e - p a r t s . c o m
Warning:
Improper installation, adjustment,
alteration, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
Installation
Operation &
Maintenance
MD38-BV
Homefire
Modular
Gas Fireplace
Check local codes and
n
read all instructions
prior to installation.
Leave this manual with
n
the owner.

Advertisement

Table of Contents
loading

Related Manuals for Montigo Homefire Plus MD38-BV

Summary of Contents for Montigo Homefire Plus MD38-BV

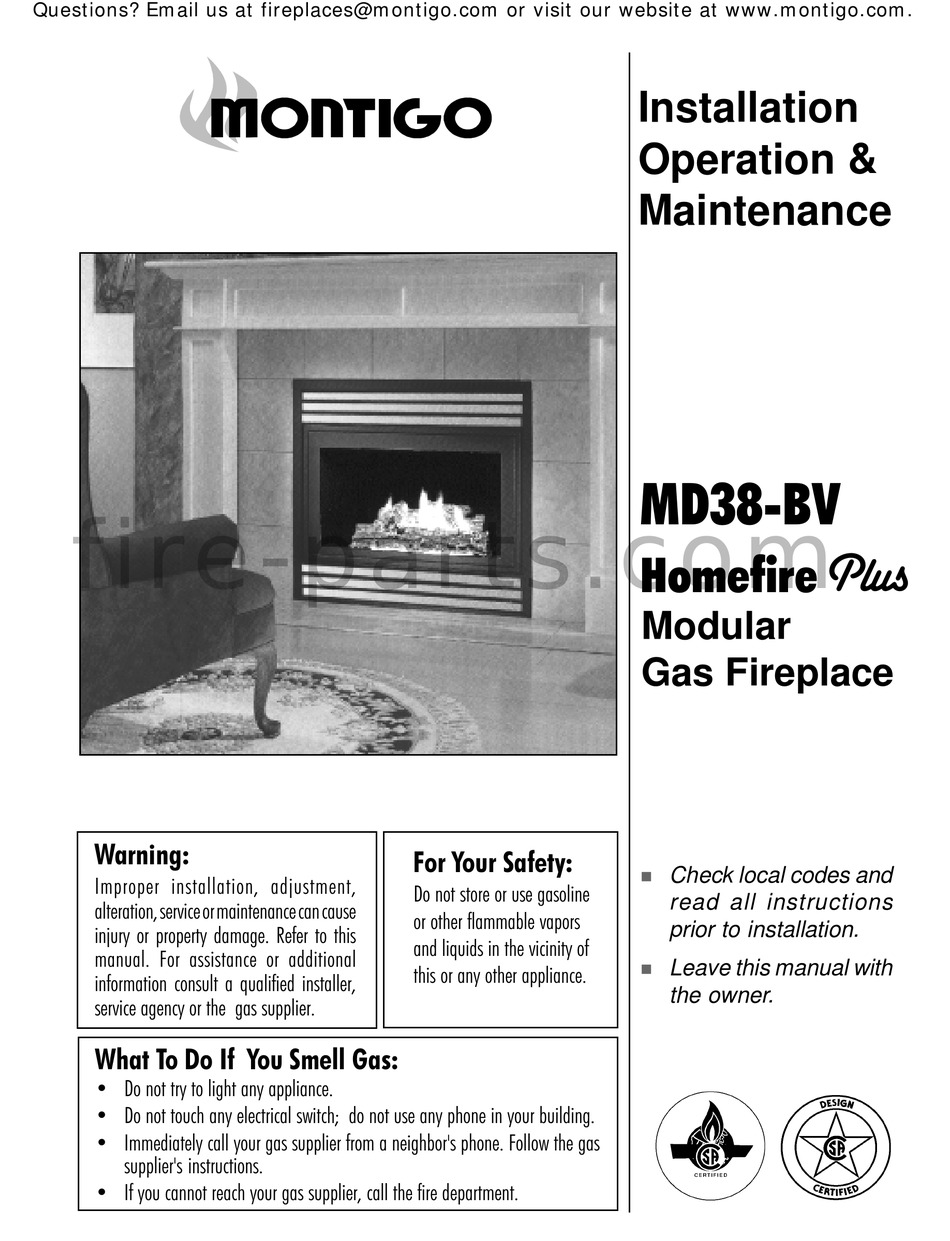

  • Page 1 Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com. Installation Operation & Maintenance MD38-BV f i r e - p a r t s . c o m Homefire Modular Gas Fireplace Warning: For Your Safety: Check local codes and...

  • Page 2: Table Of Contents

    Removing and Installing the Insert ........ 7 Warranty and Installation Information: Removing and Installing the Door ......... 7 The Montigo warranty will be voided by, and Montigo disclaims any Operation ................8 - 10 responsibility for, the following actions: Maintenance ..............10 - 11 Modification of the fireplace and/or components including Direct- f i r e - p a r t s .

  • Page 3: Installation

    MD38-BV Homefire Installation Installing The Fireplace Shell The fireplace may be installed in any location that maintains proper Unprotected combustible walls which are perpendicular to the clearances to air conditioning ducts, electrical wiring and plumbing. fireplace opening, must not project beyond the shaded area shown in Safety, as well as efficiency of operation, must be considered when Figure 5b.

  • Page 4: Installing The Gasline

    MD38-BV Homefire Installation Installing The Gas Line B-Vent Installation The gas line must be installed before finishing the MD38-BV The MD38-BV is certified for use with standard 4" B-Vent and Fireplace. Natural Gas requires a minimum inlet gas supply requires no B-Vent appliance connector. Simply attach the B-Vent to pressure of 5.5"...

  • Page 5: Facing

    MD38-BV Homefire Installation Finishing Around the Fireplace Combustible mantels and mouldings may be safely installed over the Painting: top and on the front of the fireplace provided that they do not project Special care is recommended by the Master Painters and Decorators beyond shaded area shown in Figure 5a.

  • Page 6: Installing The Logset

    MD38-BV Homefire Installation Wiring for the optional Fan Kit Place the Front log onto the front log rest as shown in figure 8a. Centre the log from side to side, and push it against the back of All 38 Series Modular fireplaces may be equipped with optional fan or the log rest.

  • Page 7: Removing And Installing The Insert

    MD38-BV Homefire Installation Removing and Installing Removing and Installing the Insert the Door You may remove the insert to protect it from theft and damage Removing the door surround: during construction. The door surround is held in place by two metal clips at the top, and 1.
  • Page 8 MD38-BV Homefire Operation - Model MD38-BV MD38-BV with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.
  • Page 9 MD38-BV Homefire Operation - Model MD38-BV-I MD38-BV-I with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A.

  • Page 10: Operation

    MD38-BV Homefire Operation Maintenance Lighting Instructions CAUTIONS Fireplace gas control must be in the “OFF” position and pilot See pages 8 and 9. and main burners extinguished when cleaning appliance with a vacuum. Burner Adjustment Doors and logs can get very hot. Handle only when cool. The MD38-BV fireplace is equipped with an adjustable burner, allowing you to raise or lower the flames.
  • Page 11 MD38-BV Homefire Maintenance Troubleshooting Gas Control Valve MD38-BV-I HONEYWELL SV 9500 /SV9600 Power Generator Troubleshooting Sequence Pilot Adjustment Screw NOTE: Before Troubleshooting, Familiarize Yourself With Wall Switch The Startup And Checkout Procedure. START INSET CHECK: · Turn Gas Supply off ·...

  • Page 12: Warranty

    The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you.

  • Page 13: Accessories

    MD38-BV Homefire Appendix A - Accessories Available Options and Accessories: 1. Add-on Bay Window 2. Hand-Held Remote Control 3. Variable Speed Blower Kit 4. 4-Fan Kit 5. 4-Piece Picture Frame Surround (PFS) 6. 3-Piece Picture Frame Surround (PFO) 7. Door Cover, Square (DF0) 8.
  • Page 14 - p a r t s . c o m XG0309 Rev. 2 - 09/00 Montigo Del Ray Corp. Canadian Heating Products Inc. Langley, BC V4W 4A1 Ferndale, WA 98248...
