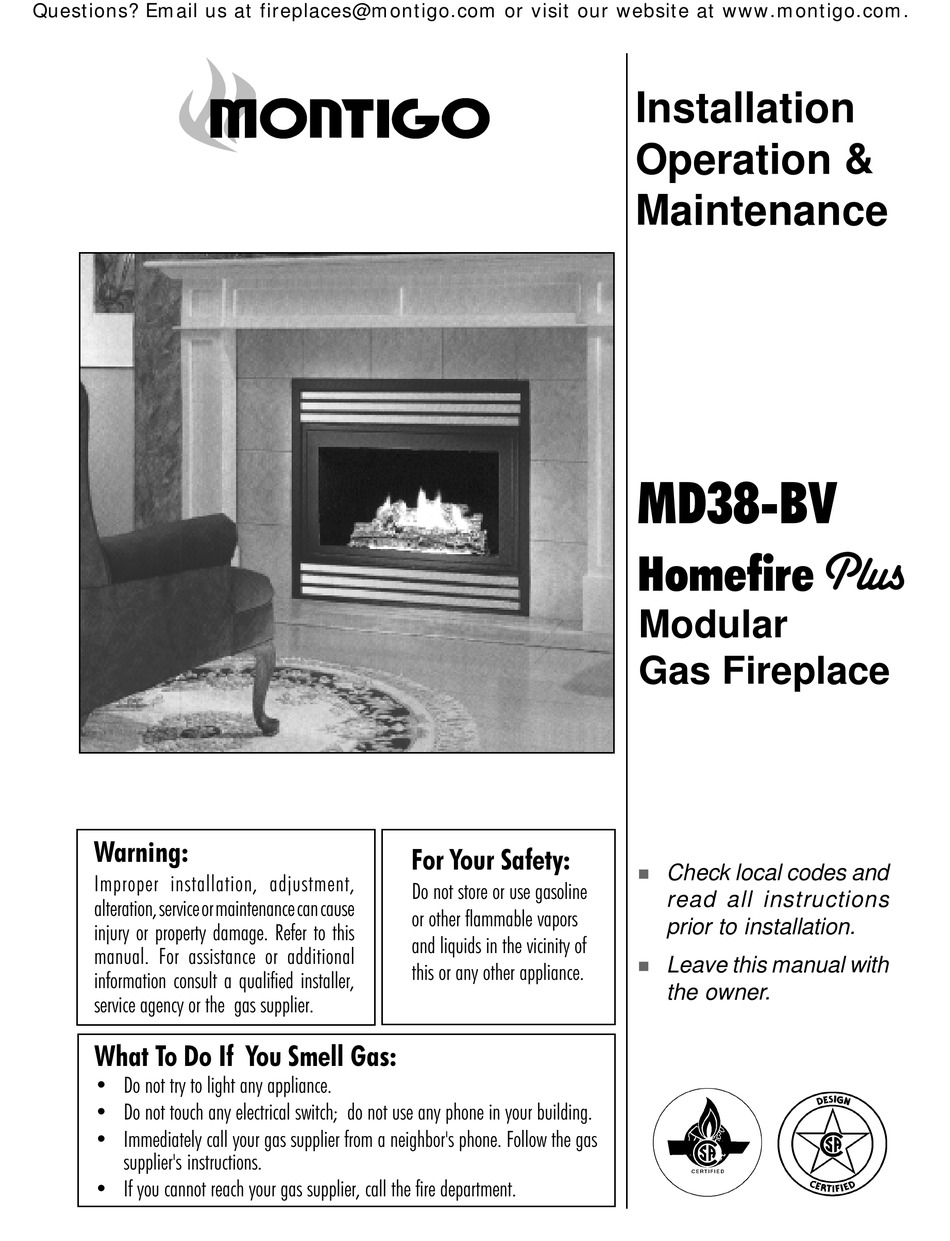

- Page 1 Questions? Email us at fireplaces@montigo.com or visit our website at www.montigo.com. Installation Operation & Maintenance Modular Gas Fireplace Check local codes and read all instructions prior to installation. Leave this manual with the owner.
- Page 2 MD38-BV Homefire Introduction Table Of Contents CAUTIONS Page 2...
-
Page 3: Installation
MD38-BV Homefire Installation Installing The Fireplace Shell 14 ¾ 8 ½ C Ø4" B-Vent 14 ¾ 41 1/4 28 ¾ 15 1/2 4 ¾ 37 3/4 14 ½ 33 ½ 0" clearance to corners only 4 ¾ 24 1/8 43 7/8 Top* 16"... -
Page 4: Installing The Gas Line
MD38-BV Homefire Installation Installing The Gas Line B-Vent Installation 4" B-Vent Gasline access 6 x 2 1/2" 2 1/2 Note: appliance connection valve and valve train Installing The Remote Switch Page 4... -
Page 5: Finishing Around The Fireplace
MD38-BV Homefire Installation Finishing Around the Fireplace Alkyd sealer Sheetrock/ Drywall Header Combustible construction allowed in shaded area. Combustible Facing Wiring MD38-BV-I Top of fireplace Honeywell (Q3450) Pilot Assembly Pilot Electrical Harness Connector Honeywell Gas Control (SV9501M) Gas Control Junction Box Cover Connector Fuse Junction Box... -
Page 6: Installing The Log Set
MD38-BV Homefire Installation optional L1-WH L2-BLK Quick Connect plug to motor 115/1/60 Supply L1 L2 Installing the Log Set Page 6... -
Page 7: Removing And Installing
MD38-BV Homefire Installation Removing and Installing Removing and Installing the Insert the Door Slot 'A' Tab 'B' Door surround Glass door and frame Magnet Mounting Bracket Pull bottom of door surround outwards and upwards. Front INSET 2 INSET 1 Slot High temp. -
Page 8: Lighting Instructions
MD38-BV Homefire Operation - Model MD38-BV MD38-BV with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Lighting Instructions: Gas Control Knob NOTE: Knob cannot be turned from... - Page 9 MD38-BV Homefire Operation - Model MD38-BV-I MD38-BV-I with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Lighting Instructions: Inlet Gas Control Switch...
-
Page 10: Operation
MD38-BV Homefire Operation Maintenance Lighting Instructions CAUTIONS Burner Adjustment General 'Hi-Lo' Adjustment Knob Gas Control Knob Cleaning (Shown in "Pilot" postion.) WARNING: Page 10... -
Page 11: Gas Control Valve
MD38-BV Homefire Maintenance Troubleshooting Gas Control Valve MD38-BV-I Power Generator Pilot Adjustment Screw Before Troubleshooting, Familiarize Yourself With Wall Switch The Startup And Checkout Procedure. Inlet Pressure Manifold Pressure Test Connection Sit Nova 820 Pilot Burner Adjustment Troubleshooting MD38-BV Page 11... -
Page 12: Warranty
Other Rights Other Rights Other Rights Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Page 12... -
Page 13: Appendix A - Accessories
MD38-BV Homefire Appendix A - Accessories Page 13... - Page 14 XG0309 Rev. 2 - 09/00 Montigo Del Ray Corp. Canadian Heating Products Inc.
